0015445820
| Manufacturer | |
| Description | Conn Socket Strip RCP 20 POS 2.54mm Solder ST Thru-Hole Tray RCPT VERT GOLD 20CKT T/H |
| Category |
Business
| Standard Package | 1,728 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 15 mohm | Current Rating (Max) | 2.5/Contact A |
| Voltage - Input (Min) | 250VAC | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Black | Depth | 5.05 mm |
| Pitch | 0.100" (2.54mm) | Height | 8.64 mm |
| Packaging | Tray | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Form | Female Socket |
| Contact Type | Female Socket | Lead Spacing | 0.100" (2.54mm) |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Receptacle | Contact Finish | Gold |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 50.77 mm | Number of Contacts | 20 |
| Number of Positions | 20 | Contact Finish Thickness | 15µin (0.38µm) |
| Number of Positions/Bay/Row | All | ||
Product Info
| Type | Socket Strip | Gender | RCP |
| Series | C-Grid® SL™ 71850 | Output Configuration | Through Hole |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0015910200
molex
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST SMD Tube CONN HEADER 20POS .100" STR 15AU

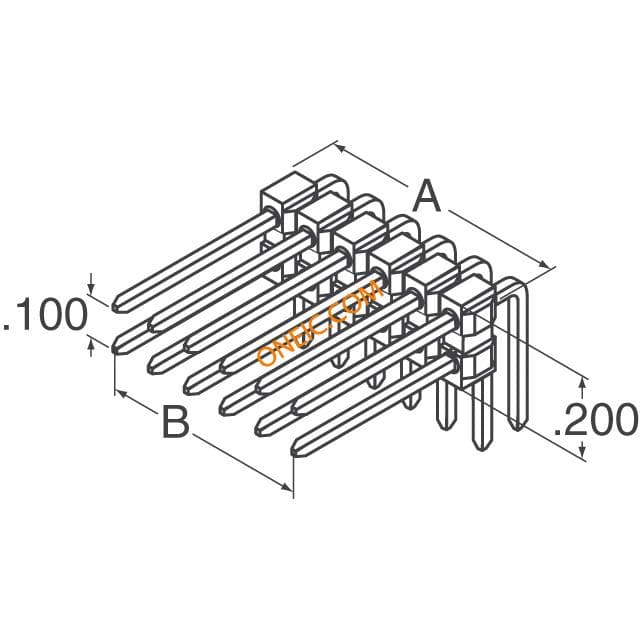

0717640020
molex
Conn Unshrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR DUAL 20POS .100 R/A TIN
70247-2052
molex
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 20POS .100 R/A 30AU Headers & Wire Housings CGrid Hdr Shrd R.A / /OStdf .76AuLF 20Ckt HEADER, 20WAY
10-89-1206
Molex
Headers & Wire Housings 2x10 R/A HDR 15u Au CONN HEADER 20POS .100 R/A GOLD
10-88-1201
Molex
Headers & Wire Housings USE 538-10-89-7201 CONN HEADER 20POS .100 VERT TIN Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Bag
15-42-6020
Molex
Headers & Wire Housings Obsolete CONN HEADER 20POS .100 VERT TIN
10-89-2206
Molex
Headers & Wire Housings Obsolete CONN HEADER 20POS .100 R/A GOLD
10-96-7205
Molex
Headers & Wire Housings Obsolete CONN HEADER 20POS .100 VERT GOLD Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Bag
70247-2002
Molex
Headers & Wire Housings C-GRID 20 CKT SHROUD CONN HEADER 20POS .100 R/A GOLD
15-29-6020
Molex
Headers & Wire Housings Obsolete CONN HEADER 20POS .100 VERT GOLD
0010897201
Molex
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 20POS .100 SRT TIN
70246-2002
molex
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 20POS .100 VERT GOLD Headers & Wire Housings 20CKT SHRD HDR
10-89-2201
Molex Connector Corporation
CONN HEADER 20POS .100 VERT GOLD Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Bag
10-88-1205
Molex Connector Corporation
CONN HEADER 20POS .100 R/A TIN
70246-2001
Molex Connector Corporation
CONN HEADER 20POS .100 VERT GOLD Molex 70246 Series 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 2.5A Headers & Wire Housings 20CKT SHRD HDR Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Tray PCB header 2 x 10P, 70246-2001, Molex Molex C-Grid 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 2.5A , 通孔
70246-2022
Molex Connector Corporation
CONN HEADER 20POS .100 VERT GOLD

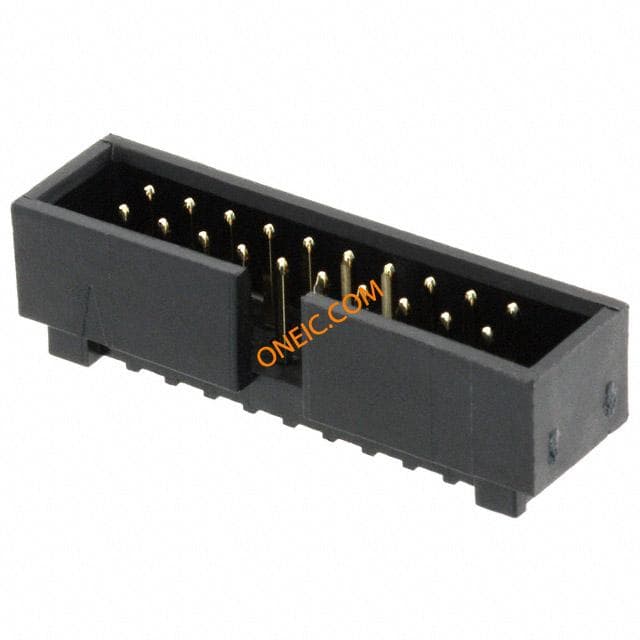

0702462004
Molex Inc
2.54MM CGRID HDR GOLD 20CKT Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Tray

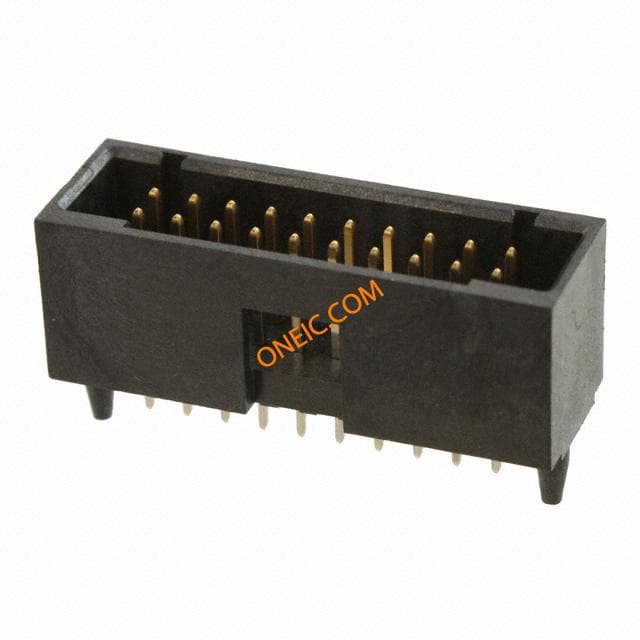

15-47-7620
