43030-0010
| Manufacturer | |
| Description | Contact F Crimp ST Cable Mount Bag Female crimp contact,26-30 awg Headers & Wire Housings FEMALE TERM 26-30 Contact SKT Crimp ST Cable Mount Bag CONTACT, SOCKET, 30-26AWG CRIMP SOCKET, 26AWG, PK100 Micro-Fit 3.0 Crimp Term., Socket, w/Plated Tin/Brass Alloy Contact, 26-30 AWG, B Crimp socket Female 30...26 AWG, 43030-0010, Molex Molex MICRO-FIT 3.0 系列 母 压接接线端子, 压接, 镀锡镀镍触点 |
| Category |
Business
| Tradename | Micro-Fit 3.0 | Part # Aliases | 0430300010 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 12000 | ||
Compliance
| RoHS | Compliant | Tariff No | 85366990 |
Electrical
| Voltage Rating | 250 V | Contact Resistance | 10mΩ |
| Current Rating (Max) | 3 A | ||
Mechanical
| Weight | 0.024 | Wire Gauge | 30-26 |
| Termination | Crimp | Contact Size | :26 |
| Contact Type | Signal | Connector Type | Connector Headers and PCB Receptacles |
| Contact Finish | Tin Over Nickel | Contact Material | Phosphor Bronze |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Contact Termination | :Crimp | Wire Gauge or Range - AWG | :30AWG |
| Wire Gauge or Range - mm2 | :0.12m² | Diameter - Outside, Non-Expanded | :1.52mm |
Product Info
| Gender | F | Series | 43030 |
| CAD Drawing | 3D CAD Model | Product Type | Contacts |
| For Use With/Related Products | :Micro-Fit 3.0 Connectors | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts

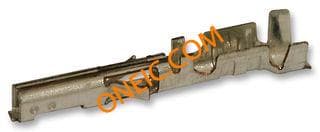

43030-0004
