43025-2200
| Manufacturer | |
| Description | Conn Housing RCP 22 POS 3mm Crimp ST Bag 2 x 11 way receptacle Micro-Fit Headers & Wire Housings 22 CKT RECEPTACLE RECEPTACLE, 22WAY .188 micro-fit 3.0 receptacle housing, dual row, 22 circuits Female contact housing dual row Pitch3 mm Poles 2 x 11 Micro-Fit, 43025-2200, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 22 路 直 母 压接连接器外壳 |
| Category |
Business
| Tradename | Micro-Fit 3.0 | Part # Aliases | 0430252200 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | :250V | Voltage - Working | :250V |
| Contact Resistance | :10mohm | Dielectric Strength | :1500V/m |
| Current Rating (Max) | 5 A | ||
Mechanical
| Depth | 14mm | Pitch | 3mm |
| Width | 11.56mm | Length | 33.85mm |
| Weight | 0.002 | Material | :Polyester |
| Mounting Type | Straight | Mounting Style | Wire |
| Number of Rows | 2 | Housing Material | PET |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 22 | Number of Positions | :22 |
Product Info
| Gender | Female | Series | 43025 |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
| For Use With/Related Products | Micro-Fit 3.0 Receptacle | ||
Environmental
| Operating Temperature | :105°C | ||
Similar Parts
46235-0001
molex
MICRO-FIT FEM. CRP, LOW FORCE,20-24,15AU Headers & Wire Housings 20-24FEM 15AU LW FRC Reel of 12000 CRIMP SOCKET, MF3.0 RMF, 24-20 AWG CRIMP, RECEPTACLE, 24-20AWG, REEL Headers & Wire Housings; 20-24 FEM; 15AU; Low Force Molex Micro-Fit RMF 系列 母 压接接线端子, 压接, 镀金触点
43030-0010
molex
Contact F Crimp ST Cable Mount Bag Female crimp contact,26-30 awg Headers & Wire Housings FEMALE TERM 26-30 Contact SKT Crimp ST Cable Mount Bag CONTACT, SOCKET, 30-26AWG CRIMP SOCKET, 26AWG, PK100 Micro-Fit 3.0 Crimp Term., Socket, w/Plated Tin/Brass Alloy Contact, 26-30 AWG, B Crimp socket Female 30...26 AWG, 43030-0010, Molex Molex MICRO-FIT 3.0 系列 母 压接接线端子, 压接, 镀锡镀镍触点
43030-0007
molex
Contact F Crimp ST Cable Mount Bag Female crimp contact,20-24 awg Headers & Wire Housings FEMALE TERM 20-24 Contact SKT Crimp ST Cable Mount Bag CRIMP SOCKET, PK100,20AWG CONTACT, CRIMP, SOCKET, 24-20AWG Micro-Fit 3.0 Crimp Terminal, Socket, with Tin (Sn) Plated Tin/Brass Alloy Contac Crimp socket Female 24...20 AWG, 43030-0007, Molex Molex MICRO-FIT 3.0 系列 母 压接接线端子, 压接, 镀锡镀镍触点

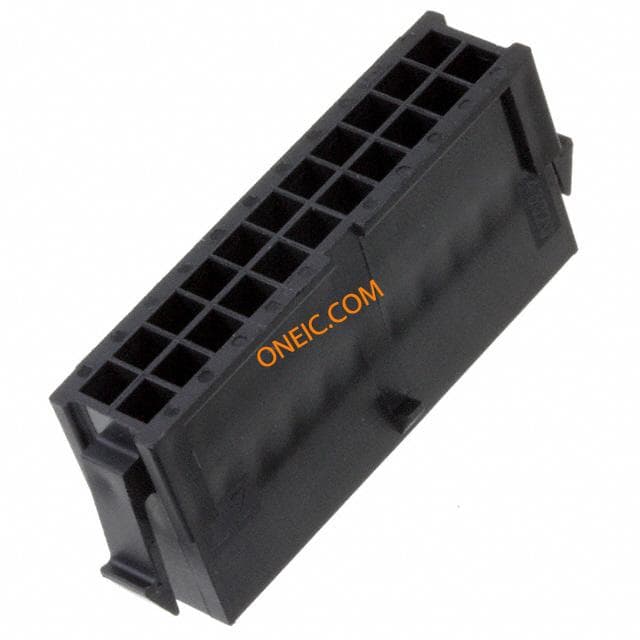

43020-2200
