43020-2200
| Manufacturer | |
| Description | CONN PLUG 22POS 3MM DUAL ROW 2 x 11 way panel mount plug Micro-Fit Headers & Wire Housings 3MM MICRO-FIT 22 CKT Dual Row Conn Housing PL 22 POS 3mm Crimp ST Bag Male contact housing dual row Pitch3 mm Poles 2 x 11 Micro-Fit, 43020-2200, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 22 路 直 公 面板安装 压接连接器外壳 |
| Category |
Business
| Tradename | Micro-Fit 3.0 | Part # Aliases | 0430202200 |
| Product Category | Headers & Wire Housings | Standard Package | 10 |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 350 V ac/dc | Number of Poles | 2 x 11 |
| Current Rating (Max) | 5 A | Connector - Voltage Input | Plug |
Mechanical
| Color | Black | Depth | 24.77mm |
| Pitch | 0.118" (3.00mm) | Width | 6.85mm |
| Length | 33.85mm | Packaging | Bulk |
| Orientation | 直 | Row Spacing | 0.118" (3.00mm) |
| Contact Form | Male Pin | Contact Type | Male Pin |
| Lead Spacing | 0.118" (3.00mm) | Mounting Type | Panel Mount, Snap-In |
| Connector Type | Plug | Fastening Type | Locking Ramp |
| Mounting Style | Panel | Number of Rows | 2 |
| Housing Material | Polyester | Color - Connectors | Black |
| Number of Contacts | 22 | Contact Termination | Crimp |
| Number of Positions | 22 | ||
Product Info
| Note | Contacts Not Provided | Type | Plug Housing |
| Series | 43020 | CAD Drawing | 3D CAD Model |
| Product Type | Wire Housings | Connection Method | Wire-Wire |
| Base Product Number | 43020 | Output Configuration | Panel Mount, Snap-In |
| Application Specifics | Power, Wire-to-Wire | For Use With/Related Products | 压接接线端子 |
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
0430310012
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 26-30AWG GOLD
0430310002
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; crimped
0430310007
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG TIN Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; tinned
0430310011
Molex, LLC
. 0430310011 - Pin Contact Gold 26-30 AWG Crimp Power from Molex. from now!
0430310001
Molex, LLC
. 0430310001 - Pin Contact Tin 20-24 AWG Crimp Power from Molex. from now!
0430310008
Molex, LLC
. 0430310008 - Pin Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0430310009
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Bag
43031-0010
molex
Contact M Crimp ST Cable Mount Bag Male crimp contact,26-30 awg Headers & Wire Housings MALE 26-30 AWG BULK tin Contact PIN Crimp ST Cable Mount Bag CONTACT, PIN, 26AWG TO 30AWG, CRIMP CONTACT, PIN, 30-26AWG, CRIMP Micro-Fit 3.0 Crimp Terminal, Pin, w/Tin/Brass alloy plate contact, 26-30 AWG Crimp pin Male 30...26 AWG, 43031-0010, Molex Molex MICRO-FIT 3.0 系列 公 压接接线端子, 压接, 镀锡触点
0430310003
Molex, LLC
. 0430310003 - Pin Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0430310010
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 26-30AWG TIN

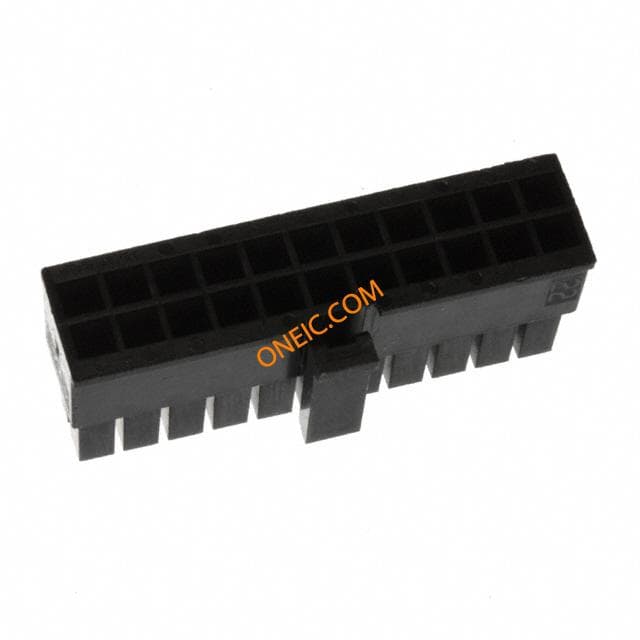

0430252200
