点击放大查看
43025-0400
| Manufacturer | |
| Description | 4 way dual row receptacle,5A Headers & Wire Housings RECEPTACLE 4P DUAL ROW Conn Housing RCP 4 POS 3mm Crimp ST Cable Mount Bag RECEPTACLE, FREE, 4WAY Receptacle; 4; Dual; 0.118; Female; Polyester; Black; UL 94V-0 Female contact housing dual row Pitch3 mm Poles 2 x 2 Micro-Fit, 43025-0400, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 4 路 直 母 电缆安装 压接连接器外壳 |
| Category |
Business
| Tradename | Micro-Fit 3.0 | Part # Aliases | 0430250400 |
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 2500 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 600 V | Voltage - Working | :250V |
| Contact Resistance | :10mohm | Dielectric Strength | :1500V/m |
| Current Rating (Max) | 5 A | ||
Mechanical
| Depth | 14mm | Pitch | 3mm |
| Width | 11.56mm | Length | 6.85mm |
| Weight | 0.052 | Material | :Polyester |
| Mounting Type | Straight | Mounting Style | Wire |
| Number of Rows | 2 | Housing Material | PET |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 4 | Number of Positions | :4 |
Product Info
| Gender | Female | Series | 43025 |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
| For Use With/Related Products | Micro-Fit 3.0 Receptacle | ||
Documents & Media
Similar Parts
43045-0419
molex
Conn Wire to Board HDR 4 POS 3mm Solder ST SMD T/R Molex 43045 Series 3mm Pitch 4 Way 2 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings 4 CKT VERT SMT HDR Conn Wire to Board HDR 4 POS 3mm Solder ST SMD Embossed T/R HEADER, 3MM, 4WAY MICRO FIT 3.0 V SMT/NAIL DR 15AU 4CKT MICROFIT3.0VSMT/NAILDR15AU4CKT Molex MICRO-FIT 3.0 系列 3mm节距 4路 (2排) 直 PCB 针座, 焊接端接, 5A , 表面安装
43030-0010
molex
Contact F Crimp ST Cable Mount Bag Female crimp contact,26-30 awg Headers & Wire Housings FEMALE TERM 26-30 Contact SKT Crimp ST Cable Mount Bag CONTACT, SOCKET, 30-26AWG CRIMP SOCKET, 26AWG, PK100 Micro-Fit 3.0 Crimp Term., Socket, w/Plated Tin/Brass Alloy Contact, 26-30 AWG, B Crimp socket Female 30...26 AWG, 43030-0010, Molex Molex MICRO-FIT 3.0 系列 母 压接接线端子, 压接, 镀锡镀镍触点
43030-0003
molex
Contact SKT Crimp ST Cable Mount Reel Crimp terminal,MicroFit,female,20-24awg Headers & Wire Housings MF 3.0 TERM 20-24G F Reel of 12000 CONTACT, SOCKET, 24-20 AWG, CRIMP Connector Contact,SKT,CRIMP Terminal CRIMP, RECEPTACLE, 24-20AWG, REEL Micro-Fit 3.0 Connectors 20-24 TERMINALREEL 12000 Micro-Fit3.0Connectors20-24TERMINALREEL12000 Crimp socket, reel Female 24...20 AWG, 43030-0003, Molex Molex MICRO-FIT 3.0 系列 母 压接接线端子, 压接, 镀金触点
43030-0007
molex
Contact F Crimp ST Cable Mount Bag Female crimp contact,20-24 awg Headers & Wire Housings FEMALE TERM 20-24 Contact SKT Crimp ST Cable Mount Bag CRIMP SOCKET, PK100,20AWG CONTACT, CRIMP, SOCKET, 24-20AWG Micro-Fit 3.0 Crimp Terminal, Socket, with Tin (Sn) Plated Tin/Brass Alloy Contac Crimp socket Female 24...20 AWG, 43030-0007, Molex Molex MICRO-FIT 3.0 系列 母 压接接线端子, 压接, 镀锡镀镍触点
430450409
molex
Conn Wire to Board HDR 4 POS 3mm Solder RA SMD T/R HEADER, RIGHT ANGLE, SMD, DUAL ROW, 4WAY 04P MICRO-FIT HEAD SMT W/NAILS
430450418
molex
Conn Wire to Board HDR 4 POS 3mm Solder ST SMD T/R 04P HEADER SMT W FITTING NAILS Conn Wire to Board HDR 4 POS 3mm Solder ST SMD Embossed T/R HEADER, SMT, VERTICAL, DUAL ROW, 4 WAY
43030-0006
molex
Contact SKT Crimp ST Cable Mount Reel Crimp,fem,Au plated,phos,26-30 AWG,reel Headers & Wire Housings MF 3.0 TERM 26-30G F Reel of 12000 TERMINAL, 26-30AWG, MICRO-FIT 3.0 CONTACT, CRIMP, PIN, 30-26AWG, REEL Molex MICRO-FIT 3.0 系列 母 压接接线端子, 压接, 镀金镀镍触点
43045-0412
Molex Connector Corporation
CONN HEADER 4POS 3MM VERT TIN Headers & Wire Housings 4 CKT VERT HEADER Conn Power HDR 4 POS 3mm Solder ST Thru-Hole 4 Terminal 1 Port Tray HEADER, VERTICAL, 4WAY PLUG & SOCKET CONNECTOR, HEADER, 4POS, 3MM Microfit 3.0 Vert Thrhole DR Hdr Tin4Ckt Pin header dual row Pitch3 mm Poles 2 x 2 Micro-Fit, 43045-0412, Molex Molex MICRO-FIT 3.0 系列 3mm节距 4路 (2排) 直 PCB 针座, 焊接端接, 5A , 通孔

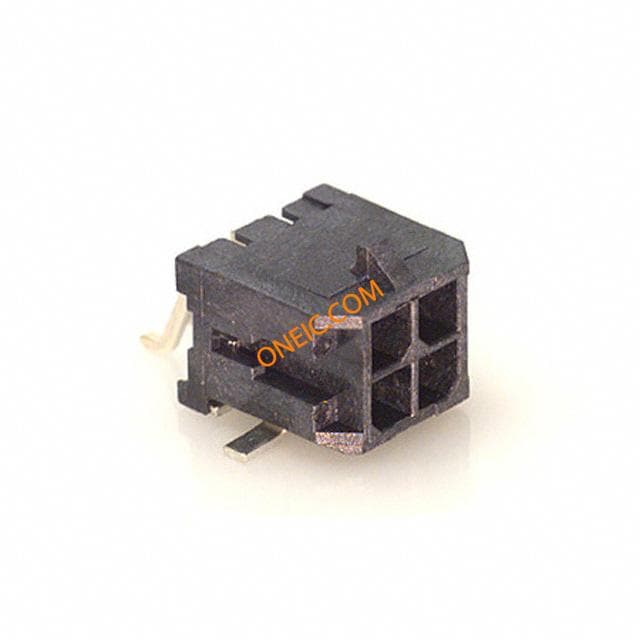

43045-0411
