0901230102
| Manufacturer | |
| Description | Conn Housing RCP 2 POS 2.54mm Crimp ST Bag CONN HOUSING 2POS .100" SINGLE Plug; wire-board; C-Grid III; female; PIN:2; w/o terminals; 2.54mm |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94V-1 | ||
Electrical
| Voltage - Rated | 350V AC | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Black | Depth | 15.24 mm |
| Pitch | 2.54 mm | Height | 3.43 mm |
| Weight | 0.12 g | Packaging | Bag |
| Contact Type | Female Socket | Pitch - Post | 2.54mm |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Receptacle | Mounting Style | for cable |
| Number of Rows | 1 | Housing Material | Polyphenylene Oxide |
| Length - Overall | 5.08 mm | Package Quantity | 8000 |
| Connector - Cable | plug | Number of Contacts | 2 |
| Contact Termination | Crimp | Number of Positions | 2 |
| 1st Connector Mounting Feature | 1x2 | ||
Product Info
| Spg | 8000 | Note | Contacts Not Provided |
| Type | Housing | Gender | RCP |
| Features | Polarizing Key | Adapter Series | C-Grid III |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901200762
molex
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Bag Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 2POS .100" STR GOLD
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN

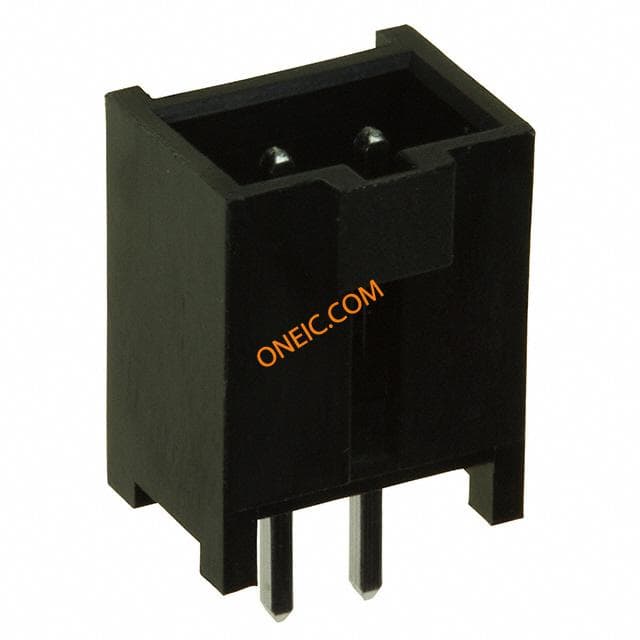

0901361102
molex
Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 2POS .100" STR TIN

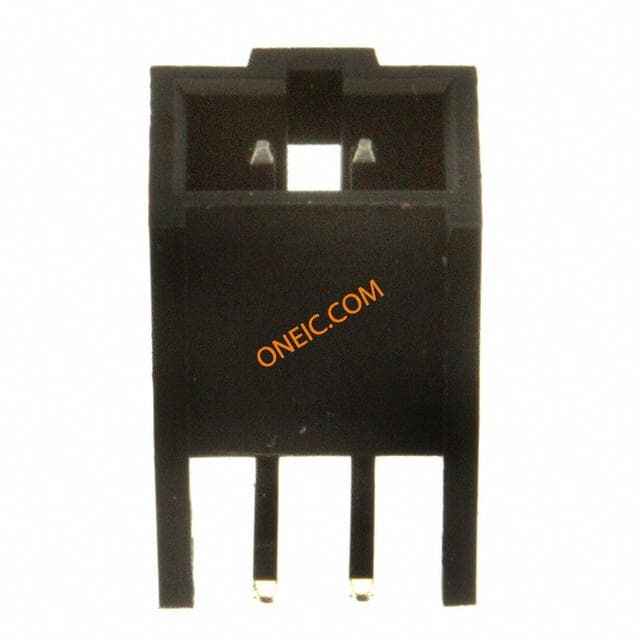

0901362102
molex
Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 2POS .100" R/A TIN
0901210762
molex
Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Bag Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 2POS .100" R/A GOLD Pin header; pin strips; C-Grid III; male; PIN:2; angled 90°; THT

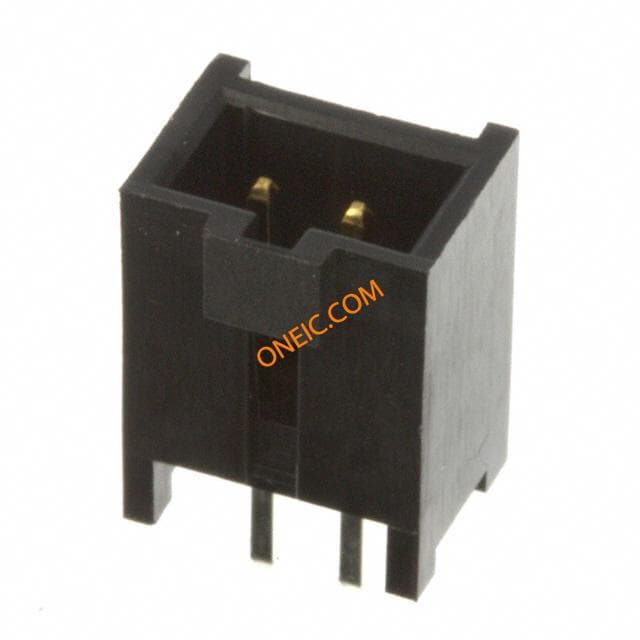

0901361202
molex
Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 2POS .100" STR GOLD
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点
0901210122
Molex
Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 2POS .100" R/A TIN Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Bag
0901200122
Molex
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 2POS .100" STR TIN Pin header; pin strips; C-Grid III; male; PIN:2; straight; 2.54mm
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A

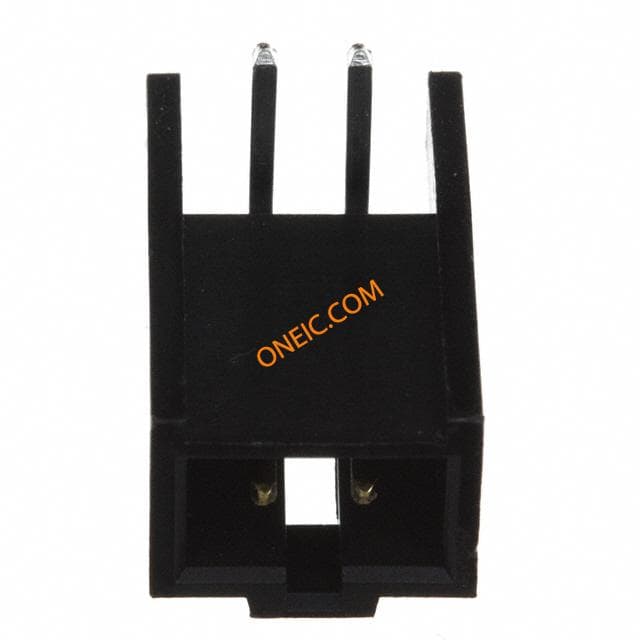

90136-2202
