0901200122
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 2POS .100" STR TIN Pin header; pin strips; C-Grid III; male; PIN:2; straight; 2.54mm |
| Category |
Business
| Standard Package | 6,000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20 mohm | Current Rating (Max) | 3/Contact A |
| Voltage - Input (Min) | 350V | Voltage - Supply (Min) | 350V |
Mechanical
| Color | Black | Depth | 2.54 mm |
| Pitch | 0.100" (2.54mm) | Height | 9.25 mm |
| Weight | 0.16 g | Packaging | Tray |
| Orientation | straight | Termination | Solder |
| Contact Type | Male Pin | Pitch - Post | 2.54mm |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Unshrouded, Breakaway | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polyester |
| Length - Overall | 5.08 mm | Package Quantity | 500 |
| Connector - Cable | pin header | Number of Contacts | 2 |
| Number of Positions | 2 | Contact Length - Mating | 0.266" (6.75mm) |
| Contact Finish Thickness | 118.1µin (3.00µm) | Contact Material - Plating | tinned |
| 1st Connector Mounting Feature | 1x2 | ||
Product Info
| Spg | 500 | Type | Unshrouded Header |
| Gender | HDR | Adapter Series | C-Grid III |
| Number of Units | 1 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55C to 125C | ||
Similar Parts

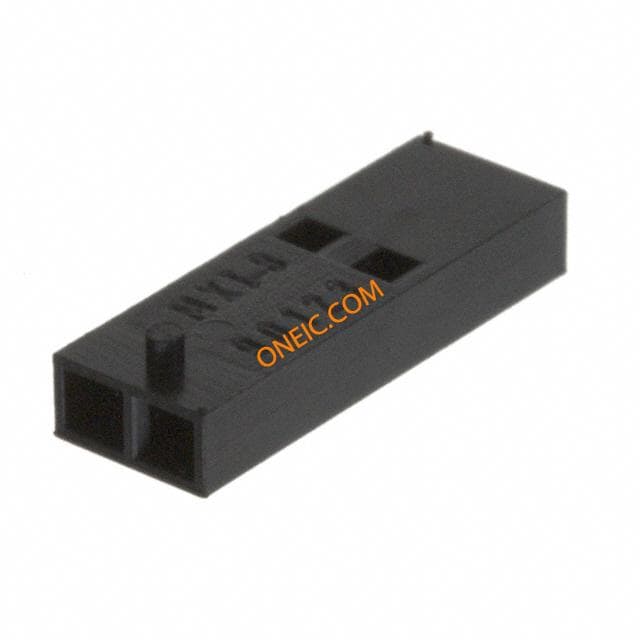

0901230102
molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Bag CONN HOUSING 2POS .100" SINGLE Plug; wire-board; C-Grid III; female; PIN:2; w/o terminals; 2.54mm

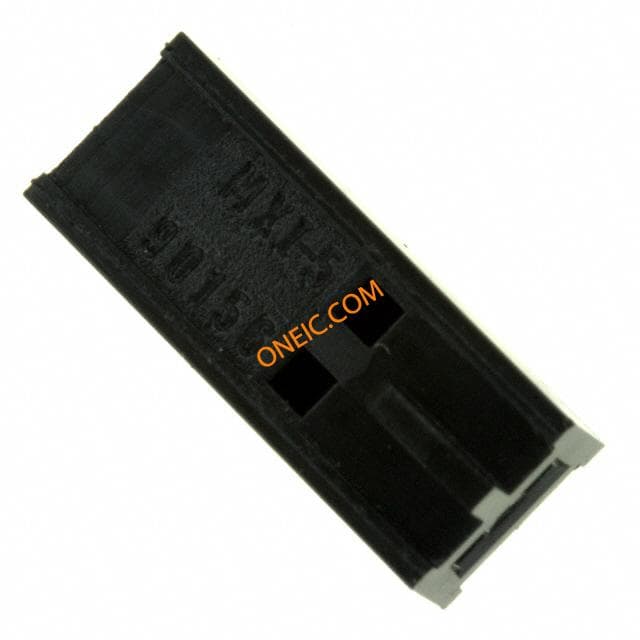

0901560142
