0901200762
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Bag Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 2POS .100" STR GOLD |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20 mohm | Current Rating (Max) | 3/Contact A |
| Voltage - Input (Min) | 350VDC|350VAC | Voltage - Supply (Min) | 350V |
Mechanical
| Color | Black | Depth | 2.54 mm |
| Pitch | 0.100" (2.54mm) | Height | 9.25 mm |
| Packaging | Tray | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded, Breakaway |
| Contact Finish | Gold | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Polyester | Length - Overall | 5.08 mm |
| Number of Contacts | 2 | Number of Positions | 2 |
| Contact Length - Mating | 0.266" (6.75mm) | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55C to 125C | ||
Documents & Media
PDF Document
Similar Parts

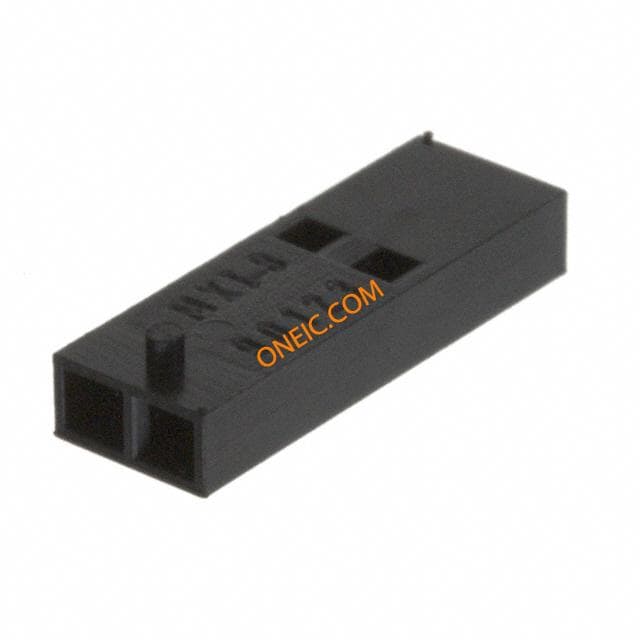

0901230102
molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Bag CONN HOUSING 2POS .100" SINGLE Plug; wire-board; C-Grid III; female; PIN:2; w/o terminals; 2.54mm
$1.9183
Details

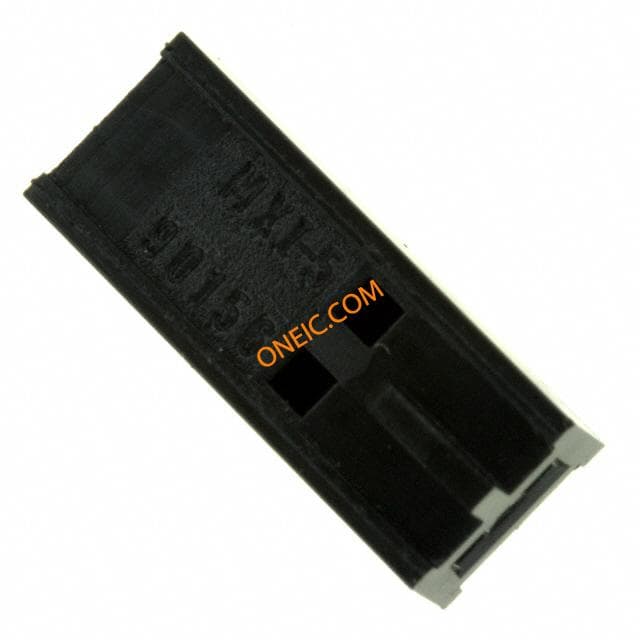

0901560142
