点击放大查看
0709292000
| Manufacturer | |
| Description | Conn Housing PL 60 POS 1.27mm Crimp ST Panel Mount Tray CONN PLUG 60POS LFH SUBASSEMBLY |
| Category |
Business
| Lead Time | 36 Days | Subcategory | Connector Discrete Wire Housing |
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 1/Contact | Voltage - Input (Min) | 40V |
Mechanical
| Color | Black | Depth | 10.97 |
| Pitch | 1.27 mm | Height | 8.35 |
| Packaging | Tray | Wire Gauge | 28-36 AWG |
| Contact Type | Signal | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Plug for Male Contacts |
| Flange Feature | Housing/Shell (Unthreaded) | Number of Rows | 4 |
| Connector Style | D-Type, Micro-D | Housing Material | Steel |
| Length - Overall | 39.14 | Number of Contacts | 60 |
| Dielectric Material | Liquid Crystal Polymer (LCP), Glass Filled | Number of Positions | 60 |
| Shell Finish Thickness | 150µin (3.81µm) | Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Features | Grounding Indents, Shielded |
| Industry Aliases | 70929-2000, 709292000 | ||
Environmental
| Operating Temperature | -20°C ~ 80°C | ||
Documents & Media
Similar Parts
0709282001
molex
Conn PCB Connector SKT 60 POS 1.27mm Solder RA Thru-Hole 60 Terminal 1 Port Tube CONN RCPT 60POS .050 R/A SHIELD
0714770003
molex
Conn Rectangular PL 20 POS 1.27mm Solder ST Thru-Hole Tray 20CKT .050 LFH PLG STK
0709282009
molex
Conn D-Subminiature RCP 60 POS 1.27mm Solder RA Thru-Hole 60 Terminal 1 Port Tube ASSY FEM LFH R/A 60CKT GOLD
0714770002
molex
Conn Rectangular PL 20 POS 1.27mm Solder ST Thru-Hole Tray LFH PLUG INSERT MOLD 20CKT
0709282007
molex
Conn Low Force Helix RCP 60 POS 1.27mm Solder RA Thru-Hole 60 Terminal 1 Port Tube 1.27MM LFH MTX 50 RCPT RA FEM
0709841008
molex
Conn Low Force Helix PL 15 POS 1.27mm Solder ST Thru-Hole 15 Terminal 1 Port Tray 1.27MM LFH MTX 50 PLUG CBL KIT

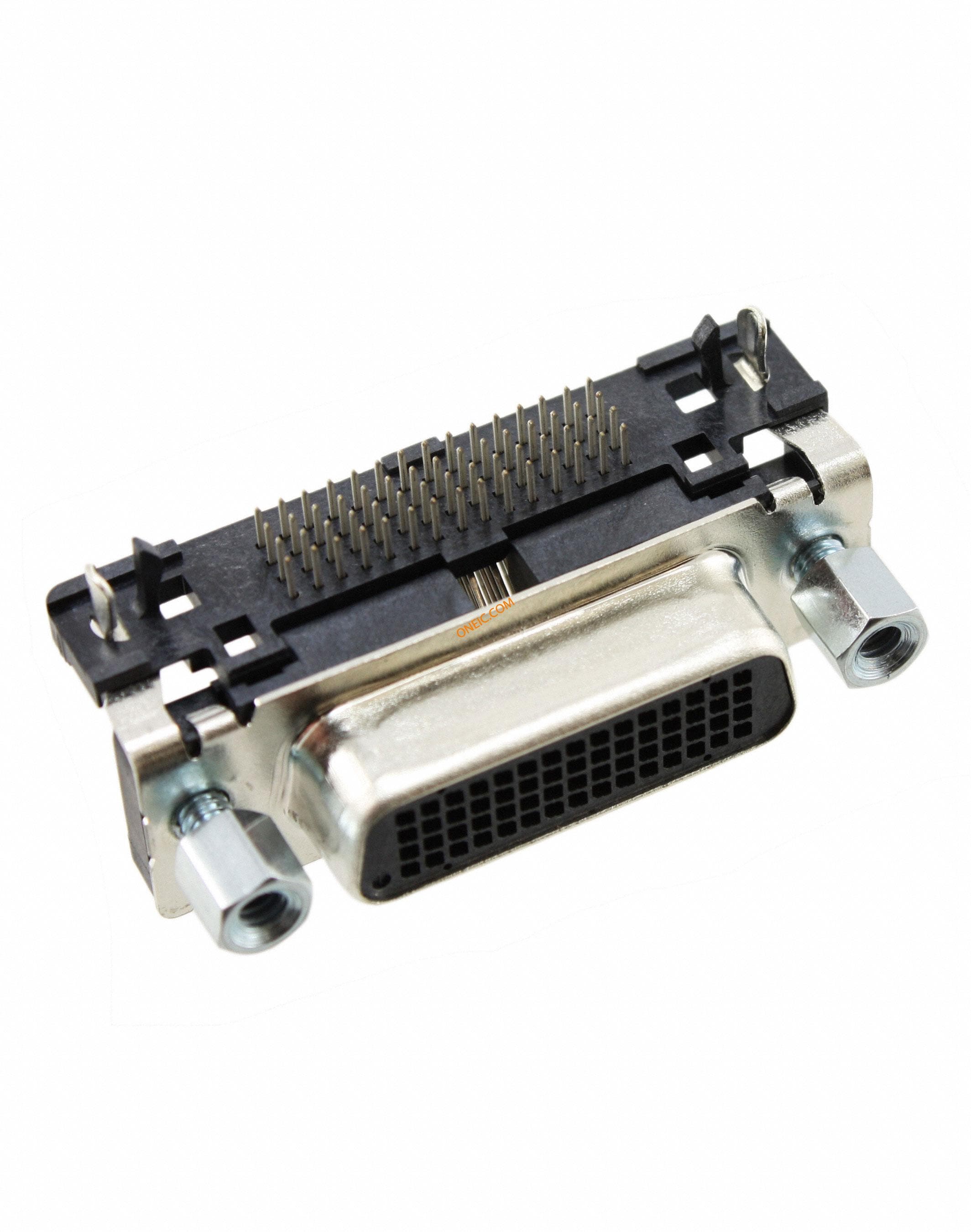

0709282003
