0709282001
| Manufacturer | |
| Description | Conn PCB Connector SKT 60 POS 1.27mm Solder RA Thru-Hole 60 Terminal 1 Port Tube CONN RCPT 60POS .050 R/A SHIELD |
| Category |
Business
| Lead Time | 36 Days | Subcategory | Connector D-Subminiature |
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 40V | Current Rating (Max) | 1A |
| Voltage - Input (Min) | 40V | ||
Mechanical
| Color | Black | Depth | 17.52 |
| Pitch | 1.27 mm | Height | 13.05 |
| Packaging | Tube | Termination | Solder |
| Contact Type | Signal | Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Flange Feature | Housing/Shell (M3) | Number of Rows | 4 |
| Connector Style | D-Type, Board to Board, Matrix | Contact Material | Copper Alloy |
| Housing Material | Polymer | Length - Overall | 39.14 |
| 1st Contact Gender | SKT | Number of Contacts | 60 |
| Number of Positions | 60 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30µin (0.76µm) | Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row |
Product Info
| Type | PCB Connector | Gender | SKT |
| Features | Board Lock, Shielded | Number of Ports | 1 |
| Industry Aliases | 70928-2001, 709282001 | ||
Environmental
| Operating Temperature | -20°C ~ 80°C | ||
Documents & Media
Similar Parts
0709292000
molex
Conn Housing PL 60 POS 1.27mm Crimp ST Panel Mount Tray CONN PLUG 60POS LFH SUBASSEMBLY

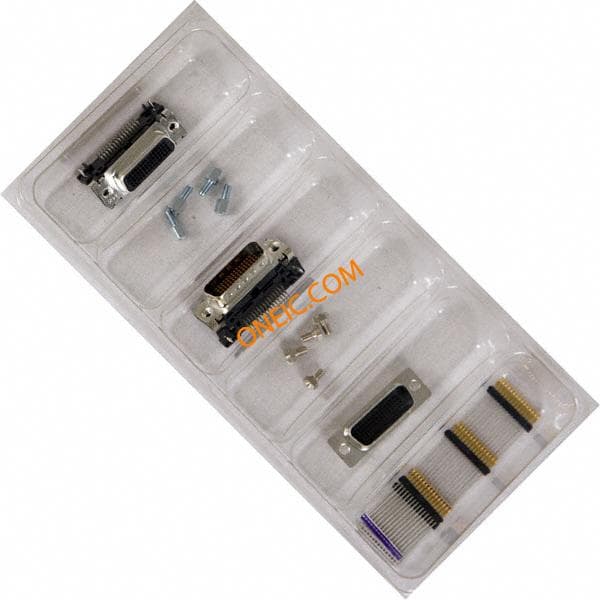

76650-0145
