点击放大查看
0709841007
| Manufacturer | |
| Description | Conn D-Subminiature PL 15 POS 1.27mm Solder ST Thru-Hole 15 Terminal 1 Port Tray 15CKT MALE STK W/BUS |
对参数有疑问？问 AI 助手
Business
| Lead Time | 47 Days | Subcategory | Connector D-Subminiature |
| Standard Package | 759 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 1/Contact | Voltage - Input (Min) | 40V |
Mechanical
| Depth | 1.91 | Pitch | 1.27 |
| Height | 21.03 | Packaging | Tray |
| Wire Gauge | 28-36 AWG | Termination | Solder |
| Contact Form | Stamped | Contact Type | Male Pin |
| Mounting Type | Straight | Contact Finish | Gold Over Nickel |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer | Length - Overall | 19.5 |
| 1st Contact Gender | PL | Number of Contacts | 15 |
| Termination Finish | Nickel | Contact Termination | Solder |
| Contact Finish Thickness | 30µin (0.76µm) | Termination Finish Thickness | 50µin (1.27µm) |
Product Info
| Type | D-Subminiature | Features | Matrix Terminal Strip |
| Number of Ports | 1 | Industry Aliases | 70984-1007, 709841007 |
Documents & Media
PDF Document
Similar Parts
0709292009
molex
Conn Housing PL 60 POS 1.27mm Crimp ST Panel Mount Tray 1.27MM LFH MTX 50 PLG SUBASSY
$10.9616
Details
0709292000
molex
Conn Housing PL 60 POS 1.27mm Crimp ST Panel Mount Tray CONN PLUG 60POS LFH SUBASSEMBLY
$18.2308
Details
0751351009
molex
Conn Housing PL 59 POS 1.27mm Crimp ST DMS59 PLG .050 PITCH CABLE ASSY
$10.9446
Details

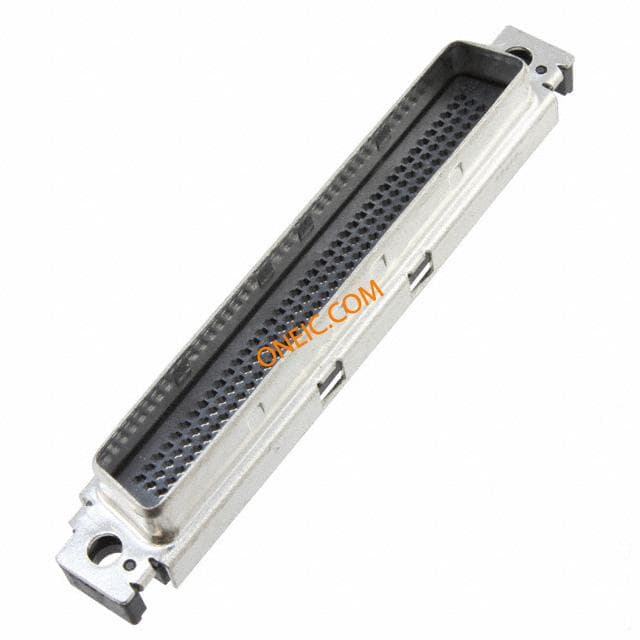

0716243000
