0705530002
| Manufacturer | |
| Description | Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 3POS .100 R/A GOLD |
| Category |
Business
| Lead Time | 21 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 30 mohm | Current Rating (Max) | 3/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | Black | Depth | 13.59 mm |
| Pitch | 2.54 mm | Height | 6.99 mm |
| Packaging | Tube | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Fastening Type | Latch Holder |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polyester |
| Length - Overall | 10.17 mm | Number of Contacts | 3 |
| Number of Positions | 3 | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness | 15µin (0.38µm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Industry Aliases | 70553-0002, 705530002 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0050579203
molex
Conn Housing F 3 POS 2.54mm Crimp ST Cable Mount Bag CONN HSG 3POS .100 SINGLE VER C
0738380003
molex
Conn Housing RCP 3 POS 2.54mm Crimp ST Bag CONN HOUSING CRIMP 3POS 2.54MM
0050579403
molex
Conn Housing RCP 3 POS 2.54mm Crimp ST Panel Mount Bag CONN HOUSING 3POS .100 W/LATCH
76650-0170
molex

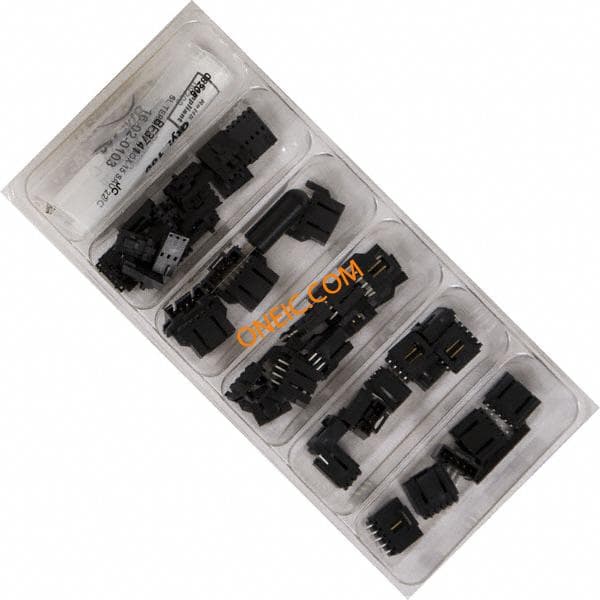

COMPONENT KITS, WIRE TO BOARD KIT 3,4,5POS 3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.54MM PITCH 250V 24-22 WIRE SIZE KIT CONN SL WTB I/O Connectors SL CONN KIT WTB COMPONENT KITS, WIRE TO BOARD KIT 3,4,5POS 3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.54MM PITCH 250V ... Kit Description:High Vibration Signal Vertical and Right Angle Header and Receptacle. Includes Insertion ToolKit Category:Wire to BoardSolution:SignalPackaging:Clamshell: 9" by 4"Num. Pieces:250 Kit; SL Signal Connectors; 2.54mm (0.100 In.) Pitch; Single; with Insertion Tool
