15-47-4033

Manufacturer	Molex, LLC
Description	CONN FFC FEMALE 3POS .100 GOLD FFC & FPC Connectors SL FFC/FPC Opt G Fem 15 SAu 3Ckt Conn IDC Connector F 3 POS 2.54mm IDT ST Cable Mount Tube
Category	Connector SolutionsFFC, FPC ConnectorsFFC/FPC Connectors

对参数有疑问？问 AI 助手

Business

Tradename	C-Grid	Part # Aliases	0015474033 704300317
Product Category	FFC & FPC Connectors	Standard Package	1
Factory Pack Quantity	2100

Compliance

RoHS

RoHS Compliant

Material Flammability Rating

UL94 V-0

Electrical

Voltage Rating

250V

Current Rating (Max)

1 A, 2 A

Mechanical

Color	Black	Pitch	0.100" (2.54mm)
Packaging	Tube	Termination	IDC
Mounting Type	Vertical	Connector Type	Receptacle
Contact Finish	Gold	Mounting Style	Cable
Contact Material	Phosphor Bronze	Housing Material	Polyester, Glass Filled
Termination Style	IDC	FFC, FCB Thickness	0.30mm
Number of Contacts	3	Number of Positions	3
Contact Finish Thickness	15µin (0.38µm)

Product Info

Gender	Female	Series	70430
Features	Latch Lock	Product Type	Free Hanging

Environmental

Operating Temperature

-40°C ~ 105°C

Documents & Media

PDF Document

15-47-4xx3

Similar Parts

0705430002

molex

Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 3POS .100 VERT GOLD

$2.8370

Details

0705530107

molex

Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 3POS .100 R/A 30AU

$5.3169

Details

0705550037

molex

Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 3POS .100 R/A 15AU

$4.4887

Details

0705530002

molex

Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 3POS .100 R/A GOLD

$3.9824

Details

0623003000

molex

RIBBON CABLE HAWK W/O BREAK-OFF STATION HAWK Ribbon Cable Terminator For SL Without Break-Off RIBBON CABLE HAWK

$347073.4960

Details

0705450002

molex

Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 3POS .100 VERT TIN

$3.6849

Details

0705430107

molex

Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 3POS .100 VERT 30AU

$8.7455

Details

0623005200

molex

FFC HAWK W/ BREAK-OFF STATION HAWK FLAT FLEX CABLE TERMINATOR FOR SL WITH BREAK-OFF

$462764.6840

Details

68301-1009

Molex

Headers & Wire Housings Cust. Header 100 SMT 3 CKT CONN HEADER 3POS .100" VERT 15AU

Details

68301-1014

Molex

Headers & Wire Housings 2.54MM BREAKAWAY Vertical 3 CKT CONN HEADER 3POS .100" VERT TIN

$5.1000

Details

0705550002

Molex

Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 3POS .100 R/A TIN Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Th

$4.3894

Details

0740991003

Molex

Conn Shrouded Header HDR 3 POS 2.54mm Solder ST SMD Tube CONN HEADER .100 VERT 3POS SMD

$8.9120

Details

0701070002

Molex

Conn Housing F 3 POS 2.54mm Crimp ST Bag CONN HOUSING MALE 3POS .100 Connector: wire-wire; SL; plug; male; w/o terminals; PIN:3; 2.54mm sale

$1.9278

Details

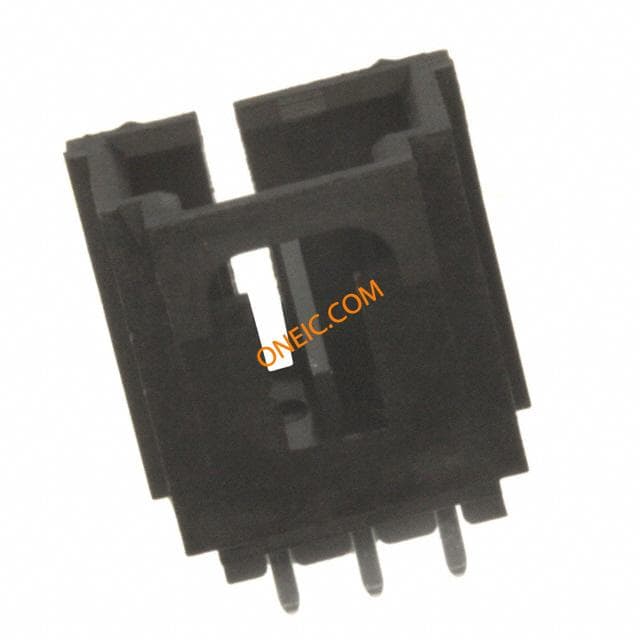

0015913034
