76650-0170
| Manufacturer | |
| Description | COMPONENT KITS, WIRE TO BOARD KIT 3,4,5POS 3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.54MM PITCH 250V 24-22 WIRE SIZE KIT CONN SL WTB I/O Connectors SL CONN KIT WTB COMPONENT KITS, WIRE TO BOARD KIT 3,4,5POS 3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.54MM PITCH 250V ... Kit Description:High Vibration Signal Vertical and Right Angle Header and Receptacle. Includes Insertion ToolKit Category:Wire to BoardSolution:SignalPackaging:Clamshell: 9" by 4"Num. Pieces:250 Kit; SL Signal Connectors; 2.54mm (0.100 In.) Pitch; Single; with Insertion Tool |
| Category |
Business
| Product | Connector Kit | Standard Pack | 1 |
| Part # Aliases | 0766500170 | Product Category | I/O Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage | 250 V | Voltage Rating | 250 V |
| Current Rating (Max) | 3 A | ||
Mechanical
| Pitch | 2.54 mm | Packaging | Plastic Box |
| Wire Gauge | 24-22 | Connector Type | Headers and Receptacles |
Product Info
| Type | SL Signal Connector Kit | Series | 76650 |
| Values | 250 pcs - Assorted 3 ~ 5 Circuit Header, Housing, 24 ~ 22 AWG Crimp Terminals, Polarizing Key | Kit Type | Rectangular - Contact, Header, Housing |
| Manufacturer | 76650 | Configuration | Wire-to-Board |
| Number of Circuits | 3, 4, 5 | ||
Documents & Media
Similar Parts
15-04-0292
Molex
Polarising pin for crimp terminal Headers & Wire Housings MX50 KEYING INSERT Connector Accessories Polarizing Key PIN, POLARISING, UNIVERSAL POLARIZATION PIN; UNIVERSAL Molex C-Grid 系列 键控插头
70553-0003
Molex
Molex 70553 Series 2.54mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube HEADER, W2B, 4WAY Header, Right-Angle shrouded locking, surface-mount compatiable, 4 Circuit PCB header Pitch2.54 mm Poles 4 Single row / 90° / with shroud SL, 70553-0003, Molex Molex SL 系列 2.54mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔

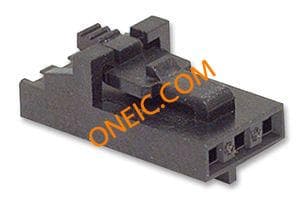

50-57-9403
Molex
2.54mm,housing,Cgrid,SL,versionG,1row,3w Headers & Wire Housings HSG 3P SINGLE ROW POSITIVE LATCH Conn Housing F 3 POS 2.54mm Crimp ST Cable Mount Bag HOUSING, RECEPTACLE, 2.54MM PITCH, 3WAY Housing, single-row and center locking, 3 position Molex SL 系列 2.54mm 节距 3 路 直 母 面板安装 压接连接器外壳

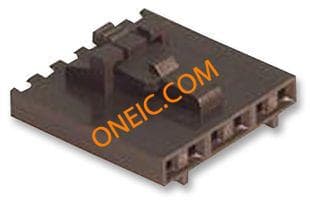

50-57-9405
