0039012140
| Manufacturer | |
| Description | Conn Housing RCP 14 POS 4.2mm Crimp ST Bag CONN RECEPT 14POS DUAL CONNECTOR HOUSING, RECEPTACLE, 14POS, 2ROW, 4.2MM |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Connector Discrete Wire Housing |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Current Rating (Max) | 13/Contact A | Voltage - Input (Min) | 600VDC|600VAC |
| Voltage - Supply (Min) | 600VDC/600VAC | ||
Mechanical
| Color | Natural | Depth | 19.6 mm |
| Pitch | 0.165" (4.20mm) | Height | 15.1 mm |
| Weight | 0.003 | Packaging | Bag |
| Row Spacing | 0.165" (4.20mm) | Contact Type | Female Socket |
| Body Material | :PA Polyamide (Nylon) | Housing Color | Natural |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Number of Rows | 2 |
| Housing Material | Nylon 66 | Length - Overall | 30.6 mm |
| Number of Contacts | 14 | Contact Termination | Crimp |
| Number of Positions | 14 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | :Mini-Fit Jr |
| Industry Aliases | 39-01-2140, 39012140 | For Use With/Related Products | :5556, 44485 Mini-Fit Crimp Terminals |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0039299143
molex
Conn Wire to Board HDR 14 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 14POS 4.2MM VERT TIN
0039301142
molex
Conn Wire to Board HDR 14 POS 4.2mm Solder RA Thru-Hole Tray Conn Power HDR 14 POS 4.2mm Solder RA Thru-Hole 14 Terminal 1 Port Bag CONN HEADER 14POS 4.2MM R/A GOLD
0039288140
molex
Conn Wire to Board HDR 14 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Bag CONN HEADER 14POS 4.2MM VERT TIN
0039299146
molex
Conn Wire to Board HDR 14 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray CONN HEADER 14POS 4.2MM VERT TIN
0015286141
molex
Conn Wire to Board HDR 14 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray CONN VERT HEADER 14POS DUAL
0039300140
molex
Conn Wire to Board HDR 14 POS 4.2mm Solder RA Thru-Hole Tray Conn Power HDR 14 POS 4.2mm Solder RA Thru-Hole 14 Terminal 1 Port Bag CONN HEADER 14POS 4.2MM R/A TIN Connector
0039291147
Molex
Conn Power HDR 14 POS 4.2mm Solder RA Thru-Hole 14 Terminal 1 Port Bag CONN HEADER 14POS DL R/A TIN Conn Wire to Board HDR 14 POS 4.2mm Solder RA Thru-Hole Bag
0039299142
Molex
Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray CONN HEADER 14POS 4.2MM VERT TIN
0015246141
Molex
Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray CONN HEADER VERT 14POS T/H
0039296148
Molex
Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Bag CONN HEADER 14POS 4.2MM VERT GOL

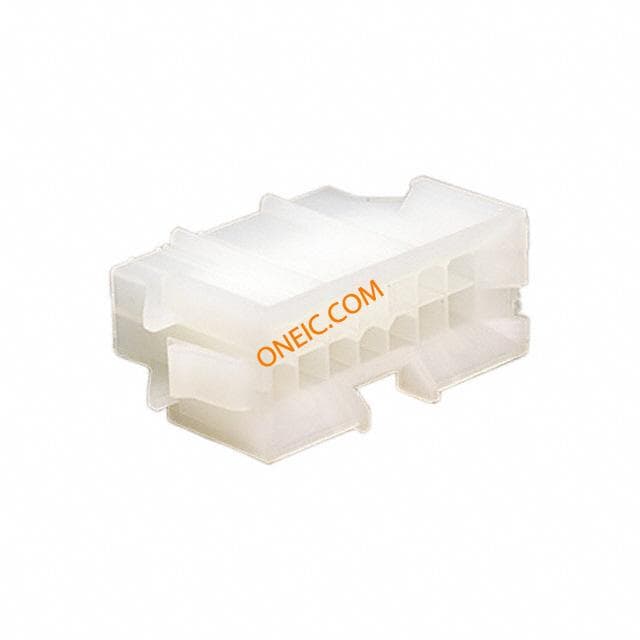

15-06-0145
Molex Connector Corporation
CONN PLUG 14POS W/PANEL MNT EARS Headers & Wire Housings PLUG DUAL ROW 14POS w/panel mount ears Conn Housing PL 14 POS 4.2mm Crimp ST Bag
39-01-2141
Molex Connector Corporation
CONN PLUG 14POS PANEL MOUNT 14 way dual row panel mount plug Headers & Wire Housings 14 CKT PLUG HOUSING Conn Housing M 14 POS 4.2mm Crimp ST Panel Mount Bag 14CKT NEW MINI FIT HOUSIN 555914P Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 14 路 直 公 面板安装 压接连接器外壳
15-06-0146
Molex Connector Corporation
CONN PLUG 14POS W/PANEL MNT EARS Plug Housing 4.20mm BMI UL94V-0,D/R,14w Headers & Wire Housings 4.20MM PLUG HSG 14P 2ROW W/PNL MT EARS 4.20mm Pitch Mini-Fit® BMI Plug Housing, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 14 Circuits Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 14 路 直 公 面板安装 压接连接器外壳
0460111401
Molex Inc
CONN VERT BMI HDR ASY GOLD HCS
43879-0027
Molex Connector Corporation
CONN HEADER 14POS 4.2MM DUAL TIN Headers & Wire Housings VERT MINIFIT CPI 14P dual row interface 4.20mm Pitch Mini-Fit® CPI Header, Compliant Pin Interface, Dual Row, Vertical, 14 Circuits, Tin (Sn) Plating HEADER, MINI-FIT CPI, TIN, 14WAY
39-30-6147
Molex Connector Corporation
CONN HEADER 14POS 4.2MM VERT TIN Headers & Wire Housings 4.2MM 2R VERT14P HDR SN W/SNAP-IN PEG LCK Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray

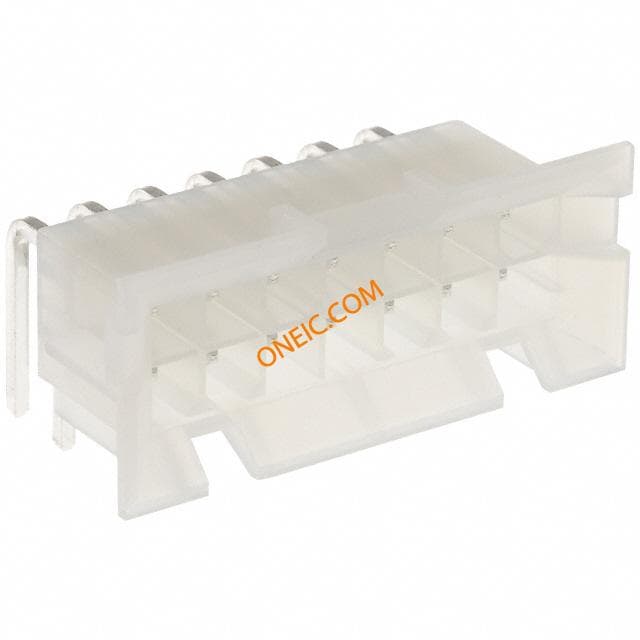

15-24-6140
