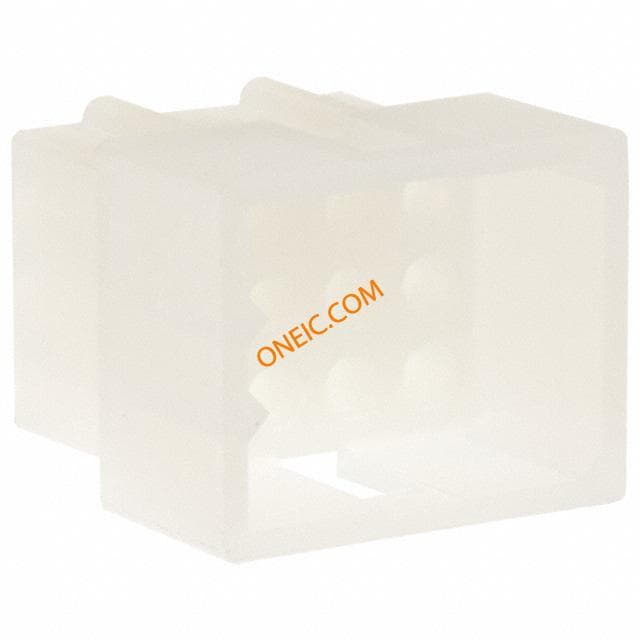

03-06-1122

Manufacturer	Molex, LLC
Description	Conn Housing RCP 12 POS 3.68mm Crimp ST Bag CONN RECEPTACLE 12POS .062 Molex 3.68mm 12 Way 3 Row Straight Female Housing Receptacle Pin & Socket Connectors 12C RECEPTACLE HOUSING, RECEPTACLE, 3 ROW, 12WAY, NYLON TERMINAL HOUSE; MINI; RECEPTCL W/DTENT WNDWS; 12 CIRCUITS Molex STANDARD .062" 系列 3 行 3.68mm 节距 12 路直母电缆安装压接连接器外壳
Category	Connector SolutionsRectangular ConnectorsFPC/FFC Rectangular Connectors

对参数有疑问？问 AI 助手

Business

Tradename	Standard .062 in	Part # Aliases	0003061122 1625-12R1 3061122
Product Category	Pin & Socket Connectors	Standard Package	Bulk
Factory Pack Quantity	3500

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85369010	Approval Agency Marking	CSA, UL, TUV
Material Flammability Rating	UL94V-2

Electrical

Voltage Rating

250 V

Current Rating (Max)

Mechanical

Color	Natural	Pitch	3.68 mm
Height	12.4mm	Weight	0.002
Packaging	Bulk	Row Spacing	0.145" (3.68mm)
Termination	Crimp	Contact Type	Male or Female
Mounting Type	Straight	Angle of Throw	Straight
Connector Type	Receptacle	Fastening Type	Locking Ramp
Mounting Style	Free Hanging	Number of Rows	3
Housing Material	Nylon	Length - Overall	0.78 "
Termination Style	Crimp	1st Contact Gender	Socket (Female)
Number of Contacts	12	Contact Termination	Crimp
Number of Positions	12	Mounting Hole Diameter	0.795×0.563 "

Product Info

Note	Contacts Not Provided	Type	Housing
Gender	RCP	Series	1625
CAD Drawing	3D CAD Model	Manufacturer	1625 Series
Product Type	Receptacle Housings	For Use With/Related Products	:1560, 1561, 1786, 1854 Crimp Terminals

Environmental

Operating Temperature

-40 to +105 °C

Documents & Media

PDF Document

03-06-1122

PDF Document

1625400.pdf

PDF Document

1724790.pdf
