0002065103
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG GOLD |
| Category |
Business
| Lead Time | 45 Days | Subcategory | Connector Contact |
| Standard Package | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 3.2 mohm | Current Rating (Max) | 5 A |
Mechanical
| Depth | 3.56 mm | Pitch | Not Required mm |
| Height | 3.56 mm | Packaging | Bag |
| Wire Gauge | 18-24 AWG | Shield Type | No |
| Termination | Crimp | Contact Type | Signal |
| Housing Color | Not Required | Mounting Type | Cable Mount |
| Pin or Socket | Socket | Connector Type | Connector Headers and PCB Recepta... |
| Contact Finish | Gold Over Nickel | Mounting Style | Cable |
| Contact Material | Brass | Housing Material | Not Required |
| Length - Overall | 17.3 mm | Number of Contacts | Not Required |
| Contact Termination | Crimp | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Type | Power | Gender | SKT |
| DELETED | Compliant | Industry Aliases | 02-06-5103, 02065103, 2065103 |
| For Use With/Related Products | 0002065100 | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0351551102
molex
Conn Housing RCP 11 POS 2.5mm Crimp ST Cable Mount CONN FEMALE HOUSING 11POS RED
0351551402
molex
Conn Housing RCP 14 POS 2.5mm Crimp ST Cable Mount CONN FEMALE HOUSING 14POS RED
0351551202
molex
Conn Housing RCP 12 POS 2.5mm Crimp ST Cable Mount Conn Housing RCP 12 POS 2.5mm Crimp ST Cable Mount Bag CONN FEMALE HOUSING 12POS RED
0351550203
molex
Conn Housing RCP 2 POS 2.5mm Crimp ST Cable Mount CONN FEMALE HOUSING 2POS YELLOW
0003061362
molex
Conn Housing RCP 36 POS 4.19mm Crimp ST Bag 062 PWR RCPT O/MNT EARS 94V
0638111000
molex
Connector Accessories Hand Crimp Tool Hand Crimper Handtool Type TOOL CRIMP 14-24AWG UNIVERSAL Tool: for crimping; 14÷24AWG
0003061044
molex
Conn Housing RCP 4 POS 3.68mm Crimp ST Bag CONN RECEPTACLE 4POS .062
0003062032
molex
Conn Housing PL 3 POS 3.68mm Crimp ST Bag CONN PLUG 3POS .062
0351551300
Molex, LLC
. 0351551300 - 13 Position Rectangular Housing Connector Receptacle Natural 0.098" (2.50mm) from Molex. from now!
0011030002
Molex
Connector Accessories Extraction Tool Manual Extraction Tool TOOL EXTRACTION MOLEX .062 TERM
0011020001
Molex
Lightweight Manual Hand Insertion Tool INSERTION TOOL HT1807
0640160205
Molex
Hand Crimp Tool For 0.156 Terminals TOOL CRIMP KK .156" .062" TERM

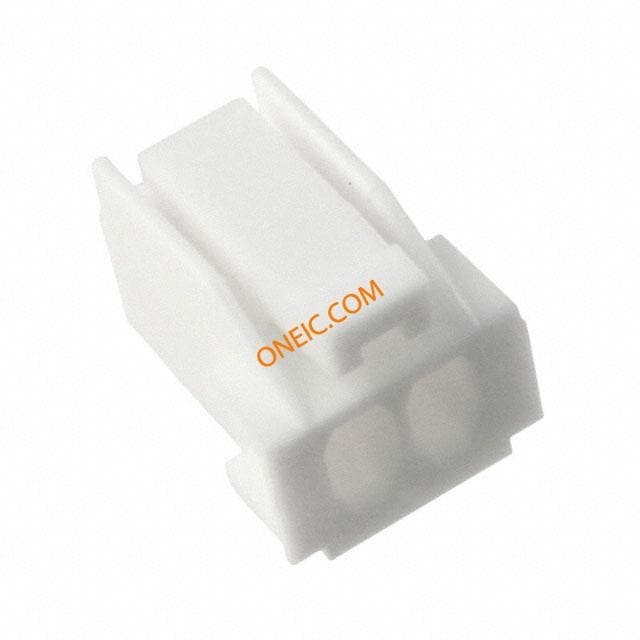

0351550200
Molex, LLC
. 0351550200 - 2 Position Rectangular Housing Connector Receptacle Natural 0.098" (2.50mm) from Molex. from now!
0638191300
Molex
Hand Crimp Tool For Standard 1.57mm Pin and Socket Crimp Terminals, 18-24 AWG TOOL HAND CRIMP 18-24AWG RATCHET Connector Accessories Hand Crimp Tool
0351550403
Molex, LLC
. 0351550403 - 4 Position Rectangular Housing Connector Receptacle Yellow 0.098" (2.50mm) from Molex. from now!
0351550604
Molex
Conn Housing RCP 6 POS 2.5mm Crimp ST Cable Mount Bag CONN FEMALE HOUSING 6POS BLUE
0351550500
Molex
Conn Housing RCP 5 POS 2.5mm Crimp ST Cable Mount Bag CONN FEMALE HOUSING 5POS NATURAL
0351550902
Molex, LLC
. 0351550902 - 9 Position Rectangular Housing Connector Receptacle Red 0.098" (2.50mm) from Molex. from now!
03-06-2241
Molex Connector Corporation
CONN PLUG 24POS .062 PANEL MOUNT Molex 3.68mm 24 Way 4 Row Straight Male Housing Receptacle Pin & Socket Connectors 24 CIRCUIT PLUG 1.57mm Diameter Standard .062" Pin and Socket Plug Housing, 24 Circuits, with Standard Mounting Ears TERMINAL HOUSE; MINI; PLUG W/MNT EAR & DTENT WNDW; 24 Circuit Molex STANDARD .062" 系列 4 行 3.68mm 节距 24 路 直 公 面板安装 压接连接器外壳

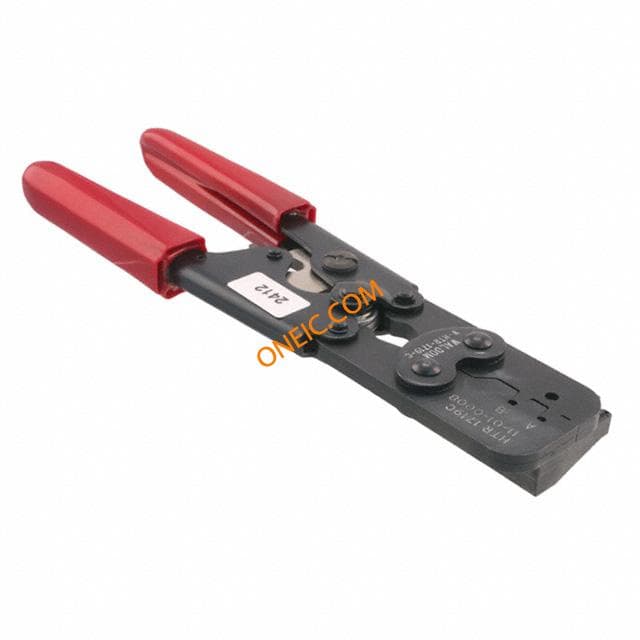

W-HTR-1719
