0002061103
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG TIN |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Connector Contact |
| Standard Package | 6,000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 3.2 mohm | Current Rating (Max) | 5 A |
| Voltage - Supply (Min) | 250VDC/250VAC | ||
Mechanical
| Depth | 3.56 mm | Pitch | Not Required mm |
| Height | 3.56 mm | Packaging | Bag |
| Wire Gauge | 18-24 AWG | Shield Type | No |
| Termination | Crimp | Contact Type | Signal |
| Housing Color | Not Required | Mounting Type | Cable Mount |
| Pin or Socket | Socket | Connector Type | Connector Headers and PCB Recepta... |
| Contact Finish | Tin | Mounting Style | Cable |
| Contact Material | Brass | Housing Material | Not Required |
| Length - Overall | 16.8 mm | Number of Contacts | Not Required |
| Contact Termination | Crimp | Contact Finish Thickness | 20µin (0.51µm) |
Product Info
| Type | Power | Gender | SKT |
| Series | 1561 | Industry Aliases | 02-06-1103, 02061103, 2061103 |
| For Use With/Related Products | 0002061101 | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0638111000
molex
Connector Accessories Hand Crimp Tool Hand Crimper Handtool Type TOOL CRIMP 14-24AWG UNIVERSAL Tool: for crimping; 14÷24AWG
0003061092
molex
Conn Housing RCP 9 POS 3.68mm Crimp ST Cable Mount Bag CONN RECEPTACLE 9POS .062
0003062032
molex
Conn Housing PL 3 POS 3.68mm Crimp ST Bag CONN PLUG 3POS .062
0003062061
molex
Conn Housing PL 6 POS 3.68mm Crimp ST Bag CONN PLUG 6POS .062
0011030002
Molex
Connector Accessories Extraction Tool Manual Extraction Tool TOOL EXTRACTION MOLEX .062 TERM
0003067044
molex
Conn Housing PL 4 POS 3.68mm Crimp ST Bag Conn Housing PL 4 POS 3.68mm Crimp ST Cable Mount Bag CONN PLUG FREE HNG 4CKT .062
11-01-0008
Molex
Crimpers USE 538-63811-3300 TOOL HAND CRIMP 18-24AWG RATCHET
03-06-1122
molex
Conn Housing RCP 12 POS 3.68mm Crimp ST Bag CONN RECEPTACLE 12POS .062 Molex 3.68mm 12 Way 3 Row Straight Female Housing Receptacle Pin & Socket Connectors 12C RECEPTACLE HOUSING, RECEPTACLE, 3 ROW, 12WAY, NYLON TERMINAL HOUSE; MINI; RECEPTCL W/DTENT WNDWS; 12 CIRCUITS Molex STANDARD .062" 系列 3 行 3.68mm 节距 12 路 直 母 电缆安装 压接连接器外壳
03-06-1041
Molex
Pin & Socket Connectors 4 CIRCUIT RECEPTACLE HOUSING, RECEPTACLE, 4 WAY, NYLON
0003062042
Molex
Conn Housing PL 4 POS 3.68mm Crimp ST Cable Mount Bag CONN PLUG 4POS .062
0003061038
Molex
Conn Housing RCP 3 POS 3.68mm Crimp ST Bag CONN RECEPT 3POS .062 PANEL MNT
0640160205
Molex
Hand Crimp Tool For 0.156 Terminals TOOL CRIMP KK .156" .062" TERM
0638191300
Molex
Hand Crimp Tool For Standard 1.57mm Pin and Socket Crimp Terminals, 18-24 AWG TOOL HAND CRIMP 18-24AWG RATCHET Connector Accessories Hand Crimp Tool
03-06-2054
Molex Connector Corporation
CONN PLUG 5POS .062 PANEL MOUNT Molex 3.68mm 5 Way 1 Row Straight Male Multiway Connector Pin & Socket Connectors 5 CIRCUIT PLUG 1.57mm Diameter Standard .062" Pin and Socket Plug Housing, 5 Circuits, with Standard Mounting Ears HOUSING, 3.68MM, 5WAY TERMINAL HOUSE; MINI; PLUG W/MNT EAR & DTENT WNDW; 5 CIRCUIT Molex STANDARD .062" 系列 3.68mm 节距 5 路 直 公 面板安装 压接连接器外壳

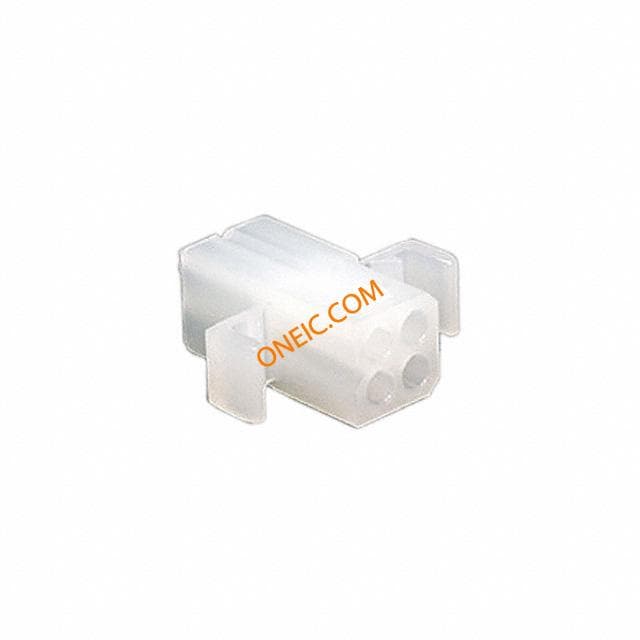

03-06-1043
