0039301142
| Manufacturer | |
| Description | Conn Wire to Board HDR 14 POS 4.2mm Solder RA Thru-Hole Tray Conn Power HDR 14 POS 4.2mm Solder RA Thru-Hole 14 Terminal 1 Port Bag CONN HEADER 14POS 4.2MM R/A GOLD |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 29 Days | Subcategory | Connector Power |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 13/Contact | Voltage - Input (Min) | 600VAC |
Mechanical
| Color | Natural | Depth | 19.4 |
| Pitch | 4.2 mm | Height | 11.4 |
| Packaging | Bag | Row Spacing | 0.165" (4.20mm) |
| Termination | Solder | Contact Form | Male Pin |
| Contact Type | Male Pin | Lead Spacing | 0.165" (4.20mm) |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Fastening Type | Locking Ramp |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Polyamide 66 | Length - Overall | 30.6 |
| Number of Contacts | 14 | Number of Positions | 14 |
| Contact Finish Thickness | 30µin (0.76µm) | Number of Positions/Bay/Row | All |
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | Mini-Fit® Jr™ 5569 | Features | Board Lock |
| Main Purpose | Board Lock | Number of Ports | 1 |
| Industry Aliases | 39-30-1142, 39301142 | Output Configuration | Through Hole, Right Angle |
| Number of Positions Loaded | All | For Use With/Related Products | 0039300144 |
Environmental
| Operating Temperature | 105 | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

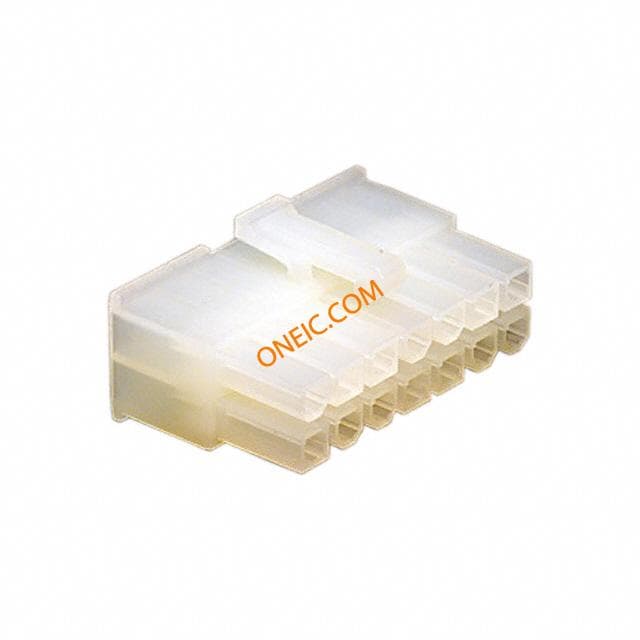

0039012140
molex
Conn Housing RCP 14 POS 4.2mm Crimp ST Bag CONN RECEPT 14POS DUAL CONNECTOR HOUSING, RECEPTACLE, 14POS, 2ROW, 4.2MM
$2.3800
Details
0039012145
molex
Conn Housing RCP 14 POS 4.2mm Crimp ST Bag CONN RECEPT 14POS DUAL Conn Housing F 14 POS 4.2mm Crimp ST Cable Mount Bag
$2.8560
Details

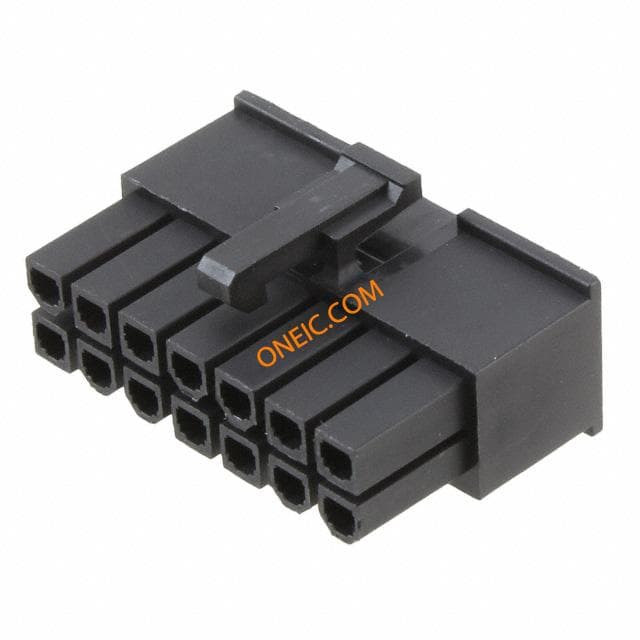

0050362293
