0039012160
| Manufacturer | |
| Description | Conn Housing RCP 16 POS 4.2mm Crimp ST Bag CONN RECEPT 16POS DUAL |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Connector Discrete Wire Housing |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current Rating (Max) | 13/Contact A | Voltage - Supply (Min) | 600VDC/600VAC |
| Connector - Voltage Input | Crimp | ||
Mechanical
| Color | Natural | Depth | 19.6 mm |
| Pitch | 4.2 mm | Height | 15.1 mm |
| Packaging | Bag | Row Spacing | 0.165" (4.20mm) |
| Contact Form | Female Socket | Contact Type | Female Socket |
| Lead Spacing | 0.165" (4.20mm) | Housing Color | Natural |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Number of Rows | 2 |
| Housing Material | Nylon 66 | Length - Overall | 34.8 mm |
| Number of Contacts | 16 | Contact Termination | Crimp |
| Number of Positions | 16 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Mini-Fit® Jr™ 5557 |
| Industry Aliases | 39-01-2160, 39012160 | Output Configuration | Free Hanging (In-Line) |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0039301160
molex
Conn Wire to Board HDR 16 POS 4.2mm Solder RA Thru-Hole Bag CONN HEADER 16POS 4.2MM R/A TIN
0442810007
molex
Conn Wire to Board PL 16 POS 4.2mm Solder ST Thru-Hole Bag Conn Power PL 16 POS 4.2mm Solder ST Thru-Hole 16 Terminal 1 Port Bag MINIFIT CONTINUITY TST PLG DR
0039301162
molex
Conn Wire to Board HDR 16 POS 4.2mm Solder RA Thru-Hole Bulk CONN HEADER 16POS 4.2MM R/A GOLD
0874271602
molex
Conn Wire to Board HDR 16 POS 4.2mm Solder RA Thru-Hole Tray WIRE TO BOARD MINIFIT
0039300160
molex
Conn Wire to Board HDR 16 POS 4.2mm Solder RA Thru-Hole Bulk CONN HEADER 16POS 4.2MM R/A TIN
0039299169
molex
Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 16POS DL VERT GOLD
0039281163
molex
Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 16POS 4.2MM VERT TIN
39-29-0163
molex
Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 16POS 4.2MM STR GOLD Headers & Wire Housings 16 CKT VERT HEADER CONNECTOR, HEADER, 16POS, 2ROW, 4.2MM
39-01-3163
Molex
Headers & Wire Housings 16 CKT PLUG HOUSING Conn Housing M 16 POS 4.2mm Crimp ST Cable Mount Bag CONN PLUG 16POS VERT DUAL see 70190846 replacement
39-30-6167
molex
MINI-FIT JR. 16 CKT V-2 CONN HEADER 16POS 4.2MM VERT TIN Headers & Wire Housings 4.2MM 2R VERT16P HDR SN W/SNAP-IN PEG LCK Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole Tray
39-28-9168
molex
Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 16POS 4.2MM STR GOLD Headers & Wire Housings HDR VERT DUAL 16P PCB w/peg locks
0039295163
Molex
Conn Wire to Board HDR 16 POS 4.2mm Solder RA Thru-Hole Bag CONN HEADER 16POS 4.2MM R/A GOLD

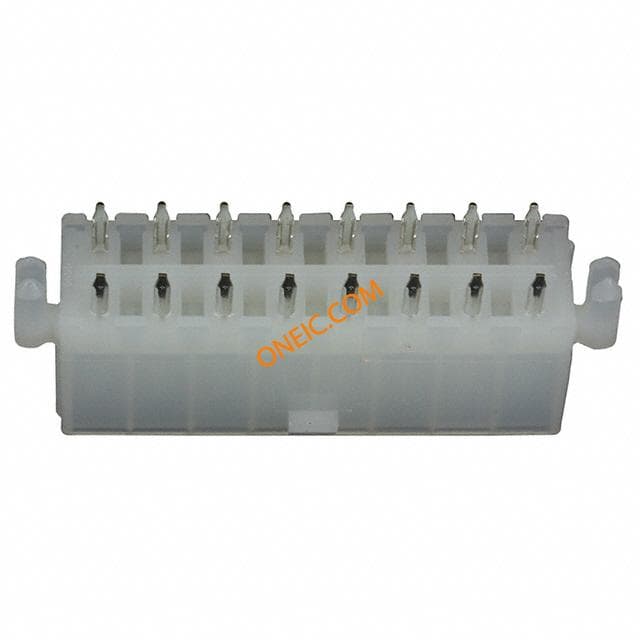

0039299163
Molex
Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 16POS 4.2MM VERT TIN
0039301161
Molex
Conn Wire to Board HDR 16 POS 4.2mm Solder RA Thru-Hole Bulk CONN HEADER 16POS 4.2MM R/A GOLD
0039293166
Molex
Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole CONN HEADER 16POS 4.2MM VERT TIN
0460151603
Molex Inc
CONN HEADER 16POS DUAL

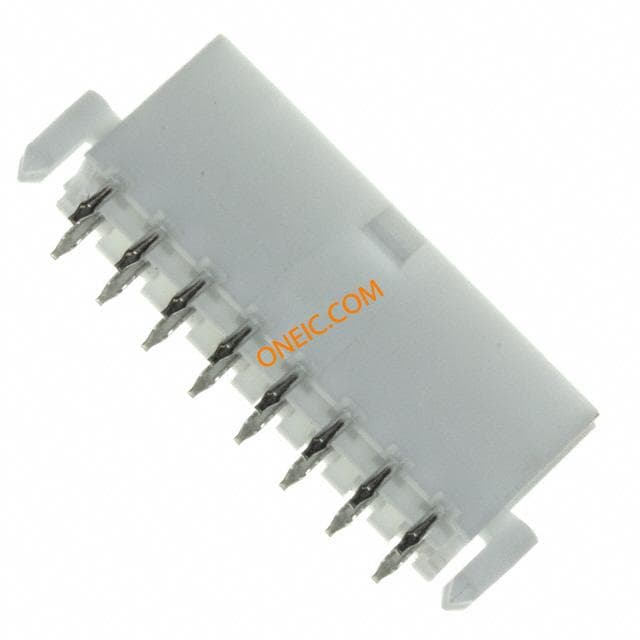

39-29-9166
Molex Connector Corporation
CONN HEADER 16POS 4.2MM VERT TIN Headers & Wire Housings 16 CKT VERT HEADER Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole Tray

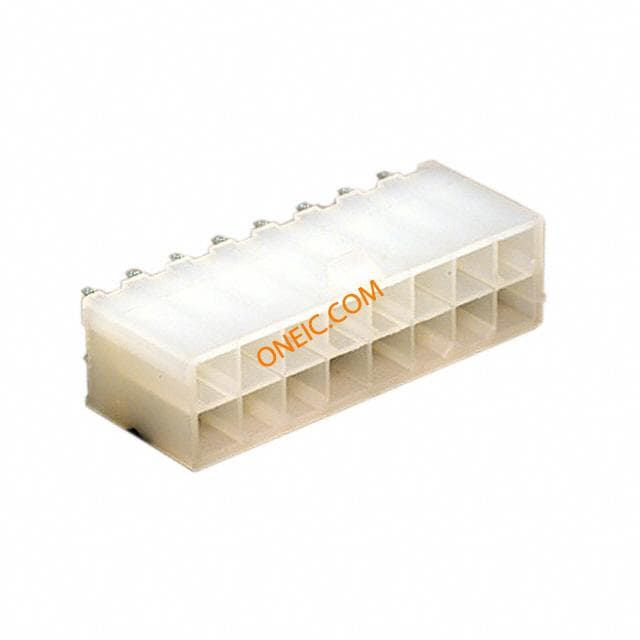

44472-1654
Molex Connector Corporation
CONN HEADER 16POS 4.2MM VERT TIN Headers & Wire Housings 4.20MM MINI FIT Vertical 16 CKT Conn Power HDR 16 POS 4.2mm Solder ST Thru-Hole 16 Terminal 1 Port Tray

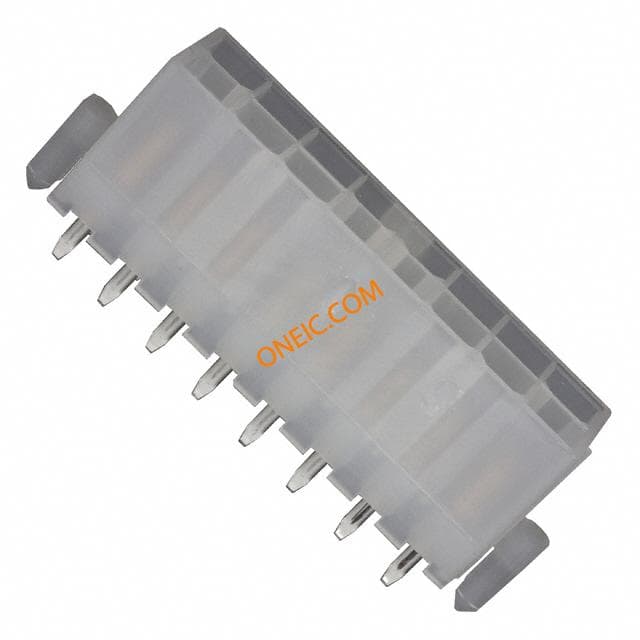

39-29-9164
