点击放大查看
0039012125
| Manufacturer | |
| Description | Conn Housing F 12 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 12POS DUAL |
| Category |
Business
| Lead Time | 22 Days | Subcategory | Connector Discrete Wire Housing |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 9/Contact A | Voltage - Input (Min) | 600VDC|600VAC |
| Voltage - Supply (Min) | 600VDC/600VAC | ||
Mechanical
| Color | Natural | Depth | 19.6 mm |
| Pitch | 0.165" (4.20mm) | Height | 15.1 mm |
| Packaging | Bag | Row Spacing | 0.165" (4.20mm) |
| Contact Type | Female Socket | Housing Color | Ivory |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Number of Rows | 2 |
| Housing Material | Nylon 66 | Length - Overall | 26.4 mm |
| Number of Contacts | 12 | Contact Termination | Crimp |
| Number of Positions | 12 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | F | Industry Aliases | 39-01-2125, 39012125 |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts

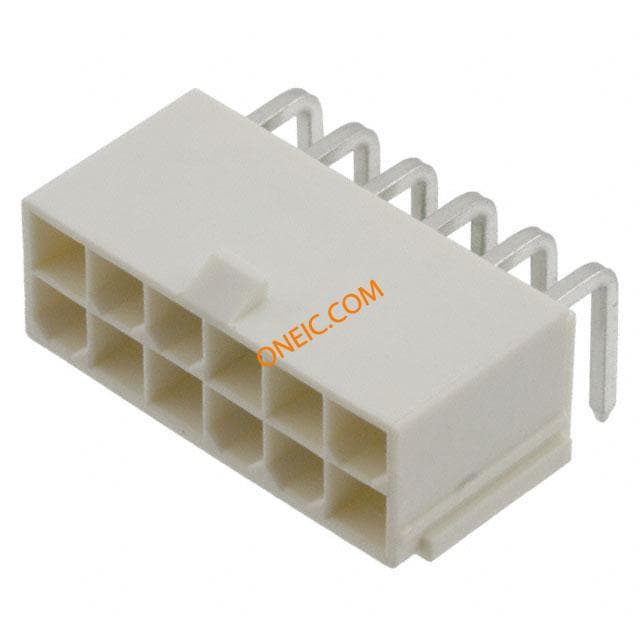

0874271202
molex
Conn Wire to Board HDR 12 POS 4.2mm Solder RA Thru-Hole Tray 4.2MM WTB RA HEADER 12CKT
0039301122
molex
Conn Wire to Board HDR 12 POS 4.2mm Solder RA Thru-Hole Tray Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM R/A GOLD
0039300120
molex
Conn Wire to Board HDR 12 POS 4.2mm Solder RA Thru-Hole Bag Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM R/A TIN
0039301120
molex
Conn Wire to Board HDR 12 POS 4.2mm Solder RA Thru-Hole Bulk CONN HEADER 12POS 4.2MM R/A TIN Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Bag
0039291128
molex
Conn Wire to Board HDR 12 POS 4.2mm Solder RA Thru-Hole Bag Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM R/A TIN

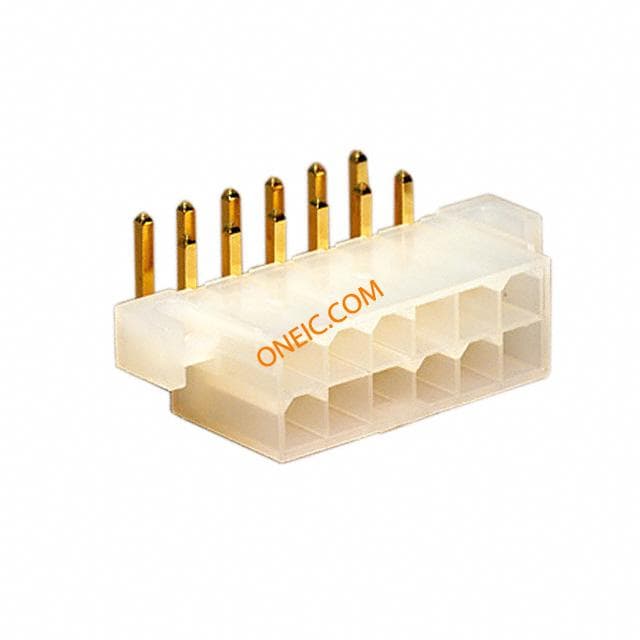

0039295123
molex
Conn Wire to Board HDR 12 POS 4.2mm Solder RA Thru-Hole Bag Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM R/A GOLD
39-01-3123
molex
Conn Housing M 12 POS 4.2mm Crimp ST Cable Mount Bag CONN PLUG 12POS VERT DUAL 4.20mm,housing,MiniFit,plug,nylon,DR,12w Headers & Wire Housings 12 CKT PLUG HOUSING PLUG & SOCKET HOUSING, PLUG, NYLON HOUSING, 4.2MM, 12WAY MiniFitJrPlg FreeHng /DH V-2 12Ckt Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 公 压接连接器外壳
39-01-2121
molex
Conn Housing M 12 POS 4.2mm Crimp ST Panel Mount Bag CONN PLUG 12POS PANEL MOUNT 12 way dual row panel mount plug Headers & Wire Housings 12 CKT PLUG HOUSING HOUSING, PLUG, DUAL ROW, 12 WAY, NYLON PLUG HOUSING-PANEL MOUNT; 94V-2; 12 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 公 面板安装 压接连接器外壳
0039299123
Molex
Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Tray CONN HEADER 12POS 4.2MM VERT TIN
0039293126
Molex
Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM VERT TIN
0039299127
Molex
Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Tray CONN HEADER 12POS 4.2MM VERT TIN
0039299122
Molex
Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Tray CONN HEADER 12POS 4.2MM VERT TIN
0039301121
Molex
Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM R/A GOLD
0039296128
Molex
Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM VERT GOL
0442810005
Molex
Conn Power PL 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Bag MINIFIT CONTINUITY TST PLG DR
39-01-3129
Molex Connector Corporation
CONN PLUG 12POS VERT DUAL 4.20mm,housing,MiniFit,plug,nylon,DR,12w Headers & Wire Housings 12 CKT PLUG HOUSING Conn Housing PL 12 POS 4.2mm Crimp ST Bag HOUSING, 4.2MM, 12WAY PLUG HOUSING-FREE HANGING; 94V-0; 12 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 公 压接连接器外壳
39-01-2126
Molex Connector Corporation
CONN PLUG 12POS PANEL MOUNT 4.20mm,housing,MiniFit,plug,DR,12w Headers & Wire Housings 12 CKT PLUG HOUSING Conn Housing M 12 POS 4.2mm Crimp ST Panel Mount Bag PLUG, MINI-FIT, DUAL ROW, PNL MT, 12WAY PLUG HOUSING-PANEL MOUNT; 94V-0; 12 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 公 压接连接器外壳
39-29-9124
Molex Connector Corporation
CONN HEADER 12POS 4.2MM STR GOLD Headers & Wire Housings MFJ 12P V HDR DR SAU Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Tray
39-28-9128
Molex Connector Corporation
CONN HEADER 12POS 4.2MM STR GOLD Molex 5566 Series 4.2mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 9A Headers & Wire Housings 12 CKT VERT HEADER Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Tray Molex MINI-FIT JR. 系列 4.2mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 9A , 通孔

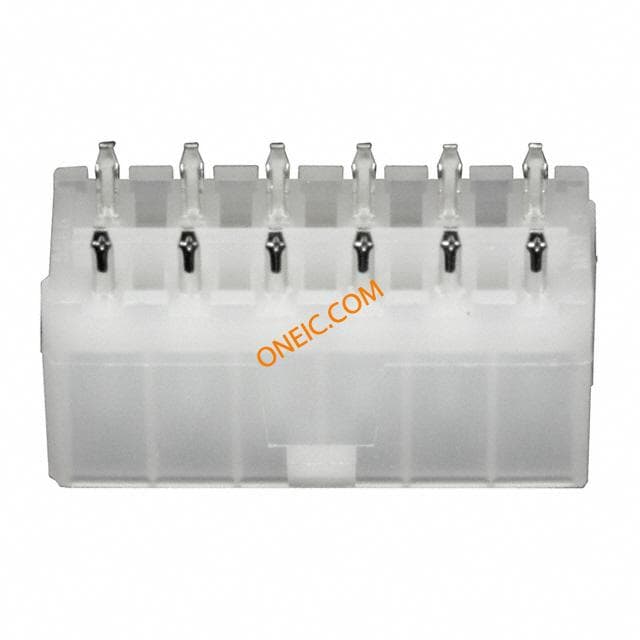

44472-1254
