0010897201
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 20POS .100 SRT TIN |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 15 | Current Rating (Max) | 3/Contact |
| Voltage - Input (Min) | 250V | ||
Mechanical
| Color | Black | Depth | 5.08 |
| Pitch | 0.100" (2.54mm) | Height | 8.39 |
| Packaging | Bag | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Unshrouded, Breakaway | Contact Finish | Tin Over Nickel |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer | Length - Overall | 25.4 |
| Number of Contacts | 20 | Number of Positions | 20 |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness | 150µin (3.81µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts

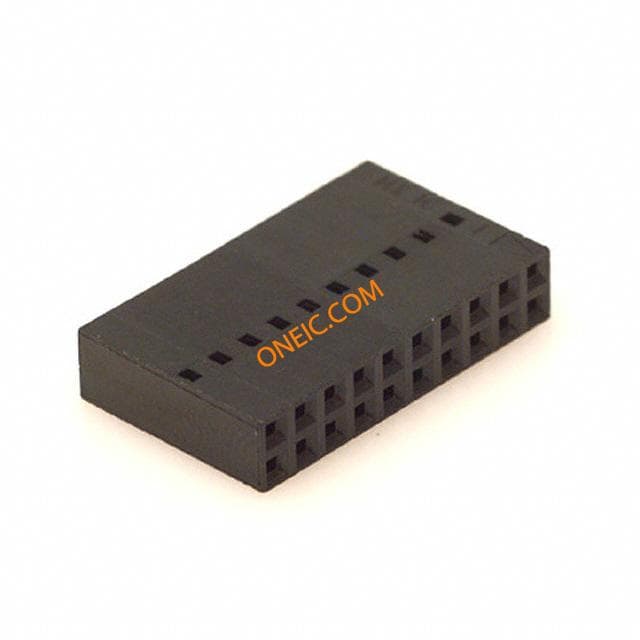

0022552201
