03-06-2152
| Manufacturer | |
| Description | CONN PLUG 15POS .062 Molex 3.68mm 15 Way 3 Row Straight Male Housing Receptacle Pin & Socket Connectors 15 CIRCUIT PLUG Conn Housing PL 15 POS 3.68mm ST Bag 1.57mm Diameter Standard .062" Pin and Socket Plug Housing, 15 Circuits, without Mounting Ears CONNECTOR, PLUG MULTIPOLE TERMINAL HOUSE; MINI; PLUG W/DTENT WNDWS; 15 CIRCUITS Molex STANDARD .062" 系列 3 行 3.68mm 节距 15 路 直 公 电缆安装 压接连接器外壳 |
| Category |
Business
| Tradename | Standard .062 in | Part # Aliases | 0003062152 03-06-2152-PB 1625-15P1 3062152 |
| Product Category | Pin & Socket Connectors | Standard Package | 5 |
| Factory Pack Quantity | 2500 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency Marking | CSA, UL | Material Flammability Rating | UL94V-2 |
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Color | Natural | Pitch | 0.145" (3.68mm) |
| Height | 15mm | Weight | 0.00227 |
| Packaging | Bulk | Row Spacing | 0.145" (3.68mm) |
| Termination | Crimp | Contact Type | Male or Female |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Connector Type | Plug | Fastening Type | Detent Lock |
| Mounting Style | Free Hanging | Number of Rows | 3 |
| Housing Material | Nylon | Length - Overall | 0.75 " |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :Natural | Number of Contacts | 15 |
| Contact Termination | Crimp | Number of Positions | 15 |
| Mounting Hole Diameter | 1.032×0.62 " | ||
Product Info
| Note | Contacts Not Provided | Type | Plug |
| Gender | Male | Series | 1625 |
| CAD Drawing | 3D CAD Model | Manufacturer | 1625 Series |
| Product Type | Plug Housings | For Use With/Related Products | :1560, 1561, 1786, 1854 Crimp Terminals |
Environmental
| Operating Temperature | -40 to +105 °C | ||
Documents & Media
Similar Parts
0002061101
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0002061132
Molex, LLC
. 0002061132 - Socket Contact Tin 24-30 AWG Crimp Power from Molex. from now!
0002062101
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-24AWG TIN
0002062103
Molex, LLC
. 0002062103 - Pin Contact Tin 18-24 AWG Crimp Power from Molex. from now!
0002067103
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE SOLDER TIN PCB Conn Contact F 1 POS Solder ST Thru-Hole Bag
0002065100
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG GOLD
0002068103
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE SOLDER TIN PCB Conn Contact M 1 POS Crimp ST Cable Mount Bag
02-06-5102
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG GOLD Crimp term 1.57mm,female,18-24AWG,Au,bag Pin & Socket Connectors SOCKET 18-24AWG BULK Molex STANDARD .062" 系列 母 压接接线端子, 压接, 镀金镀镍触点
02-06-7104
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE SOLDER GOLD PCB Pin & Socket Connectors PC TAIL TERMINAL female
0002061131
Molex, LLC
. 0002061131 - Socket Contact Tin 24-30 AWG Crimp Power from Molex. from now!
02-06-6135
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 24-30AWG GOLD Crimp 1.57mm,male,24-30 AWG,gold,bag Pin & Socket Connectors TERMINAL 24-30 BULK CONTACT, MALE, 30-24AWG, CRIMP 062 Male Term Loose 15 SAu 24-30 Molex STANDARD .062" 系列 公 压接接线端子, 压接, 镀金镀镍触点
0002061103
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG TIN
0039000336
Molex
Contact PIN Crimp ST Cable Mount Reel .062DIA CRIMP PIN
0002062132
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 24-30AWG TIN
0002065103
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG GOLD
03-06-1152
Molex Connector Corporation
CONN RECEPTACLE 15POS .062 Molex 3.68mm 15 Way 3 Row Straight Cable Mount Female Housing Receptacle Pin & Socket Connectors 15C RECEPTACLE Conn Housing RCP 15 POS 3.68mm Crimp ST Cable Mount Bag PLUG & SOCKET HOUSING, RECEPTACLE, NYLON TERMINAL HOUSE; MINI; RECEPTCL W/DTENT WNDWS; 15 CIRCUITS Molex STANDARD .062" 系列 3 行 3.68mm 节距 15 路 直 母 电缆安装 压接连接器外壳

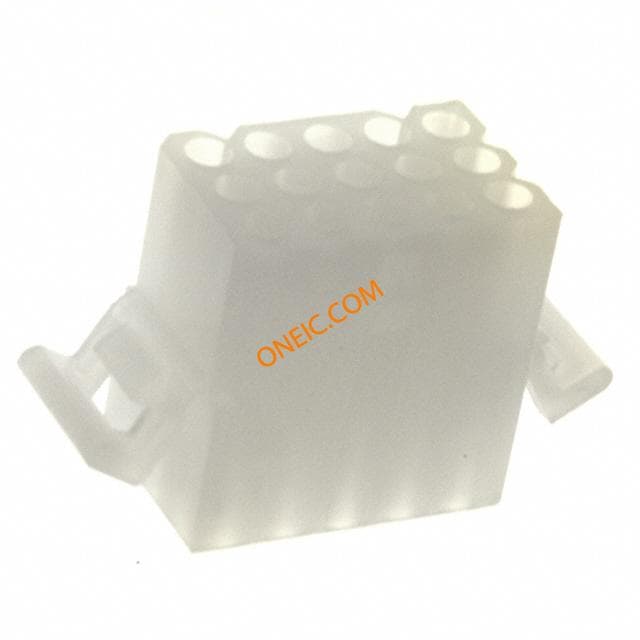

03-06-6155
