03-06-1062
| Manufacturer | |
| Description | CONN RECEPTACLE 6POS .062 Molex 3.68mm 6 Way 3 Row Straight Female Housing Receptacle Pin & Socket Connectors 6 CIRCUIT RECEPTACLE Conn Housing RCP 6 POS 3.68mm Crimp ST Bag CONNECTOR, MULTIPOLE, 6WAY TERMINAL HOUSE; MINI; RECEPTCL W/DTENT WNDWS; 6 CIRCUIT Molex STANDARD .062" 系列 3 行 3.68mm 节距 6 路 直 母 电缆安装 压接连接器外壳 |
| Category |
Business
| Tradename | Standard .062 in | Part # Aliases | 0003061062 1625-6R1 3061062 |
| Product Category | Pin & Socket Connectors | Standard Package | 5 |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Approval Agency Marking | CSA, UL, TUV |
| Material Flammability Rating | UL94V-2 | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 5A |
Mechanical
| Color | Natural | Pitch | 0.145" (3.68mm) |
| Height | 12.5mm | Weight | 1.7 |
| Packaging | Bulk | Row Spacing | 0.145" (3.68mm) |
| Termination | Crimp | Contact Type | Male or Female |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Connector Type | Receptacle | Fastening Type | Locking Ramp |
| Mounting Style | Free Hanging | Number of Rows | 3 |
| Housing Material | Nylon | Length - Overall | 0.78 " |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 6 | Contact Termination | Crimp |
| Number of Positions | 6 | Mounting Hole Diameter | 0.505×0.552 " |
Product Info
| Note | Contacts Not Provided | Type | Socket |
| Gender | Female | Series | 1625 |
| CAD Drawing | 3D CAD Model | Manufacturer | 1625 Series |
| Product Type | Receptacle Housings | For Use With/Related Products | :1560, 1561, 1786, 1854 Crimp Terminals |
Environmental
| Operating Temperature | -40 to +105 °C | ||
Documents & Media
Similar Parts
0002061101
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0002061132
Molex, LLC
. 0002061132 - Socket Contact Tin 24-30 AWG Crimp Power from Molex. from now!
0002062101
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-24AWG TIN
0002062103
Molex, LLC
. 0002062103 - Pin Contact Tin 18-24 AWG Crimp Power from Molex. from now!
0002067103
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE SOLDER TIN PCB Conn Contact F 1 POS Solder ST Thru-Hole Bag
0003062061
molex
Conn Housing PL 6 POS 3.68mm Crimp ST Bag CONN PLUG 6POS .062
0002065100
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG GOLD
0002068103
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE SOLDER TIN PCB Conn Contact M 1 POS Crimp ST Cable Mount Bag
02-06-5102
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG GOLD Crimp term 1.57mm,female,18-24AWG,Au,bag Pin & Socket Connectors SOCKET 18-24AWG BULK Molex STANDARD .062" 系列 母 压接接线端子, 压接, 镀金镀镍触点
02-06-7104
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE SOLDER GOLD PCB Pin & Socket Connectors PC TAIL TERMINAL female
0002061131
Molex, LLC
. 0002061131 - Socket Contact Tin 24-30 AWG Crimp Power from Molex. from now!
02-06-6135
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 24-30AWG GOLD Crimp 1.57mm,male,24-30 AWG,gold,bag Pin & Socket Connectors TERMINAL 24-30 BULK CONTACT, MALE, 30-24AWG, CRIMP 062 Male Term Loose 15 SAu 24-30 Molex STANDARD .062" 系列 公 压接接线端子, 压接, 镀金镀镍触点
0002061103
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG TIN
0002062132
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 24-30AWG TIN
0039000339
Molex
Contact SKT Crimp ST Cable Mount Bag .062DIA CRIMP REC 1855TL
0002065103
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG GOLD

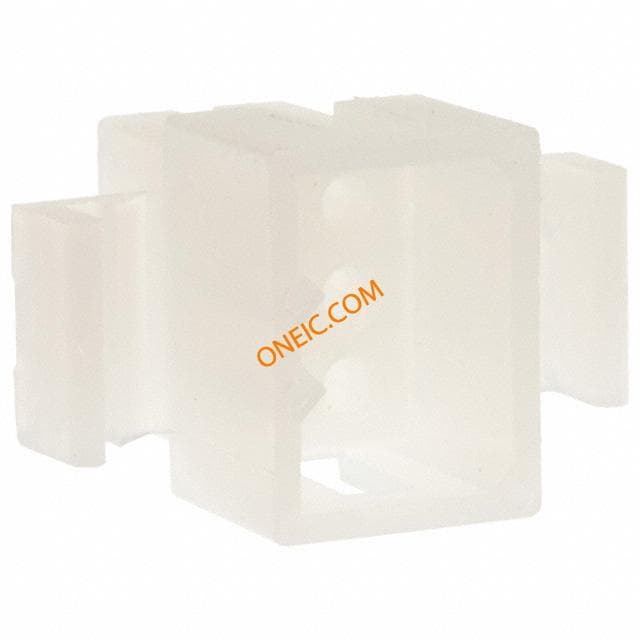

03-06-2062
