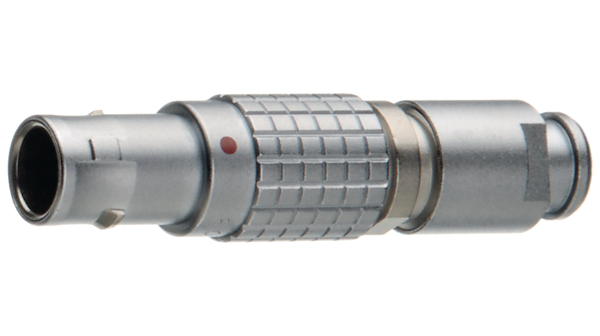

FGG.0B.304.CLAD52
| Manufacturer | |
| Description | Circular Push Pull Connectors 4 PIN CONNECTOR CONN INLINE PLUG 4PIN SLD CUP 4 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Cable plug, B series, 4-pole Poles=4, FGG.0B.304.CLAD52, Lemo Lemo 0B 系列 4路 电缆安装 直向 连接器 插头 , 公触点 |
| Category |
Business
| Lead Time | 98 Days | Subcategory | Connector Circular |
| Product Category | Circular Push Pull Connectors | Standard Package | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Number of Poles | 4 | Current Rating (Max) | 7A |
| Current Rating - Appliance Inlet | 6 | Voltage - Protection Level (VP) (2416) | IP 50 |
Mechanical
| Packaging | Bulk | Wire Gauge | 22 |
| Orientation | G | Shell Style | Plug |
| Termination | Solder Cup | Weight (g): | 35.65359 |
| Contact Type | 公插 | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Chrome | Cable End Type | 4.1...5 mm |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | Cable |
| Shell Material | Metal | Locking Feature | Push-Pull |
| Contact Material | Brass | Housing Material | Brass (CuZn) |
| Termination Rows | 焊接 | Termination Style | Solder |
| 1st Contact Gender | Male | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Size - Insert | 304 |
| 1st Connector Gender | Male | Shell Material, Finish | Brass, Chrome Plated |
Product Info
| Design | Cable plug | Gender | Male |
| Series | B | Features | Shielded |
| CAD Drawing | 3D CAD Model | Description | No assembly option for anti-kink sleeve |
| Main Purpose | Shielded | Product Type | Connectors |
| Connection Method | 0.34 | Output Configuration | Free Hanging (In-Line) |
Environmental
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
