点击放大查看

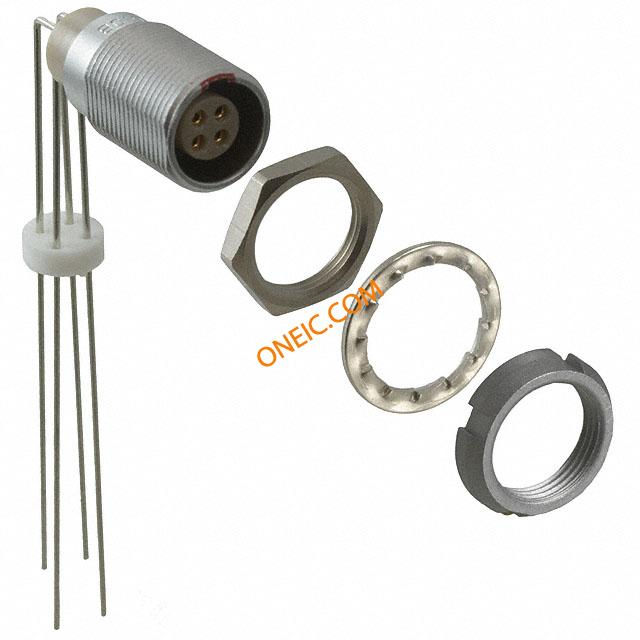

ECG.0B.304.CLV
| Manufacturer | |
| Description | Circular Push Pull Connectors 4P FEMALE R/A PCB R/A PANEL MOUNT CONN PNL MNT RCPT 4SKT R/A PCB SOCKET, PANEL MOUNT, 0B, R/A, 4WAY |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | :460V | Voltage - Working | :280V |
| Contact Resistance | :5.6mohm | Dielectric Strength | :19V/m |
| Current Rating (Max) | 6A | ||
Mechanical
| Weight | 0.005 | Packaging | Bulk |
| Shell Size | 0 | Orientation | G |
| Shell Style | Receptacle | Termination | Solder |
| Weight (g): | 8.80000 | Mounting Type | Panel Mount, Bulkhead; Through Hole, Right Angle |
| Shell Plating | Chrome | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Plating - Body | :Nickel | Shell Material | Metal |
| Insertion Angle | :- | Material - Body | :Brass |
| Contact Material | :Bronze | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 4 |
| Contact Termination | :Solder | Number of Positions | 4 |
| Shell Size - Insert | 304 | Shell Material, Finish | Brass, Chrome Plated |
| Contact Material - Mating | :Bronze | 1st Connector Mounting Type | :Panel |
| Contact Finish - Post (Mating) | :Gold | ||
Product Info
| Gender | :Receptacle | Series | B |
| Features | Shielded | Product Type | Connectors |
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP66 |
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
