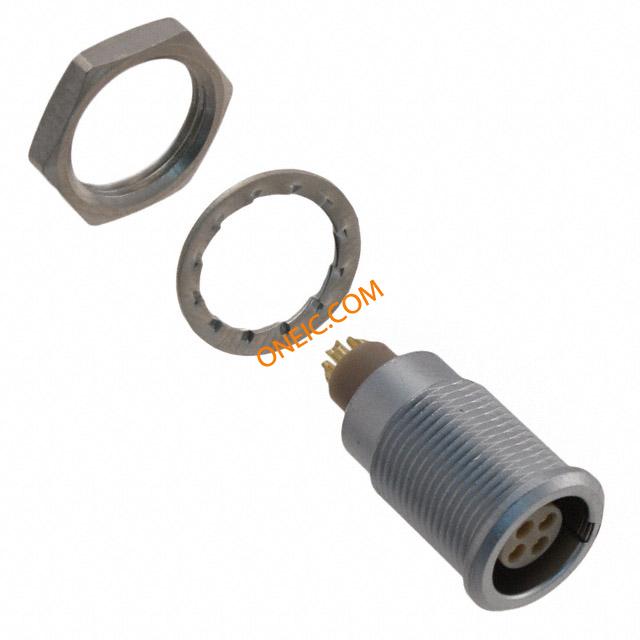

EGG.0B.304.CLL
| Manufacturer | |
| Description | Circular Push Pull Connectors RECP SIZE 0 4-pin FEMALE SLDR CONN PNL MNT RCPT 4SKT SLD CUP 4 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts CIRCULAR CONNECTOR, RCPT, 4 WAY, PANEL 4POLEPANELMOUNTSKT Socket; Connector: circular; 0B; female; PIN:4; 7A; 700V; soldering Device socket, B-series 4-pin Poles=4, EGG.0B.304.CLL, Lemo Lemo 0B 系列 4路 面板安装 直向 连接器 插座 |
| Category |
Business
| Lead Time | 27 Days | Subcategory | Connector Circular |
| Product Category | Circular Push Pull Connectors | Standard Package | 250 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Test | 700V | Voltage Rating | :460V |
| Voltage - Working | :280V | Current Rating (Max) | 7A |
Mechanical
| Weight | 0.003 | Packaging | Bulk |
| Orientation | G | Shell Style | Receptacle |
| Termination | Solder Cup | Weight (g): | 52.80000 |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Shell Plating | Chrome Plated |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | for panel mounting |
| Plating - Body | :Nickel | Insertion Angle | :304 |
| Material - Body | :Brass | Contact Material | :- |
| Package Quantity | 2 | Connector - Cable | socket |
| Termination Style | Solder | 1st Contact Gender | Female |
| Number of Contacts | 4 | Contact Termination | :Solder |
| Number of Positions | 4 | Shell Size - Insert | 304 |
| Material - Insulation | :PEEK (Polyether Ether Ketone) | Shell Material, Finish | Brass, Chrome Plated |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Spg | 2 | Gender | Female |
| Series | B | Features | Shielded |
| Product Type | Connectors | Adapter Series | 0B |
| Number of Units | 1 | ||
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP50 |
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
Documents & Media
Similar Parts
FGG.0B.731.DN
LEMO
Circular Push Pull Connectors 2.1mm to 3.0mm dia. COLLET FOR 0B OBCOLLET2.1MMTO3.0MM
FGG.0B.304.CLAD52
LEMO
Circular Push Pull Connectors 4 PIN CONNECTOR CONN INLINE PLUG 4PIN SLD CUP 4 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Cable plug, B series, 4-pole Poles=4, FGG.0B.304.CLAD52, Lemo Lemo 0B 系列 4路 电缆安装 直向 连接器 插头 , 公触点

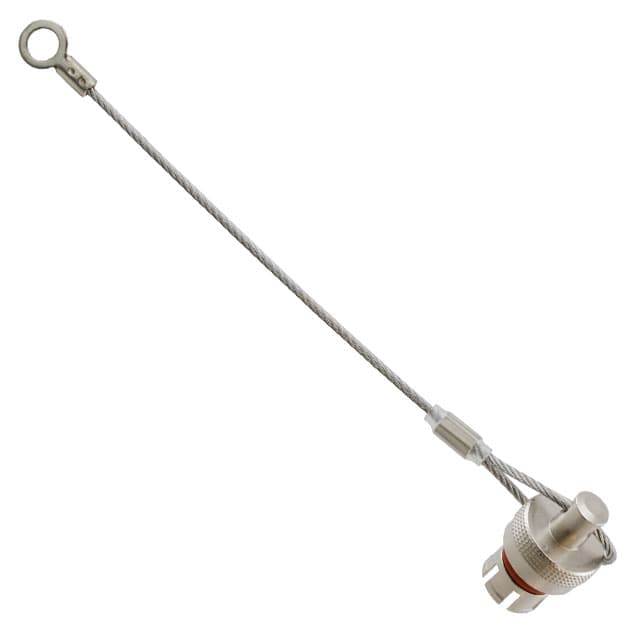

BRE.0S.200.NAS
