点击放大查看

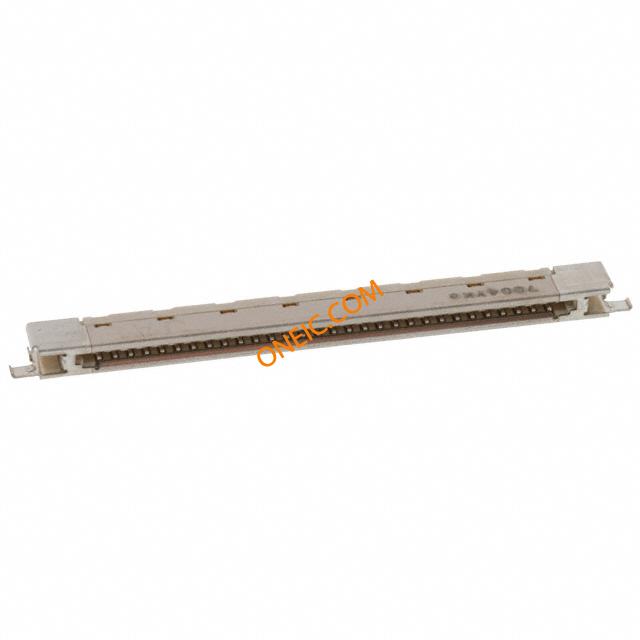

FI-X30SSL-HF
| Manufacturer | |
| Description | FFC & FPC Connectors 30P RT ANGLE RECEPT CONN RCPT 1MM 30POS SMD R/A LOWPROFILEPCBTOCABLERECEPTACLE,1MMPITCH,30CONTACTS |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 670-1219 | Standard Package | 33 |
Compliance
| RoHS | RoHS Compliant Part | Material Flammability Rating | UL94V-0 |
Electrical
| Current Rating (Max) | 1A | ||
Mechanical
| Color | Beige | Pitch | 0.039" (1.00mm) |
| Packaging | Tray | Cable Exit | LowProfile |
| Termination | Solder | Contact Type | Female Socket |
| Length - Pin | 1.5mm | Mounting Type | Surface Mount, Right Angle |
| Angle of Throw | Right | Connector Type | Receptacle |
| Contact Finish | Gold | Housing Finish | Tin |
| Number of Rows | 1 | Contact Material | CopperAlloy |
| Housing Material | Plastic | Length - Overall | 40.05mm |
| Primary Material | BoardtoCable | Pin Hole Diameter | 1mm |
| Number of Contacts | 30 | Number of Positions | 30 |
| Contact Finish Thickness | 3.9µin (0.10µm) | ||
Product Info
| Type | CableSocket | Features | Solder Retention |
| Manufacturer | FISeries | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40to+80°C | ||
Documents & Media
PDF Document
PDF Document
