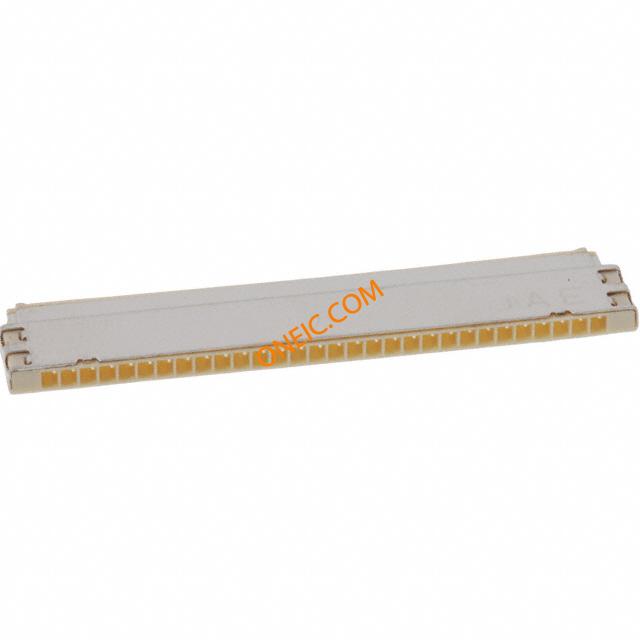

FI-X30H
| Manufacturer | |
| Description | FFC & FPC Connectors 30P CRIMP PLUG HOUSING CONN PLUG HOUSING 1MM 30POS LOWPROFILEPCBTOCABLEPLUG,1MMPITCH,30CONTACTS 30P PLUG HOUSING 1,00MM |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | FFC & FPC Connectors | Standard Package | 100 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current Rating (Max) | 1 A | Insulation Resistance | 100 MOhms |
Mechanical
| Pitch | 0.039" (1.00mm) | Packaging | Bulk |
| Cable Exit | LowProfile | Termination | Screw |
| Contact Type | Male Pin | Pitch - Post | FEMALE |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Connector Type | Plug | Housing Finish | Tin |
| Number of Rows | 1 | Housing Material | Nylon |
| Length - Overall | 33.3mm | Primary Material | BoardtoCable |
| Pin Hole Diameter | 1mm | Termination Style | SMD |
| Number of Contacts | 30 | Contact Termination | Crimp |
| Number of Positions | 30 | Contact Layout, Typical | Bottom Contact |
| Contact Material - Plating | STRAIGHT | ||
Product Info
| Note | Contacts Not Provided | Type | CablePlug |
| Series | FI-X | Features | Shielded |
| Manufacturer | FISeries | Product Type | Free Hanging |
| Accessory Type | Cable Side Plug Housings | ||
Environmental
| Temperature Range | - 40 C to + 80 C | Operating Temperature | -40to+80°C |
Documents & Media
PDF Document
PDF Document
Similar Parts
FI-X30S-HF-NPB
JAE Electronics
FFCおよびFPC コネクタ 1.0MM 30P RECEPT RT ANGLE CONN RCPT 1MM 30POS SMD R/A
Details
FI-X30SSL-HF
JAE Electronics
FFC & FPC Connectors 30P RT ANGLE RECEPT CONN RCPT 1MM 30POS SMD R/A LOWPROFILEPCBTOCABLERECEPTACLE,1MMPITCH,30CONTACTS
Details
FI-XB30S-HF10-NPB
JAE Electronics
FFC & FPC Connectors 1.0MM 30P RECEPT RT ANGLE CONN RCPT 1MM 30POS SMD R/A
Details

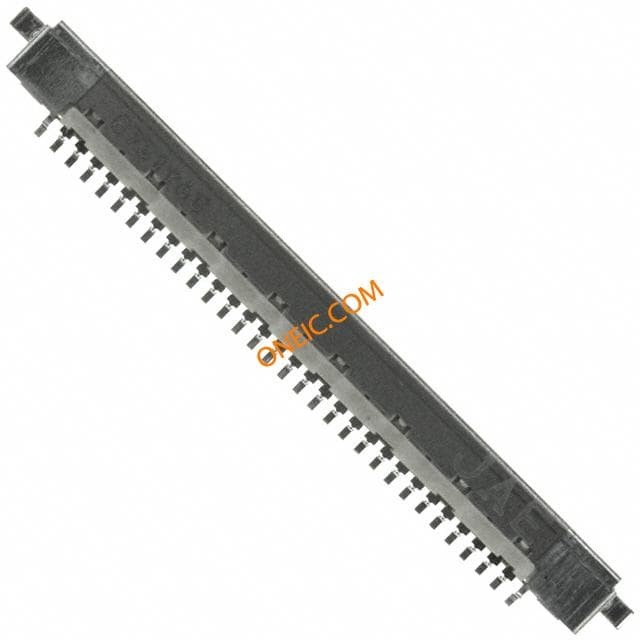

FI-X30SSL-HF-R2500
