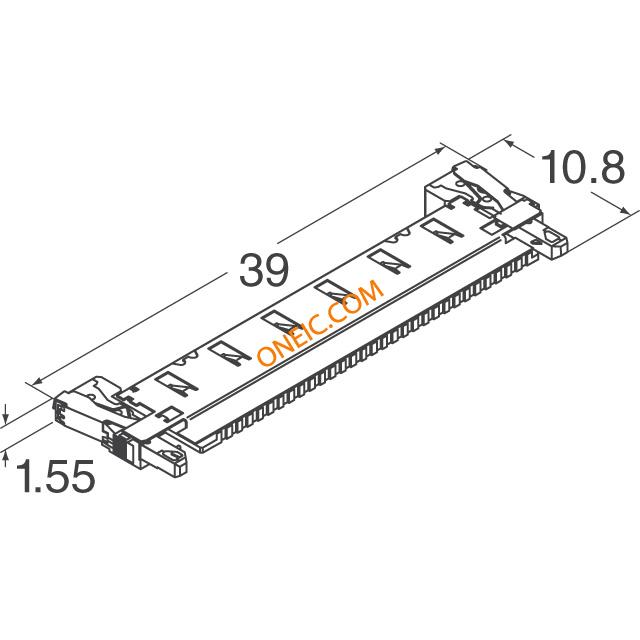

FI-X30HL
| Manufacturer | |
| Description | FFC & FPC Connectors 30P Cable Plug Housing CONN PLUG HSNG LEVER 1MM 30POS LOWPROFILEPCBTOCABLEPLUG,1MMPITCH,30CONTACTS 30 WAY CONNECTOR |
| Category |
Business
| Product Category | FFC & FPC Connectors | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Beige | Pitch | 0.039" (1.00mm) |
| Packaging | Bulk | Cable Exit | LowProfile |
| Termination | Screw | Contact Type | Male Pin |
| Pitch - Post | FEMALE | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Plug |
| Contact Finish | Gold | Fastening Type | Latch Lock |
| Housing Finish | Tin | Mounting Style | Cable |
| Number of Rows | 1 | Contact Material | Copper Alloy |
| Housing Material | Plastic | Length - Overall | 38.8mm |
| Primary Material | BoardtoCable | Pin Hole Diameter | 1mm |
| Termination Style | Crimp | Number of Contacts | 30 |
| Contact Termination | Crimp | Number of Positions | 30 |
| Switch Actuation Level | ZIF | Contact Layout, Typical | Bottom Contact |
Product Info
| Note | Contacts Not Provided | Type | CablePlug |
| Series | FI-X | Manufacturer | FISeries |
| Product Type | Free Hanging | ||
Environmental
| Operating Temperature | -40to+80°C | ||
