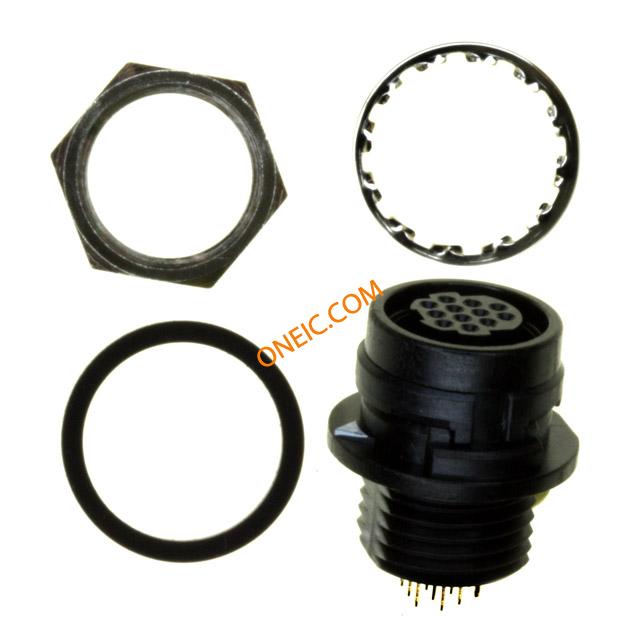

HR30-8R-12SD(71)
| Manufacturer | |
| Description | Circular Push Pull Connectors 12P REC SHELL SZ 8 FEMALE PCB TH-HOLE CONN RECEPT 12POS FEMALE T/H Hirose HR30 Series 12 Way Straight Female Through Hole Miniature Connector, 2A Hirose HR30系列 12路 直向 通孔 插座, 2A |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 20 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 30VAC, 42VDC | Current Rating (Max) | 2A |
Mechanical
| Packaging | Tray | Shell Size | 8 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder | Mounting Type | Panel Mount, Bulkhead; Through Hole |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | Panel |
| Shell Material | Plastic | Contact Material | Brass, Phosphor Bronze |
| Termination Rows | 焊接 | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 12 |
| Number of Positions | 12 | Shell Size - Insert | 8 |
| Shell Material, Finish | Polyphenylene Sulfide (PPS) | ||
Product Info
| Gender | Female | Series | HR30 |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -25°C ~ 85°C |
