HR30-8P-12PC(71)

Manufacturer	Hirose Electric Co., Ltd.
Description	Circular Push Pull Connectors 12P PLUG SHELL SZ 8 MALE CRIMP CONN PLUG 12POS MALE CRIMP Hirose HR30 Series 12 Way Straight Male Cable Mount Miniature Connector, 2A Hirose HR30系列 12路直向电缆安装插头, 2A
Category	Connector SolutionsCircular ConnectorsIndustrial Circular Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Circular Push Pull Connectors	Standard Package	50
Factory Pack Quantity	1

Compliance

RoHS

Compliant

Electrical

Voltage Rating

30 V ac

Current Rating (Max)

Mechanical

Packaging	Tray	Shell Size	8
Orientation	Keyed	Shell Style	Plug
Termination	Crimp	Contact Type	Crimp
Mounting Type	Free Hanging (In-Line)	Shell Plating	Gold
Connector Type	Plug for Male Contacts	Contact Finish	Gold
Fastening Type	Push-Pull	Mounting Style	Cable
Shell Material	Plastic	Contact Material	Brass, Phosphor Bronze
Termination Rows	压接	Termination Style	Crimp
1st Contact Gender	Pin (Male)	Number of Contacts	12
Number of Positions	12	Shell Size - Insert	8
Shell Material, Finish	Polyphenylene Sulfide (PPS)

Product Info

Note	Contacts Not Provided	Gender	Male
Series	HR30	Features	Strain Relief
Product Type	Connectors

Environmental

Ingress Protection

IP68 - Dust Tight, Waterproof

Operating Temperature

+85°C

Documents & Media

PDF Document

e13000041.pdf

Similar Parts

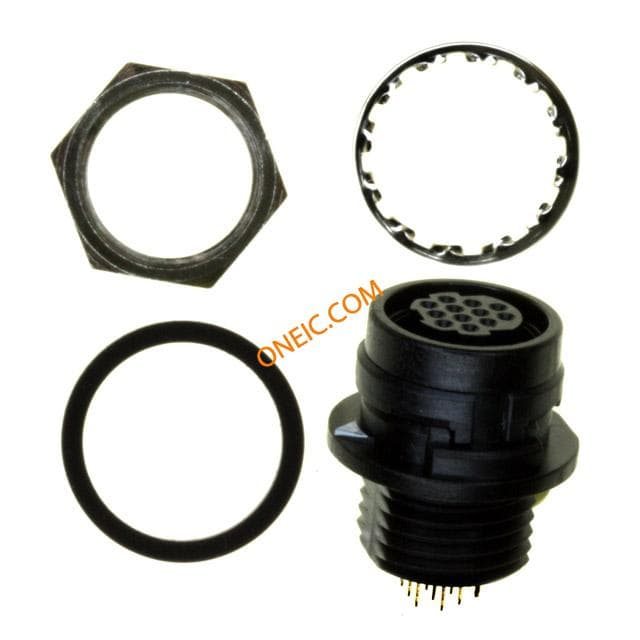

HR30-8R-12SD(71)
