HR30-8PB-12PC

Manufacturer	Hirose Electric Co., Ltd.
Description	Circular Push Pull Connectors 12P PLG SHELL SZ 8 MALE W/OVERMOLD SPCR CONN PLUG 12POS MALE CRIMP
Category	Connector SolutionsCircular ConnectorsIndustrial Circular Connectors

对参数有疑问？问 AI 助手

Business

Product Category

Circular Push Pull Connectors

Standard Package

Compliance

RoHS

RoHS Compliant

Mechanical

Packaging	Tray	Shell Size	8
Orientation	Keyed	Shell Style	Plug
Contact Type	Crimp	Mounting Type	Free Hanging (In-Line)
Connector Type	Plug for Male Contacts	Fastening Type	Push-Pull
Mounting Style	Cable	Termination Style	Crimp
1st Contact Gender	Pin (Male)	Number of Contacts	12
Number of Positions	12	Shell Size - Insert	8
Shell Material, Finish	Polyphenylene Sulfide (PPS)

Product Info

Note	Contacts Not Provided	Series	HR30
Features	Strain Relief	Product Type	Connectors

Environmental

Ingress Protection

IP68 - Dust Tight, Waterproof

Documents & Media

PDF Document

HR30 Overmold Wiring Procedure

PDF Document

HR30-8PB-12PC Drawing

PDF Document

HR30%20Overmold.pdf

Similar Parts

HR30-8R-12SD(71)

Hirose Connector

Circular Push Pull Connectors 12P REC SHELL SZ 8 FEMALE PCB TH-HOLE CONN RECEPT 12POS FEMALE T/H Hirose HR30 Series 12 Way Straight Female Through Hole Miniature Connector, 2A Hirose HR30系列 12路直向通孔插座, 2A

$34.0340

Details

HR30-8J-12S(71)

Hirose Connector

Circular Push Pull Connectors 12P JACK SHELL SZ 8 FEMALE TERM SOLDER CONN JACK 12POS FEMALE SOLDER Hirose HR30 Series 12 Way Straight Female Cable Mount Miniature Connector, 2A Hirose HR30系列 12路直向电缆安装插座, 2A

$65.6744

Details

HR30-8R-12SC(71)

Hirose Connector

Circular Push Pull Connectors 12P RECP SHELL SZ 8 FEMALE CRIMP CONN RECEPT 12POS FEMALE CRIMP Hirose HR30 Series 12 Way Straight Female Panel Mount Miniature Connector, 2A Hirose HR30系列 12路直向面板安装插座, 2A

$17.3400

Details

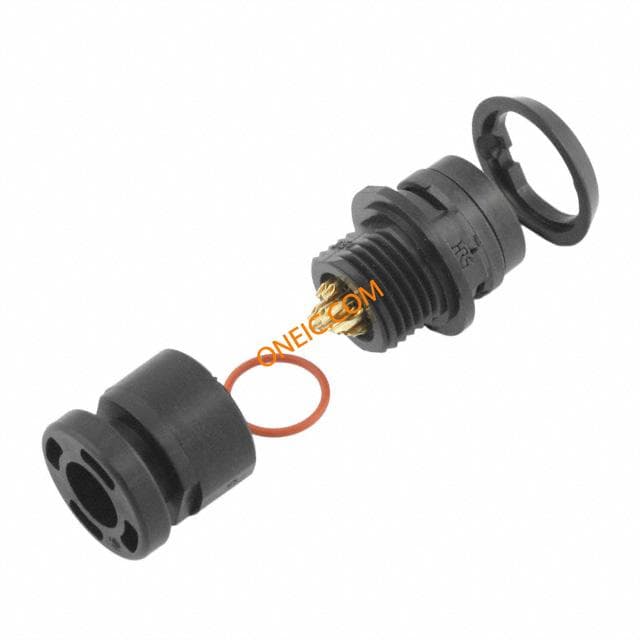

HR30-8JB-12S

Hirose Connector

Circular Push Pull Connectors 12P JCK SHELL SZ 8 FEM W/OVERMOLD SPCR CONN JACK 12POS FEMALE SOLDER

$44.4652

Details

HR30-8J-12SC(71)

Hirose Connector

Circular Push Pull Connectors 12P JACK SHELL SZ 8 FEMALE CRIMP CONN JACK 12POS FEMALE CRIMP Hirose HR30 Series 12 Way Straight Female Cable Mount Miniature Connector, 2A Conn Miniature Waterproof Plastic F 12 POS Crimp ST Cable Mount 12 Terminal 1 Port 12WFEMALEJACK-CRIMP Hirose HR30系列 12路直向电缆安装插座, 2A

$41.6500

Details

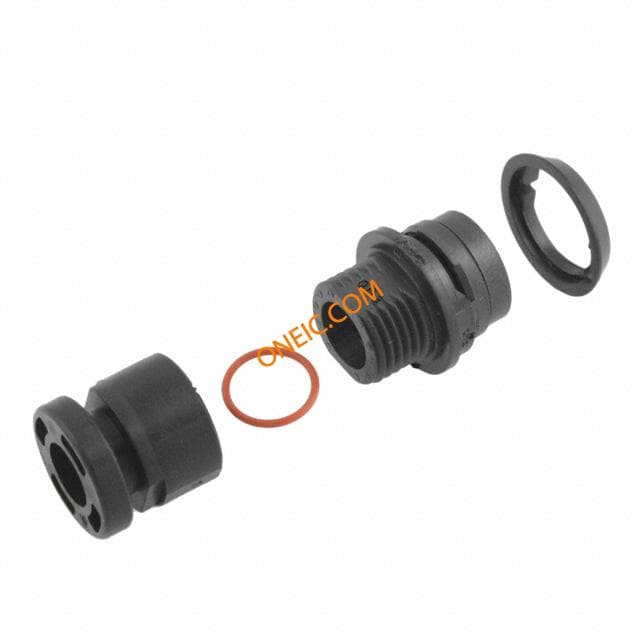

HR30-8JB-12SC
