HR30-8JB-12S
| Manufacturer | |
| Description | Circular Push Pull Connectors 12P JCK SHELL SZ 8 FEM W/OVERMOLD SPCR CONN JACK 12POS FEMALE SOLDER |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 20 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 30VAC, 42VDC | Current Rating (Max) | 2A |
Mechanical
| Packaging | Tray | Shell Size | 8 |
| Orientation | Keyed | Shell Style | Jacks |
| Termination | Solder Cup | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Jack, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | Cable |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 12 | Number of Positions | 12 |
| Shell Size - Insert | 8 | Shell Material, Finish | Polyphenylene Sulfide (PPS) |
Product Info
| Series | HR30 | Features | Strain Relief |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -25°C ~ 85°C |
Documents & Media
Similar Parts
HR30-8PB-12PC
Hirose Connector
Circular Push Pull Connectors 12P PLG SHELL SZ 8 MALE W/OVERMOLD SPCR CONN PLUG 12POS MALE CRIMP

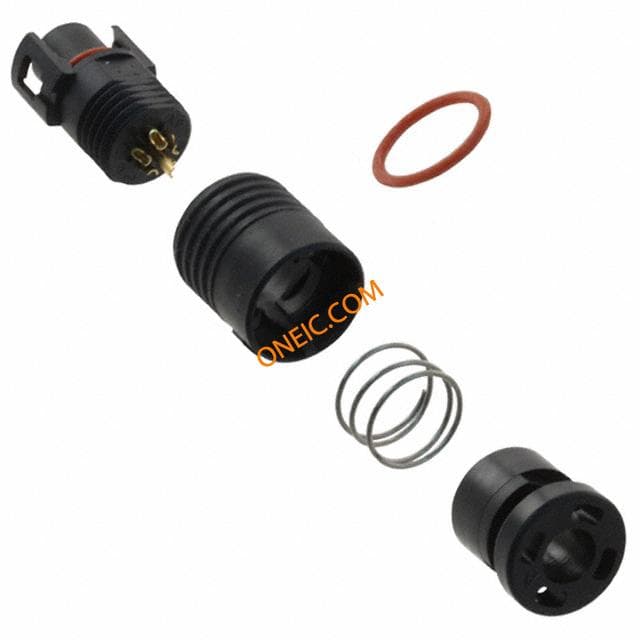

HR30-6PB-6P
