HR30-7R-12PC(71)

Manufacturer	Hirose Electric Co., Ltd.
Description	Circular Push Pull Connectors 12P RECP SHELL SZ 7 MALE CRIMP CONN RECEPT 12POS MALE CRIMP Hirose HR30 Series 12 Way Straight Female Panel Mount Miniature Connector, 2A Hirose HR30系列 12路直向面板安装插头, 2A
Category	Connector SolutionsCircular ConnectorsIndustrial Circular Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Circular Push Pull Connectors	Standard Package	50
Factory Pack Quantity	1

Compliance

RoHS

Compliant

Electrical

Voltage Rating

30 V ac

Current Rating (Max)

Mechanical

Packaging	Tray	Shell Size	7
Orientation	Keyed	Shell Style	Receptacle
Termination	Crimp	Contact Type	Crimp
Mounting Type	Panel Mount, Bulkhead - Rear Side Nut	Connector Type	Receptacle for Male Contacts
Contact Finish	Gold	Fastening Type	Push-Pull
Mounting Style	Panel	Shell Material	Plastic
Contact Material	Brass, Phosphor Bronze	Termination Rows	压接
Termination Style	Crimp	1st Contact Gender	Pin (Male)
Number of Contacts	12	Number of Positions	12
Shell Size - Insert	7	Shell Material, Finish	Polyphenylene Sulfide (PPS)

Product Info

Note	Contacts Not Provided	Gender	Female
Series	HR30	Product Type	Connectors

Environmental

Ingress Protection

IP68 - Dust Tight, Waterproof

Operating Temperature

+85°C

Documents & Media

PDF Document

e13000041.pdf

Similar Parts

HR30-7R-C(71)

Hirose Connector

Circular Push Pull Connectors CAP FOR RECP SH SZ 7 CONN DUST CAP FOR 10&12POS RECPT Dust Cap for shell size 7 receptacle Connector Accessories Receptacle Circular Cap Shell Size 7 Sealing cap for 12-pole, HR30-7R-C(71), Hirose Hirose HR30 系列插头 IP67 防尘盖, 尺寸7

$6.5872

Details

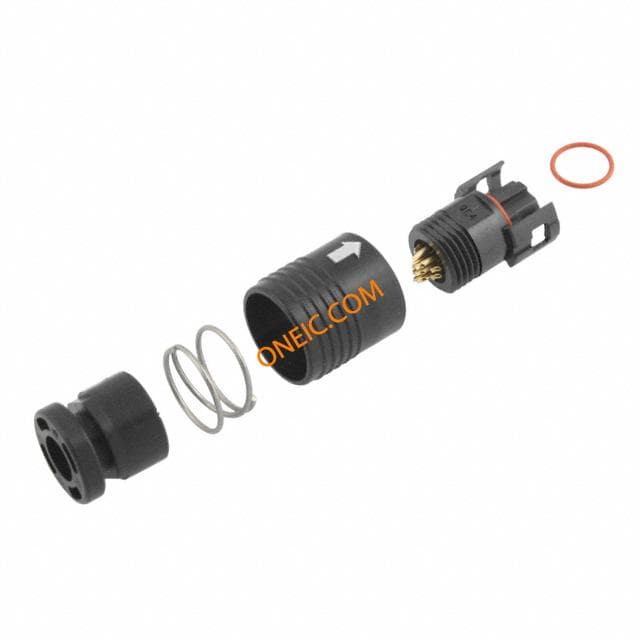

HR30-7PB-12S

Hirose Connector

Circular Push Pull Connectors 12P PLG SHELL SZ 7 FEM W/OVERMOLD SPCR CONN PLUG 12POS FEMALE SOLDER

$67.3812

Details

HR30-7P-12SC(71)

Hirose Connector

Circular Push Pull Connectors 12P PLUG SHELL SZ 7 FEMALE CRIMP CONN PLUG 12POS FEMALE CRIMP Hirose HR30 Series 12 Way Straight Male Cable Mount Miniature Connector, 2A Hirose HR30系列 12路直向电缆安装插座, 2A

$38.9062

Details

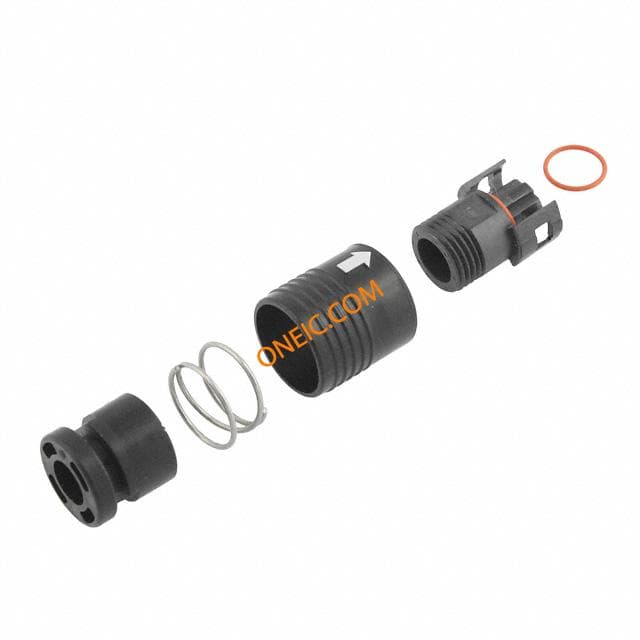

HR30-7PB-12SC

Hirose Connector

Circular Push Pull Connectors 12P PLG SHELL SZ 7 FEM W/OVERMOLD SPCR CONN PLUG 12POS FEMALE CRIMP

$43.1800

Details

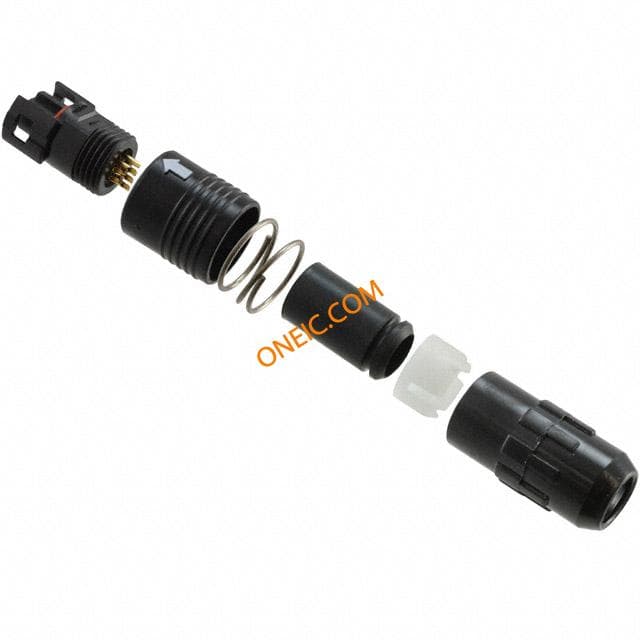

HR30-7P-12S(71)
