HR30-7PB-12S

Manufacturer	Hirose Electric Co., Ltd.
Description	Circular Push Pull Connectors 12P PLG SHELL SZ 7 FEM W/OVERMOLD SPCR CONN PLUG 12POS FEMALE SOLDER
Category	Connector SolutionsCircular ConnectorsIndustrial Circular Connectors

对参数有疑问？问 AI 助手

Business

Product Category

Circular Push Pull Connectors

Standard Package

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating

30VAC, 42VDC

Current Rating (Max)

Mechanical

Packaging	Tray	Shell Size	7
Orientation	Keyed	Shell Style	Plug
Termination	Solder Cup	Mounting Type	Free Hanging (In-Line)
Connector Type	Plug, Female Sockets	Contact Finish	Gold
Fastening Type	Push-Pull	Mounting Style	Cable
Shell Material	Plastic	Termination Style	Solder
1st Contact Gender	Socket (Female)	Number of Contacts	12
Number of Positions	12	Shell Size - Insert	7
Shell Material, Finish	Polyphenylene Sulfide (PPS)

Product Info

Series	HR30	Features	Strain Relief
Product Type	Connectors

Environmental

Ingress Protection

IP67 - Dust Tight, Waterproof

Operating Temperature

-25°C ~ 85°C

Documents & Media

PDF Document

HR30 Overmold Wiring Procedure

PDF Document

HR30-7PB-12S Drawing

PDF Document

HR30%20Overmold.pdf

Similar Parts

HR30-7R-12PD(71)

Hirose Connector

Circular Push Pull Connectors 12P REC SHELL SZ 7 MALE PCB TH-HOLE CONN RECEPT 12POS MALE T/H Hirose HR30 Series 12 Way Straight Female Through Hole Miniature Connector, 2A Hirose HR30系列 12路直向通孔插头, 2A

$28.3560

Details

HR30-7J-12PC(71)

Hirose Connector

Circular Push Pull Connectors 12P JACK SHELL SZ 7 MALE CRIMP CONN JACK 12POS MALE CRIMP

$32.7019

Details

HR30-7R-12PC(71)

Hirose Connector

Circular Push Pull Connectors 12P RECP SHELL SZ 7 MALE CRIMP CONN RECEPT 12POS MALE CRIMP Hirose HR30 Series 12 Way Straight Female Panel Mount Miniature Connector, 2A Hirose HR30系列 12路直向面板安装插头, 2A

$18.1200

Details

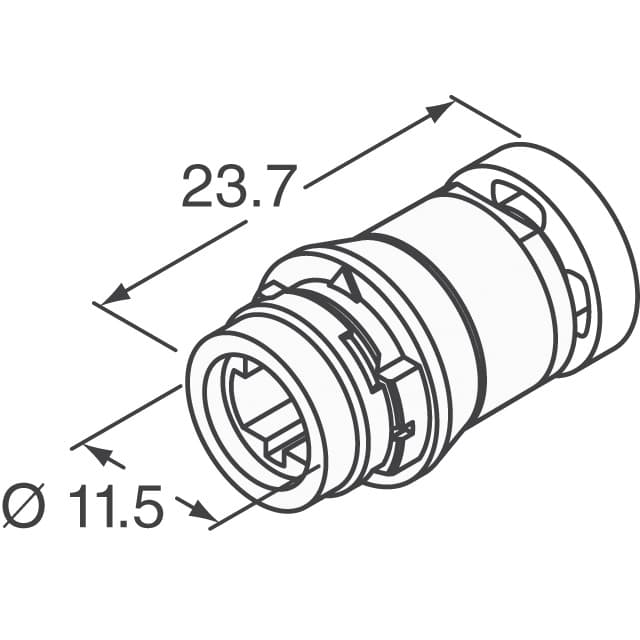

HR30-7JB-12PC
