HR30-7P-12SC(71)

Manufacturer	Hirose Electric Co., Ltd.
Description	Circular Push Pull Connectors 12P PLUG SHELL SZ 7 FEMALE CRIMP CONN PLUG 12POS FEMALE CRIMP Hirose HR30 Series 12 Way Straight Male Cable Mount Miniature Connector, 2A Hirose HR30系列 12路直向电缆安装插座, 2A
Category	Connector SolutionsCircular ConnectorsIndustrial Circular Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Circular Push Pull Connectors	Standard Package	50
Factory Pack Quantity	1

Compliance

RoHS

Compliant

Electrical

Voltage Rating

30 V ac

Current Rating (Max)

Mechanical

Packaging	Tray	Shell Size	7
Orientation	Keyed	Shell Style	Plug
Termination	Crimp	Contact Form	Crimp
Contact Type	Crimp	Mounting Type	Free Hanging (In-Line)
Shell Plating	Gold	Connector Type	Plug for Female Contacts
Contact Finish	Gold	Fastening Type	Push-Pull
Mounting Style	Cable	Shell Material	Plastic
Contact Material	Brass, Phosphor Bronze	Termination Rows	压接
Termination Style	Crimp	1st Contact Gender	Socket (Female)
Number of Contacts	12	Number of Positions	12
Shell Size - Insert	7	Shell Material, Finish	Polyphenylene Sulfide (PPS)

Product Info

Note	Contacts Not Provided	Gender	Male
Series	HR30	Features	Strain Relief
Main Purpose	Strain Relief	Product Type	Connectors
Output Configuration	Free Hanging (In-Line)

Environmental

Ingress Protection

IP68 - Dust Tight, Waterproof

Operating Temperature

+85°C

Documents & Media

PDF Document

e13000041.pdf

Similar Parts

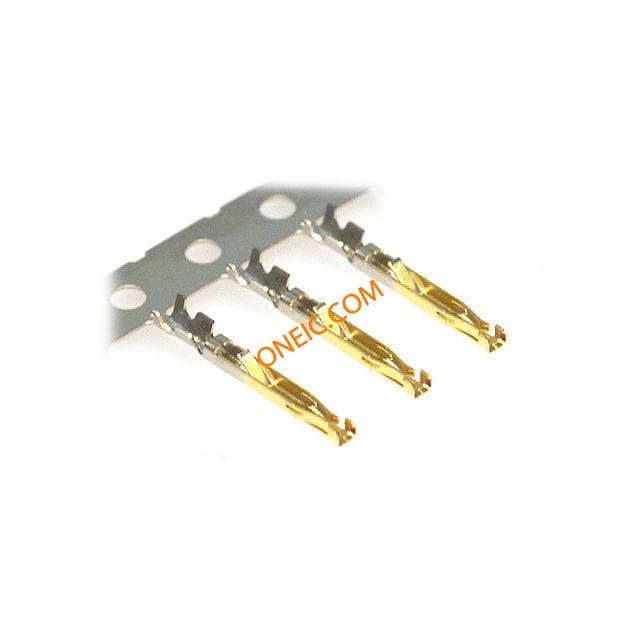

HR30-SC-211

Hirose Connector

Circular Push Pull Connectors FEMALE CONTACT REEL CONTACT SKT CRIMP 26-30AWG GOLD HR30-SC-211 Hirose HR30 系列 2A 母压接端接圆形连接器触芯, 使用于塑料连接器, 30 → 26 AWG 线规格

$1.2175

Details

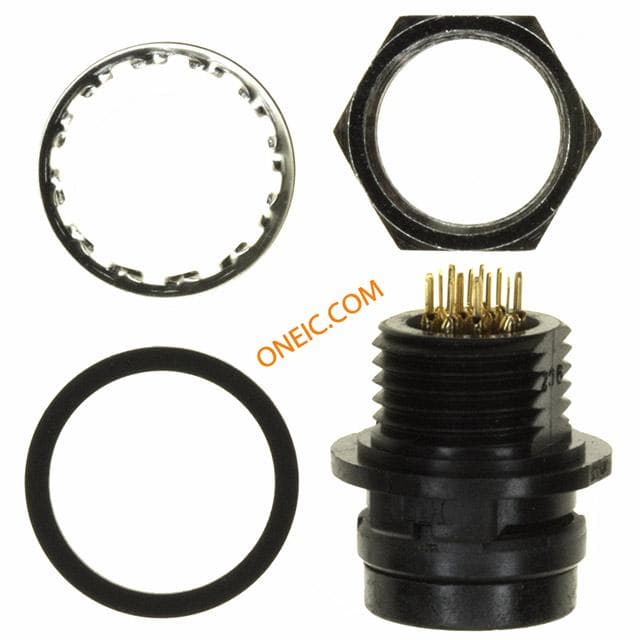

HR30-7R-12PD(71)

Hirose Connector

Circular Push Pull Connectors 12P REC SHELL SZ 7 MALE PCB TH-HOLE CONN RECEPT 12POS MALE T/H Hirose HR30 Series 12 Way Straight Female Through Hole Miniature Connector, 2A Hirose HR30系列 12路直向通孔插头, 2A

$28.3560

Details

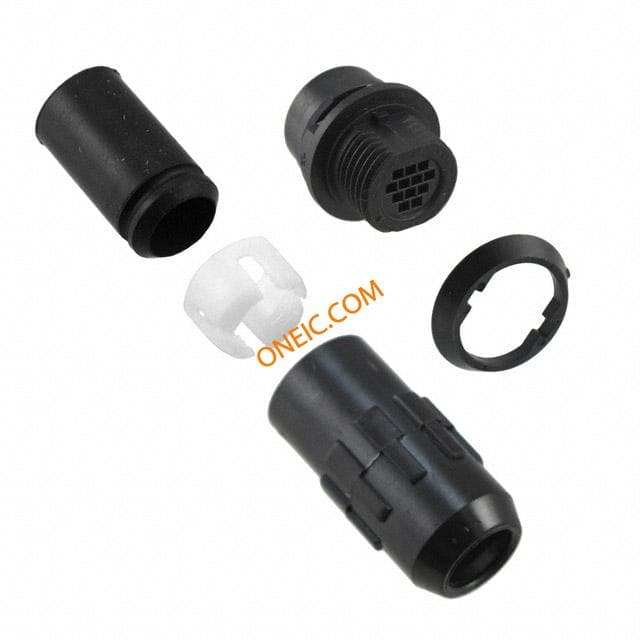

HR30-7J-12PC(71)

Hirose Connector

Circular Push Pull Connectors 12P JACK SHELL SZ 7 MALE CRIMP CONN JACK 12POS MALE CRIMP

$32.7019

Details

HR30-SC-111

Hirose Connector

Circular Push Pull Connectors FEMALE CONTACT LOOSE CONTACT SKT CRIMP 26-30AWG GOLD HR30 Series 2A Female Circular Connector Contact, Crimp,Wire size 30 to 26AWG HR30-SC-111

$1.7613

Details

HR30-7R-12PC(71)

Hirose Connector

Circular Push Pull Connectors 12P RECP SHELL SZ 7 MALE CRIMP CONN RECEPT 12POS MALE CRIMP Hirose HR30 Series 12 Way Straight Female Panel Mount Miniature Connector, 2A Hirose HR30系列 12路直向面板安装插头, 2A

$18.1200

Details

HR30-7JB-12PC

Hirose Connector

Circular Push Pull Connectors 12P JCK SHELL SZ 7 MALE W/OVERMOLD SPCR CONN JACK 12POS MALE CRIMP

$51.1088

Details

HR30-7J-12P(71)

Hirose Connector

Circular Push Pull Connectors 12P JACK SHELL SZ 7 MALE TERM SOLDER CONN JACK 12POS MALE SOLDER Hirose HR30 Series 12 Way Straight Female Cable Mount Miniature Connector, 2A Conn Miniature Waterproof Plastic M 12 POS Solder ST Cable Mount 12 Terminal 1 Port Coupling plug 12-pin Poles=12, HR30-7J-12P(71), Hirose Hirose HR30系列 12路直向电缆安装插头, 2A

$60.2160

Details

HR30-7R-12P(71)

Hirose Connector

Circular Push Pull Connectors 12P RECP SHELL SZ 7 MALE TERM SOLDER CONN RECEPT 12POS MALE SOLDER Hirose HR30 Series 12 Way Straight Female Panel Mount Miniature Connector, 2A Conn Miniature Waterproof Plastic M 12 POS Solder ST Panel Mount 12 Terminal 1 Port 12WMALERECEPTACLE Device connector 12-pin Poles=12, HR30-7R-12P(71), Hirose Hirose HR30系列 12路直向面板安装插头, 2A

$36.2400

Details

HR30-7JB-12P

Hirose Connector

Circular Push Pull Connectors 12P JCK SHELL SZ 7 MALE W/OVERMOLD SPCR CONN JACK 12POS MALE SOLDER

$70.6928

Details

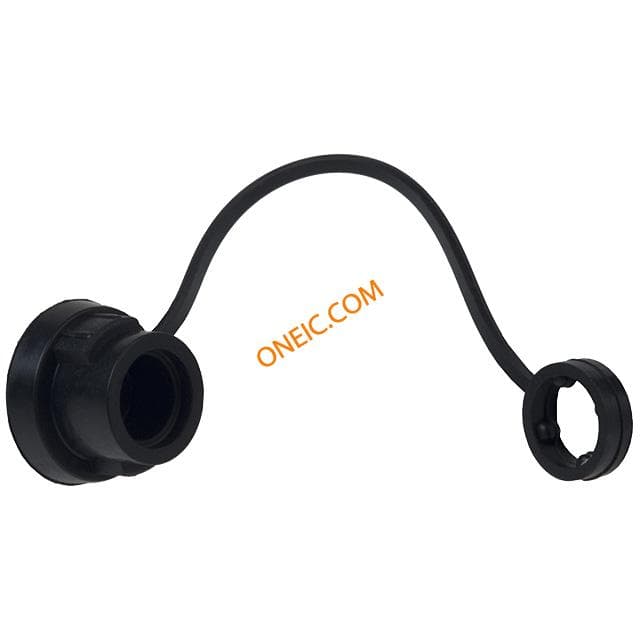

HR30-7P-C(71)

Hirose Connector

Circular Push Pull Connectors CAP FOR PLUG SH SZ 7 CONN DUST CAP FOR 10&12POS PLUG Dust Cap for shell size 7 plug Connector Accessories Plug Circular Cap Shell Size 7 Hirose HR30 系列插座 IP67 防尘盖, 尺寸7

$9.0600

Details

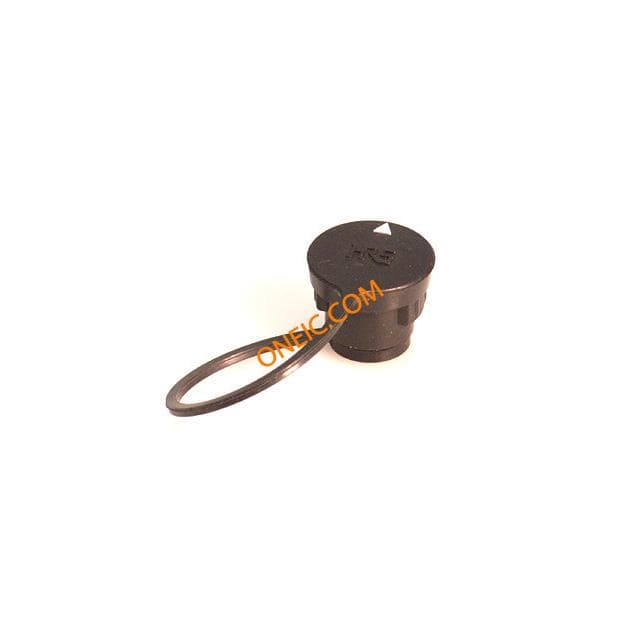

HR30-7P-C
