HR30-7R-12P(71)
| Manufacturer | |
| Description | Circular Push Pull Connectors 12P RECP SHELL SZ 7 MALE TERM SOLDER CONN RECEPT 12POS MALE SOLDER Hirose HR30 Series 12 Way Straight Female Panel Mount Miniature Connector, 2A Conn Miniature Waterproof Plastic M 12 POS Solder ST Panel Mount 12 Terminal 1 Port 12WMALERECEPTACLE Device connector 12-pin Poles=12, HR30-7R-12P(71), Hirose Hirose HR30系列 12路 直向 面板安装 插头, 2A |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Rad Hardened | No |
Electrical
| Voltage Rating | 30VAC, 42VDC | Number of Poles | 12 |
| Current Rating (Max) | 2A | Current Rating - Appliance Inlet | 2 |
Mechanical
| Diameter | 15 mm | Packaging | Tray |
| Cable Exit | No | Shell Size | 7 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder Cup | Contact Form | 12Signal |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Connector Type | Receptacle, Male Pins |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Panel | Shell Material | Plastic |
| Locking Feature | Push-Pull | Contact Material | Brass, Phosphor Bronze |
| Housing Material | Glass fibre (GF) | Length - Overall | 18.6 mm |
| Termination Rows | 焊接 | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 12 |
| Number of Positions | 12 | Shell Size - Insert | 7 |
| 1st Connector Gender | Male | Shell Material, Finish | Polyphenylene Sulfide (PPS) |
Product Info
| Design | Panel-mount male receptacle | Gender | Female |
| Series | HR30 | DELETED | Compliant |
| Product Type | Connectors | RF Family/Standard | HR30 |
| Output Configuration | Panel Mount, Bulkhead - Rear Side Nut | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -25°C ~ 85°C |
Documents & Media
Similar Parts
HR30-7R-C(71)
Hirose Connector
Circular Push Pull Connectors CAP FOR RECP SH SZ 7 CONN DUST CAP FOR 10&12POS RECPT Dust Cap for shell size 7 receptacle Connector Accessories Receptacle Circular Cap Shell Size 7 Sealing cap for 12-pole, HR30-7R-C(71), Hirose Hirose HR30 系列 插头 IP67 防尘盖, 尺寸7

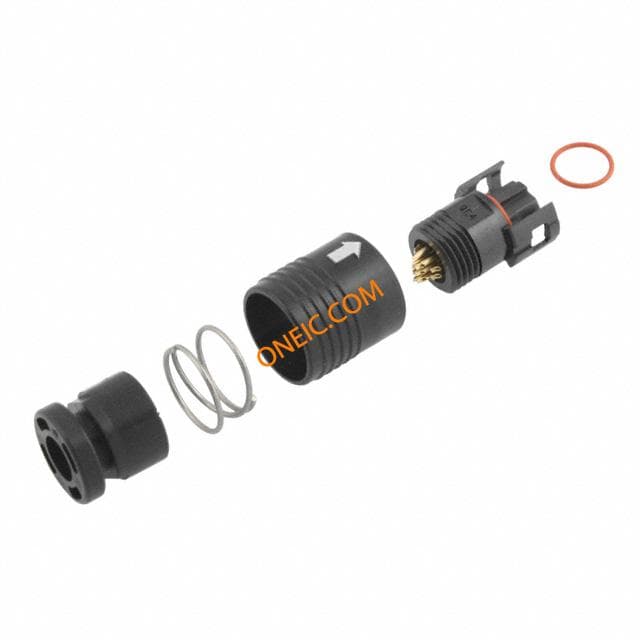

HR30-7PB-12S
Hirose Connector
Circular Push Pull Connectors 12P PLG SHELL SZ 7 FEM W/OVERMOLD SPCR CONN PLUG 12POS FEMALE SOLDER
.jpg&w=3840&q=75)
HR30-7P-12SC(71)
Hirose Connector
Circular Push Pull Connectors 12P PLUG SHELL SZ 7 FEMALE CRIMP CONN PLUG 12POS FEMALE CRIMP Hirose HR30 Series 12 Way Straight Male Cable Mount Miniature Connector, 2A Hirose HR30系列 12路 直向 电缆安装 插座, 2A

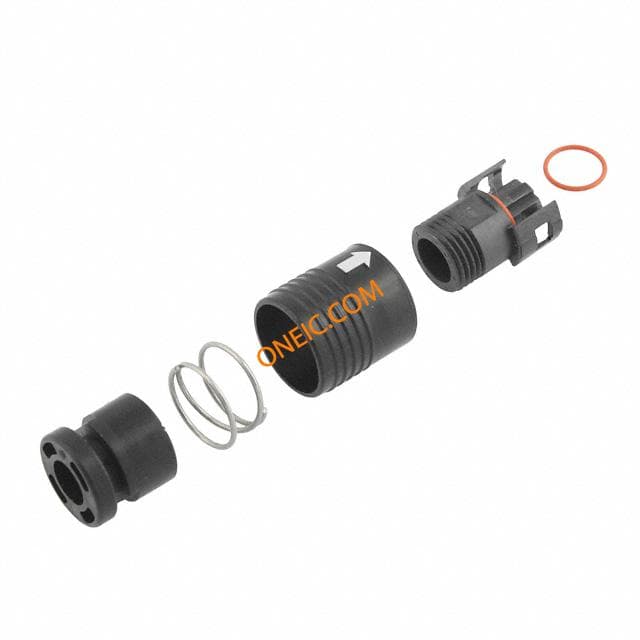

HR30-7PB-12SC
Hirose Connector
Circular Push Pull Connectors 12P PLG SHELL SZ 7 FEM W/OVERMOLD SPCR CONN PLUG 12POS FEMALE CRIMP
.jpg&w=3840&q=75)

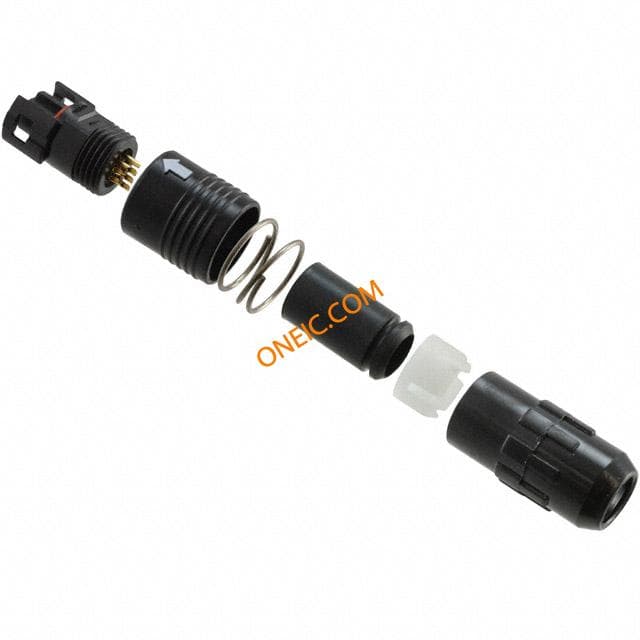

HR30-7P-12S(71)
