HR10A-7P-6S(73)
| Manufacturer | |
| Description | Circular Push Pull Connectors 6P PLUG SHELL SZ 7 FEMALE SIL TERM SLDR 6 CONTACT PLUG W/SOCKET INSERT 6 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts, Push-Pull Conn Push-Pull F 6 POS Solder ST Cable Mount 6 Terminal 1 Port 6WFEMALEPLUGSOLDER Cable socket 6-pin Poles=6, HR10A-7P-6S(73), Hirose Hirose HR10 系列 6路 电缆安装 直向 连接器 , 母触点, 推挽式接合 |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 20 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Rad Hardened | No |
Electrical
| Voltage Rating | 100VAC | Number of Poles | 6 |
| Connector Impedance | 微型 | Current Rating (Max) | 2A |
| Current Rating - Appliance Inlet | 2 | ||
Mechanical
| Outline | 7mm | Diameter | 11.5 mm |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 7 | Orientation | Keyed |
| Shell Style | Plug | Termination | Solder |
| Contact Form | 6Signal | Contact Type | 母座 |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Cable End Type | 5 mm | Connector Type | Plug, Female Sockets |
| Contact Finish | Silver | Fastening Type | Push-Pull |
| Mounting Style | Cable | Connector Usage | Push-Pull |
| Locking Feature | Push-Pull | Contact Material | Beryllium, Phosphor Bronze |
| Housing Material | Metal | Length - Overall | 35 mm |
| Termination Rows | 焊接 | Termination Style | Solder |
| 1st Contact Gender | Female | Number of Contacts | 6 |
| Number of Positions | 6 | Shell Size - Insert | 7 |
| 1st Connector Gender | Female | Shell Material, Finish | Brass and Zinc, Nickel Plated |
Product Info
| Type | Push-Pull | Design | Cable socket, straight |
| Gender | Male | Series | HR10 |
| DELETED | Compliant | Features | Cable Clamp |
| Product Type | Connectors | RF Family/Standard | HR10A |
Environmental
| Operating Temperature | -25°C ~ 85°C | ||
Documents & Media
Similar Parts

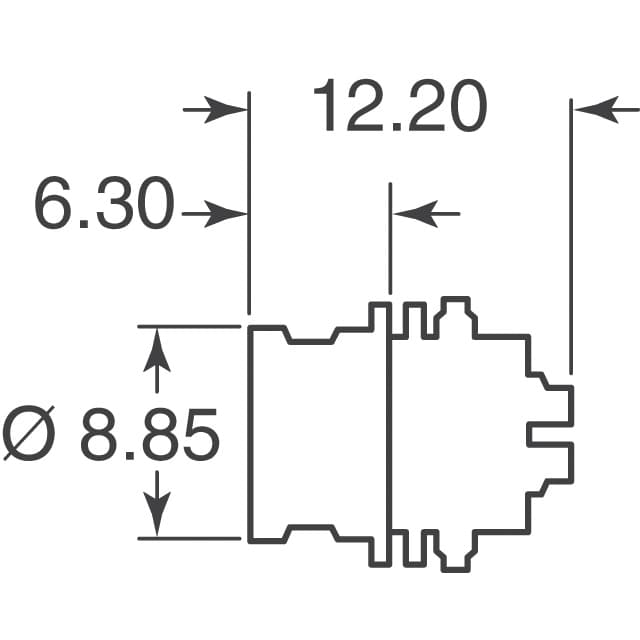

HR10A-7R-6PC
