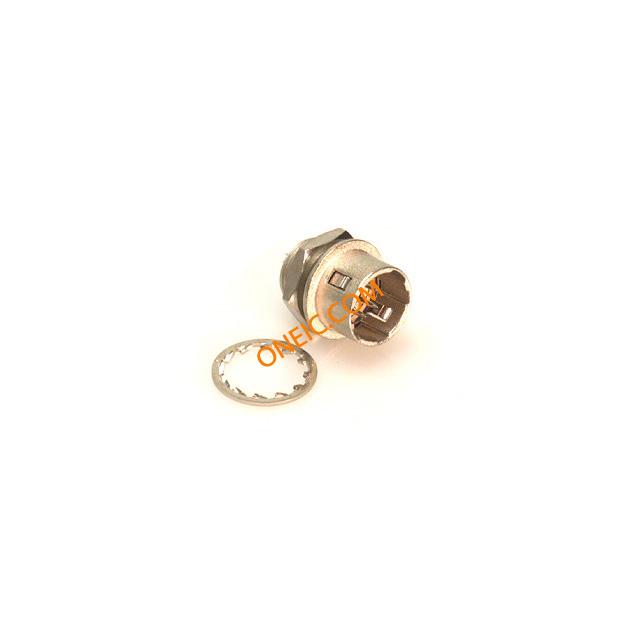

HR10A-7R-6P(73)
| Manufacturer | |
| Description | Circular Push Pull Connectors 6P RECP SHELL SZ 7 MALE SIL TERM SOLDR 6 CONT. RECEPTACLE W/PIN INSERT 6 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts, Push-Pull Conn Push-Pull M 6 POS Solder Cup ST Panel Mount 6 Terminal 1 Port Device connector 6-pin Poles=6, HR10A-7R-6P(73), Hirose |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 20 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Rad Hardened | No |
Electrical
| Voltage Rating | 100VAC | Number of Poles | 6 |
| Current Rating (Max) | 2A | Current Rating - Appliance Inlet | 2 |
Mechanical
| Depth | 11 mm | Height | 10 mm |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 7 | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder Cup |
| Contact Form | 6Signal | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Shell Plating | Nickel | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Push-Pull |
| Mounting Style | Panel | Shell Material | Metal |
| Connector Usage | Push-Pull | Locking Feature | Push-Pull |
| Contact Material | Brass, Bronze | Housing Material | Metal |
| Length - Overall | 14 mm | Termination Style | Solder |
| 1st Contact Gender | Male | Number of Contacts | 6 |
| Number of Positions | 6 | Shell Size - Insert | 7 |
| 1st Connector Gender | Male | Shell Material, Finish | Brass and Zinc, Nickel Plated |
Product Info
| Type | Push-Pull | Design | Panel-mount male receptacle |
| Gender | Female | Series | HR10 |
| DELETED | Compliant | Product Type | Connectors |
| RF Family/Standard | HR10A | Output Configuration | Panel Mount, Bulkhead - Rear Side Nut |
Environmental
| Operating Temperature | -25°C ~ 85°C | ||
