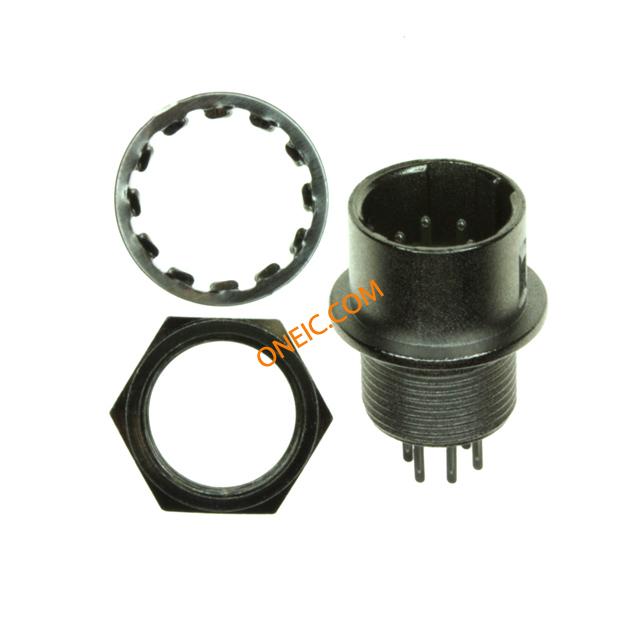

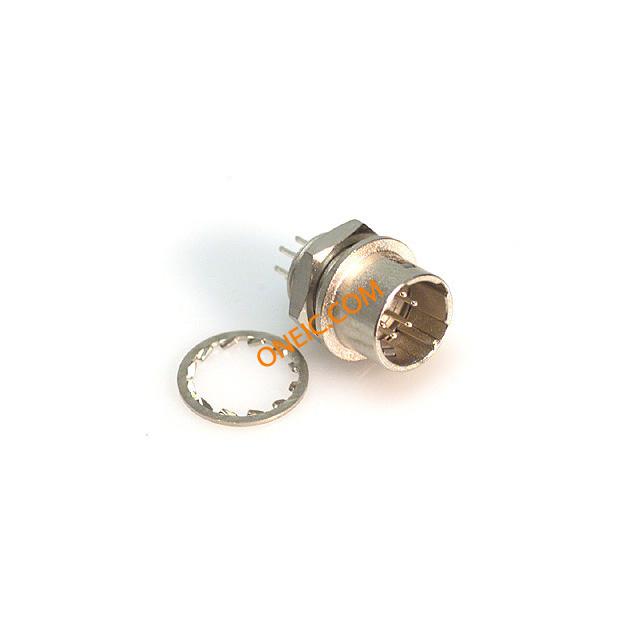

HR10A-7R-6PB(73)
| Manufacturer | |
| Description | Circular Push Pull Connectors 6P RECP SHELL SZ 7 MALE SIL TRM PCB DIP CONN RECEPT 6POS MALE DIP Hirose HR10 系列 6路 面板安装 直向 连接器 , 公触点, 推挽式接合 |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 60 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 100VAC | Connector Impedance | 微型 |
| Current Rating (Max) | 2A | ||
Mechanical
| Outline | 7mm | Packaging | Bulk |
| Shell Size | 7 | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder |
| Contact Type | 公插 | Mounting Type | Panel Mount, Bulkhead; Through Hole |
| Shell Plating | Nickel | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Push-Pull |
| Mounting Style | Through Hole | Shell Material | Metal |
| Contact Material | 磷铜 | Housing Material | 黄铜，锌合金 |
| Termination Rows | 焊接 | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 6 |
| Number of Positions | 6 | Shell Size - Insert | 7 |
| Shell Material, Finish | Brass and Zinc, Nickel Plated | ||
Product Info
| Type | Push-Pull | Series | HR10 |
| Product Type | Connectors | ||
Environmental
| Operating Temperature | -25°C ~ 85°C | ||
