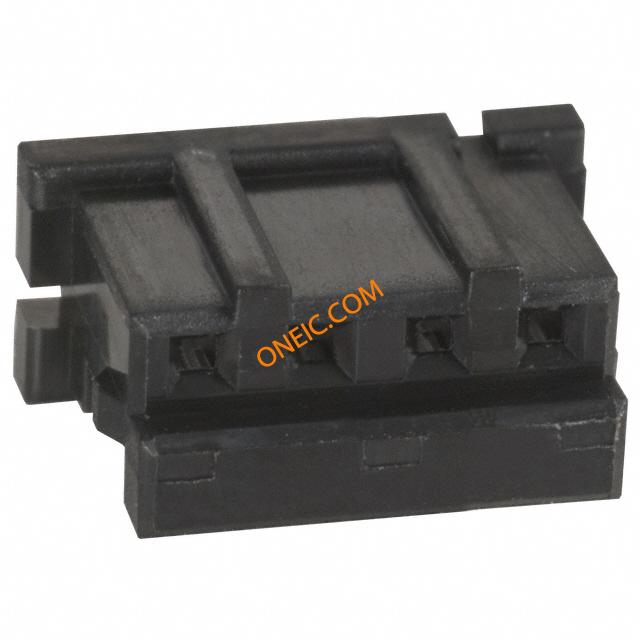

DF3-4S-2C

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 2MM RECEPT HOUSING 4 POS CRIMP CONN RECEPT HOUSING 4POS 2MM Crimp socket housing 4-way 2mm pitch Connector,Socket,PCB,Board to Wire,2mm p Conn Housing SKT 4 POS 2mm Crimp ST Panel Mount Bag Hirose DF3 系列 1 行 2mm 节距 4 路直母电缆安装 PCB 壳体
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	100
Factory Pack Quantity	100

Compliance

RoHS

Compliant

Electrical

Voltage Rating	250 V	Current Rating (Max)	3 A
Voltage - Supply (Min)	100VAC	Connector - Voltage Input	Crimp

Mechanical

Color	Black	Depth	6.8mm
Pitch	0.079" (2.00mm)	Width	4.6mm
Height	4.6 mm	Length	10mm
Packaging	Bulk	Wire Gauge	22-28 AWG
Orientation	直	Contact Form	Female Socket
Contact Type	Female Socket	Housing Color	Black
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle
Mounting Style	Wire	Number of Rows	1
Housing Material	PA	Length - Overall	10 mm
Termination Style	Crimp	1st Contact Gender	Socket (Female)
Number of Contacts	4	Contact Termination	Crimp
Number of Positions	4

Product Info

Note	Contacts Not Provided	Type	Housing
Gender	Female	Series	DF3
DELETED	Compliant	Output Configuration	Free Hanging (In-Line)
For Use With/Related Products	Discrete Wire Connector

Environmental

Operating Temperature

-30C to 85C

Documents & Media

PDF Document

DF3 Series Datasheet

PDF Document

e54300012.pdf

Similar Parts

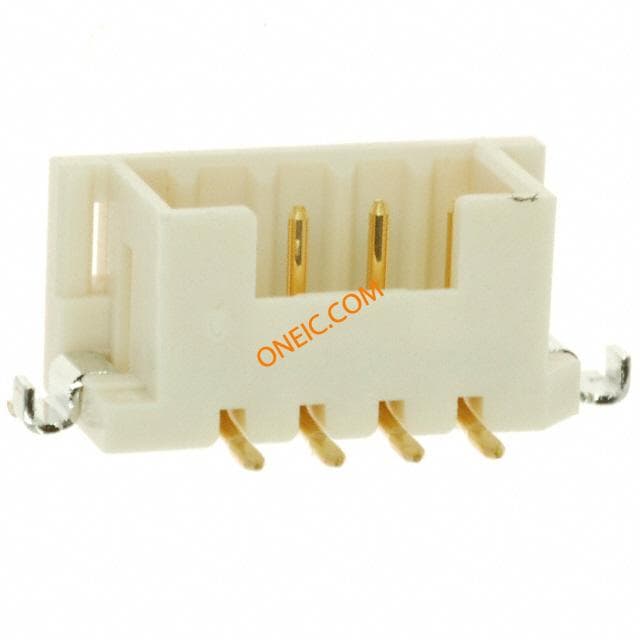

DF3Z-4P-2V(50)

Hirose Connector

ヘッダ & ワイヤハウジング 2MM V PCB HEADER 4 POS SMT GLD CONN HEADER 4POS 2MM VERT GOLD Headers & Wire Housings 2MM V PCB HEADER 4 POS SMT GLD

$2.6656

Details

DF3Z-4P-2H(20)

Hirose Connector

ヘッダ & ワイヤハウジング 2MM R/A PCB HEADER 4 POS SMT TIN CONN HEADER 4POS 2MM RT ANG TIN Hirose DF3 Series 2mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2MM R/A PCB HEADER 4 POS SMT TIN Hirose DF3 系列 2mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 3A , 表面安装

$7.9152

Details

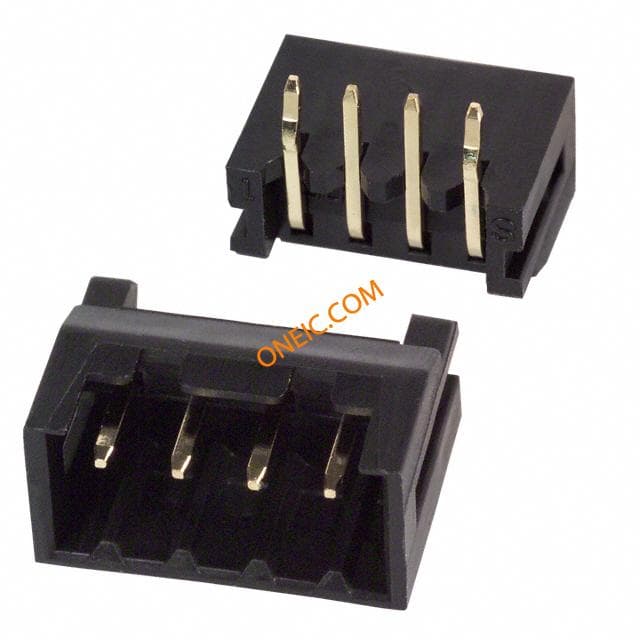

DF3-4P-2DS(01)

Hirose Connector

Headers & Wire Housings 2MM R/A PCB HEADER 4POS THRU-HOLE GLD CONN HEADER 4POS 2MM R/A GOLD Box Header 2mm pitch RA gold 4 way Conn Shrouded Header HDR 4 POS 2mm Solder RA Thru-Hole Bag Hirose DF3 系列 2mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 3A

$0.6868

Details

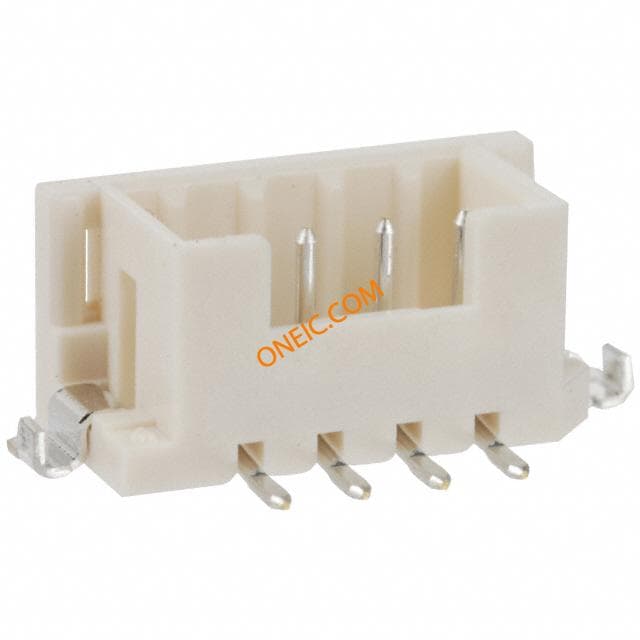

DF3Z-4P-2V(20)

Hirose Connector

ヘッダ & ワイヤハウジング 2MM V PCB HEADER 4 POS SMT TIN CONN HEADER 4POS 2MM VERT TIN Hirose DF3 Series 2mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2MM V PCB HEADER 4 POS SMT TIN Hirose DF3 系列 2mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A , 表面安装

$2.2678

Details

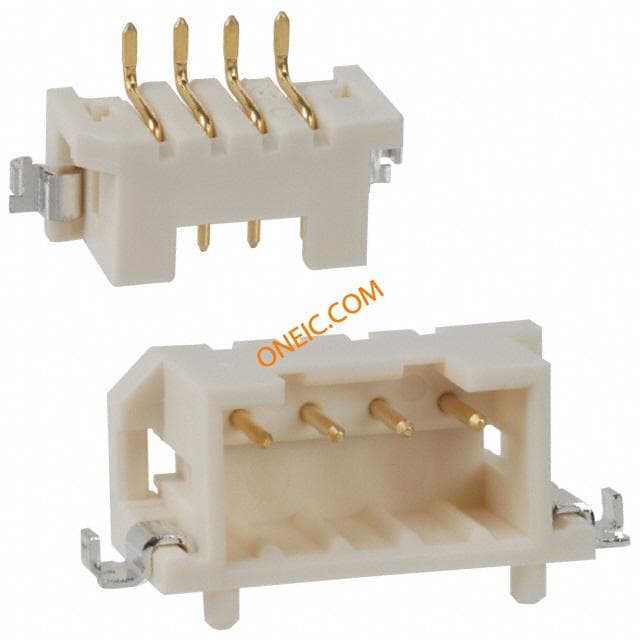

DF3Z-4P-2H(50)

Hirose Connector

Headers & Wire Housings 2MM R/A PCB HEADER 4 POS SMT GLD CONN HEADER 4POS 2MM R/A GOLD

$3.7128

Details

DF3DZ-4P-2V(21)

Hirose Connector

Headers & Wire Housings 2MM V PCB HEADER 4POS SMT TIN CONN HEADER 4POS 2MM VERT TIN Header 2mm pitch vertical SMT tin 4 way Hirose DF3 系列 2mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A

$3.5904

Details

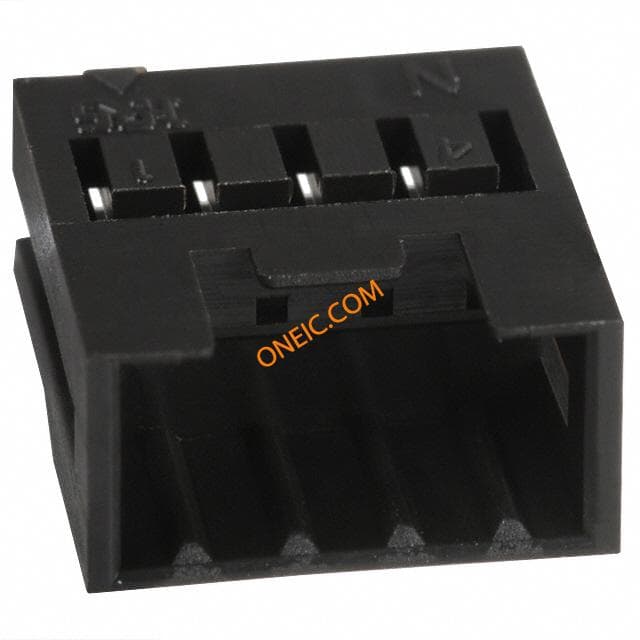

DF3-4EP-2C

Hirose Connector

Headers & Wire Housings 2MM PLUG HOUSING 4 POS CRIMP CONN PLUG HOUSING 4POS 2MM Hirose DF3 Series 2mm Pitch 4 Way 1 Row Straight Male Cable Mount PCB Connector Housing, Nylon Housing Material Hirose DF3 系列 1 行 2mm 节距 4 路直公直插式 PCB 连接器外壳

$0.3264

Details

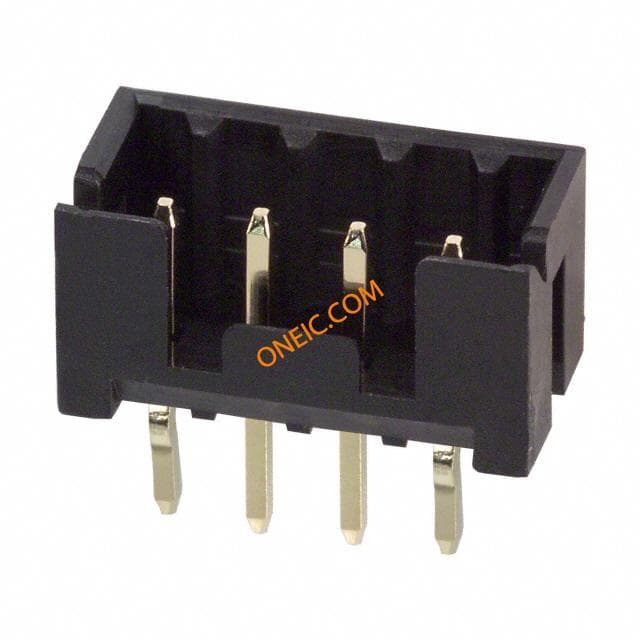

DF3-4P-2DSA(01)

Hirose Connector

ヘッダ & ワイヤハウジング 2MM VERTICAL HDR 4POS THRU-HOLE GLD CONN HEADER 4POS 2MM VERT GOLD Box Header 2mm pitch vertical gold 4 way Headers & Wire Housings 2MM VERTICAL HDR 4POS THRU-HOLE GLD Hirose DF3 系列 2mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A

$0.6596

Details

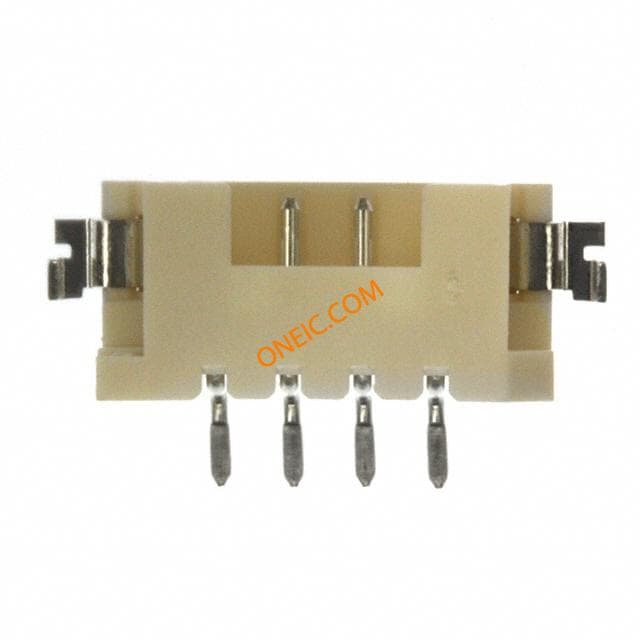

DF3DZ-4P-2H(20)

Hirose Connector

ヘッダ & ワイヤハウジング 2MM R/A PCB HEADER 4 POS SMT TIN CONN HEADER 4POS 2MM R/A TIN Headers & Wire Housings 2MM R/A PCB HEADER 4 POS SMT TIN

$2.3800

Details

DF3DZ-4P-2V(20)

Hirose Connector

Headers & Wire Housings 2MM V PCB HEADER 4 POS SMT TIN CONN HEADER 4POS 2MM VERT TIN

$2.3800

Details

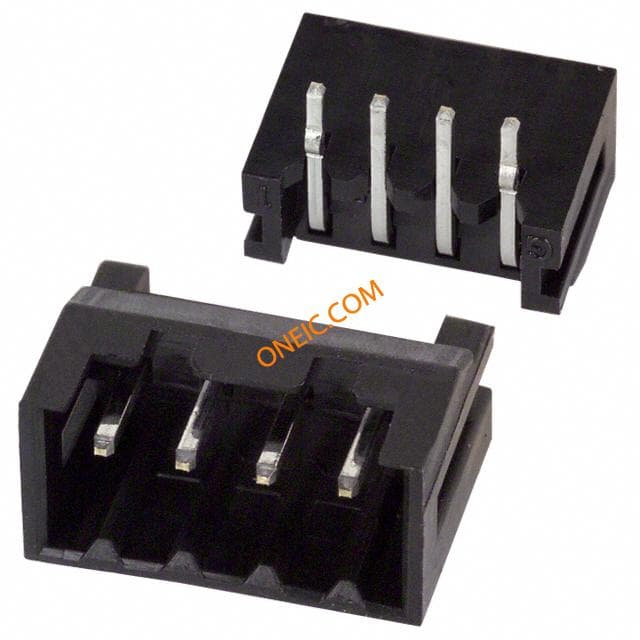

DF3A-4P-2DS

Hirose Connector

Headers & Wire Housings 2MM R/A PCB HEADER 4POS THRU-HOLE TIN CONN HEADER 4POS 2MM R/A TIN Hirose DF3A Series 2mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Conn Shrouded Header HDR 4 POS 2mm Solder RA Thru-Hole Bag Hirose DF3 系列 2mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔

$0.4964

Details

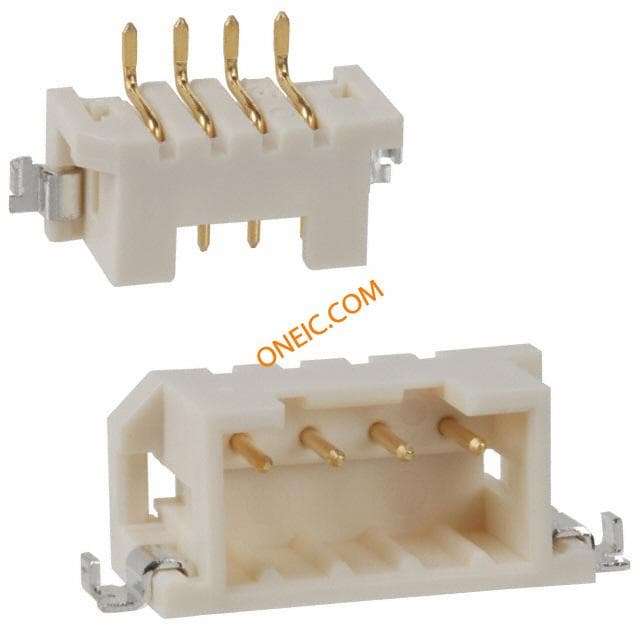

DF3DZ-4P-2H(50)

Hirose Connector

Headers & Wire Housings 2MM R/A PCB HEADER 4 POS SMT GLD CONN HEADER 4POS 2MM R/A GOLD

$7.5065

Details

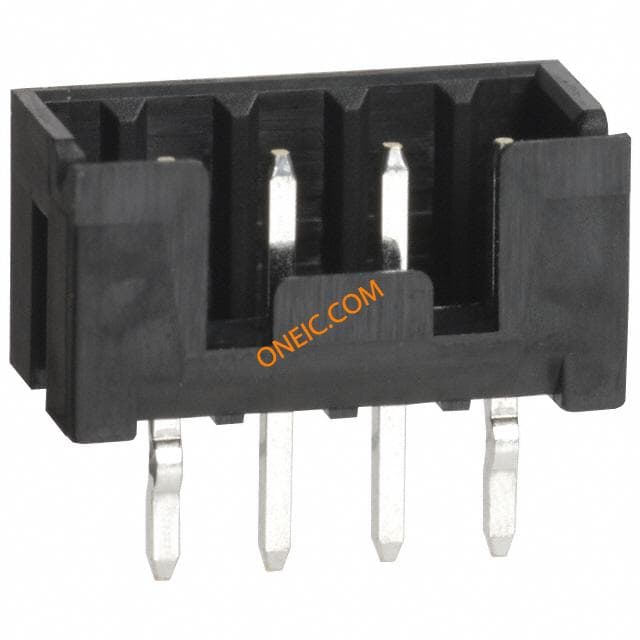

DF3A-4P-2DSA
