点击放大查看

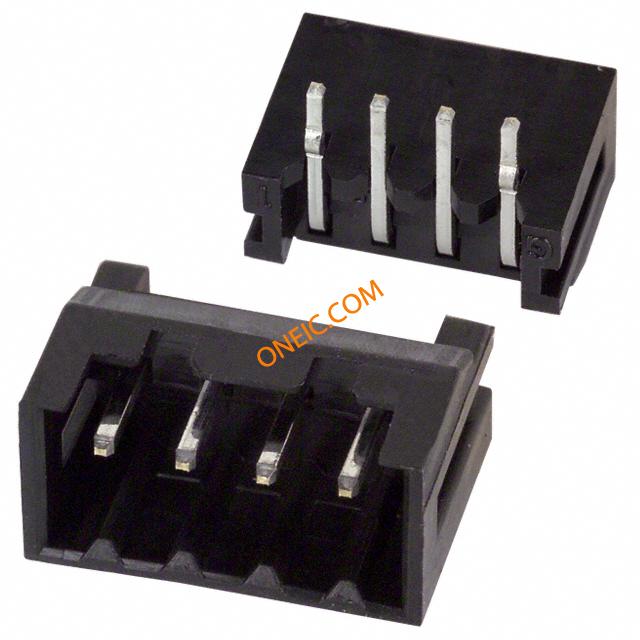

DF3A-4P-2DS
| Manufacturer | |
| Description | Headers & Wire Housings 2MM R/A PCB HEADER 4POS THRU-HOLE TIN CONN HEADER 4POS 2MM R/A TIN Hirose DF3A Series 2mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Conn Shrouded Header HDR 4 POS 2mm Solder RA Thru-Hole Bag Hirose DF3 系列 2mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Not Applicable | ||
Electrical
| Voltage Rating | 100 V ac | Contact Resistance | 30 mohm |
| Current Rating (Max) | 3A | Voltage - Supply (Min) | 100VAC |
Mechanical
| Color | Black | Depth | 7.2 mm |
| Pitch | 0.079" (2.00mm) | Height | 5 mm |
| Packaging | Bulk | Orientation | 直角 |
| Termination | Press-Fit | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polyamide |
| Length - Overall | 10 mm | Termination Rows | 焊接 |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 4 | Number of Positions | 4 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | DF3A | DELETED | Compliant |
| Coverage | 覆盖 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -30C to 85C | ||
