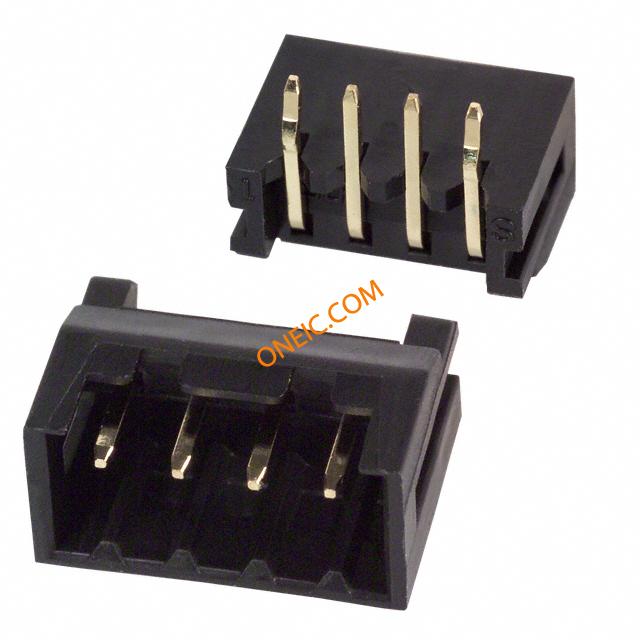

DF3-4P-2DS(01)
| Manufacturer | |
| Description | Headers & Wire Housings 2MM R/A PCB HEADER 4POS THRU-HOLE GLD CONN HEADER 4POS 2MM R/A GOLD Box Header 2mm pitch RA gold 4 way Conn Shrouded Header HDR 4 POS 2mm Solder RA Thru-Hole Bag Hirose DF3 系列 2mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 3A |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 250 V ac | Contact Resistance | 30 mohm |
| Current Rating (Max) | 3A | Voltage - Supply (Min) | 100VAC |
Mechanical
| Color | Black | Depth | 7.2 mm |
| Pitch | 0.079" (2.00mm) | Height | 5 mm |
| Packaging | Bulk | Orientation | 直角 |
| Termination | Press-Fit | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Gold |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polyamide |
| Length - Overall | 10 mm | Termination Rows | 焊接 |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 4 | Number of Positions | 4 |
Product Info
| Type | Board to Wire | Gender | HDR |
| Series | DF3 | DELETED | Compliant |
| Coverage | 覆盖 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -30C to 85C | ||
Documents & Media
Similar Parts

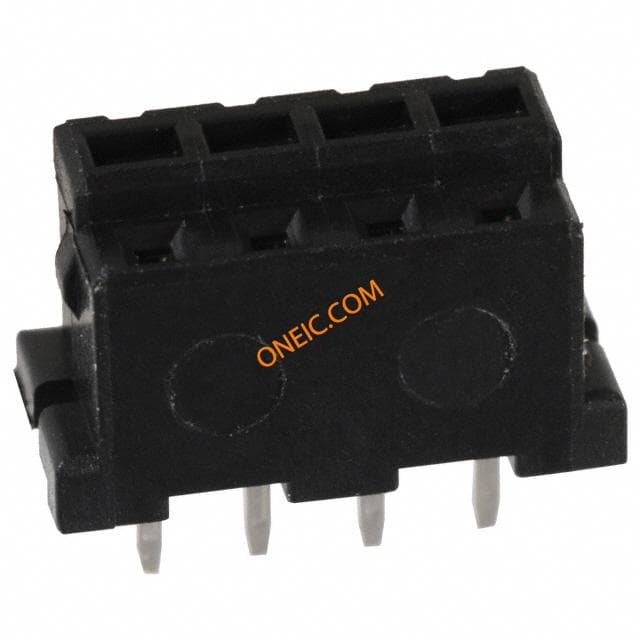

DF3-4S-2DSA(25)
