点击放大查看

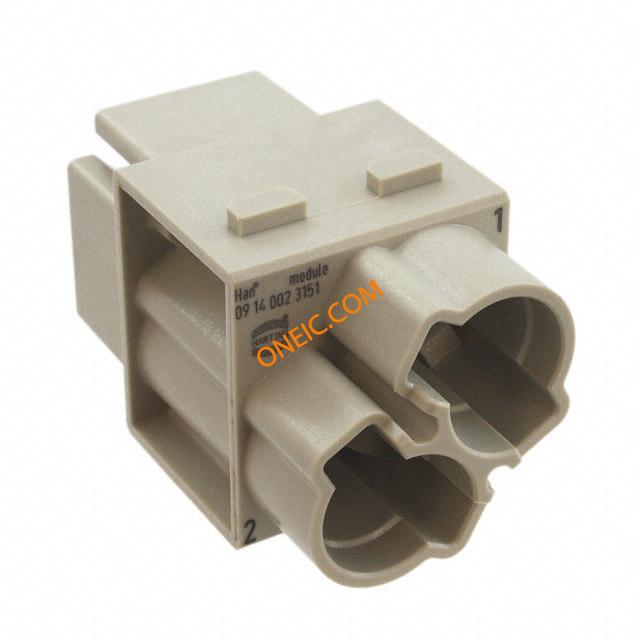

09140023151
| Manufacturer | |
| Description | HAN 100A CRIMP MODULE, FEMALE Heavy Duty Power Connectors HAN 100A F CRIMP MODULE Connector: rectangular; module; female; Han Modular 100A; PIN:2 Han-Modular Modules: Han 100A F Crimp Module Harting HAN Modular 系列 2针 插座 电源连接器外壳 |
| Category |
Business
| Part # Aliases | 002 09 09-14-002-3151 14 3151 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 600V | Contact Resistance | 0.3mΩ |
| Current Rating (Max) | 100A | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Gray | Weight | 0.04 kg |
| Packaging | Bulk | Contact Type | Han-Modular® |
| Mounting Type | crimped | Connector Type | Module without Contacts |
| Contact Finish | Silver | Insertion Force | Female |
| Width - Overall | 2 | Contact Material | Copper Alloy |
| Housing Material | Polycarbonate (PC) | Package Quantity | 1 |
| Termination Rows | 压接 | Connector - Cable | module |
| Termination Style | Crimp | Number of Contacts | 2 |
| Number of Positions | 2 | Plating - Thickness | 3µm |
| Material - Insulation | polycarbonate | Wire Gauge or Range - AWG | 6-2 |
| Contact Material - Plating | silver plated | ||
Product Info
| Spg | 1 | Type | CONNECTORS |
| Gender | Female | Series | HAN Modular |
| Product Type | Modules | Adapter Series | Han Modular 100A |
| Number of Units | 1 | Base Product Number | 0914 |
Environmental
| Mechanical Life | 500cycles | Operating Temperature | -40°C ~ 125°C |
Similar Parts

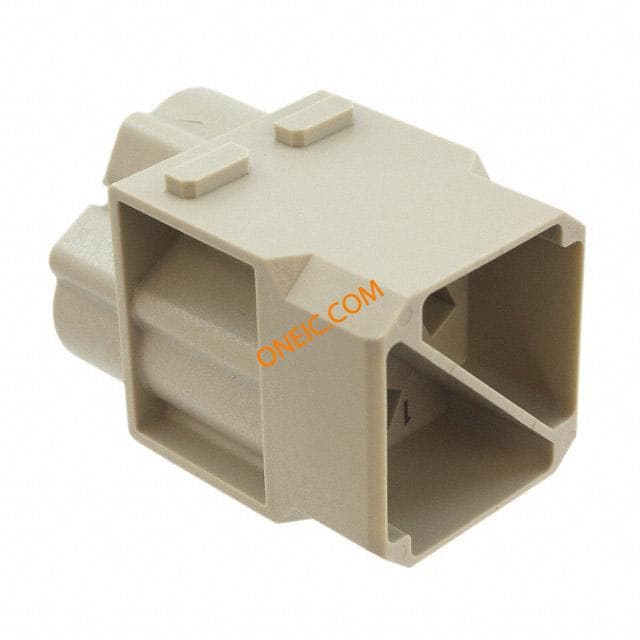

09140023051
