09110006235
| Manufacturer | |

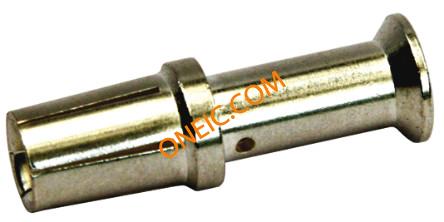

| Description | HAN TC100 FEMALE CONTACT 35MM Han crimp contacts 35mm Heavy Duty Power Connectors HAN TC100 FEMALE CONTACT 2 AWG Hancrimpcontacts35mm Contact; female; 35mm2; Han Modular; silver plated; crimped; 100A Han HC Female Contact: Han TC100 female contact 35mm Harting Han Contacts 系列 母座 压接触点 , 额定电流 100A/ 1000 V, 适用于Han GND 系列 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 000 09 09-11-000-6235 11 6235 | Standard Package | 10 |
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 1000 V | Contact Resistance | 3mΩ |
| Current Rating (Max) | 100A | ||
Mechanical
| Weight | 10 g | Packaging | Bulk |
| Wire Gauge | 2 AWG | Mounting Type | crimped |
| Pin or Socket | Socket | Connector Type | female |
| Contact Finish | Silver | Contact Material | copper alloy |
| Package Quantity | 1 | Connector - Cable | contact |
| Contact Termination | Crimp | Contact Finish Thickness | 118.1µin (3.00µm) |
| Wire Gauge or Range - mm2 | 35mm2 | Contact Material - Plating | silver plated |
Product Info
| Spg | 1 | Type | CONNECTORS |
| Gender | Female | Series | Han GND |
| Accessory Type | Crimp Contact | Adapter Series | Han Modular |
| Measuring Range | Han 100A Crimp, Han HC | Number of Units | 1 |
| For Use With/Related Products | Han GND Series | ||
Environmental
| Mechanical Life | 500cycles | ||
Similar Parts
09990000383
HARTING
Hand Tools REMOVAL TOOL TC100 REMOVAL TOOL HAN 100A CRIMP MODU Han Tools: Removal tool TC100 Harting Han 系列 模块 , 适用于压接模块
$953.3400
Details

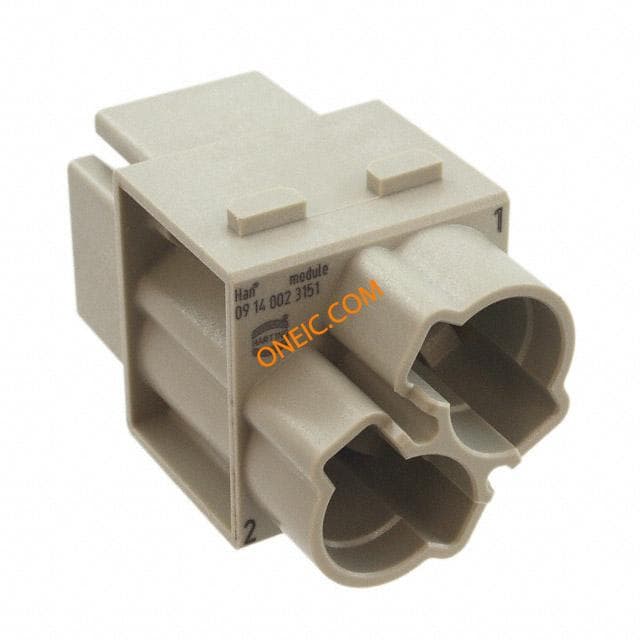

09140023151
