点击放大查看

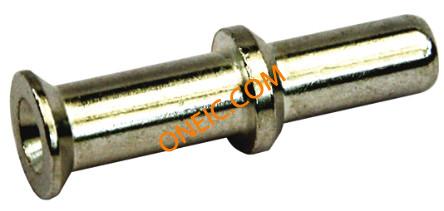

09110006225
| Manufacturer | |
| Description | HAN TC100 FEMALE CONTACT 25MM Han crimp contacts 25mm male Heavy Duty Power Connectors HAN TC100 FEMALE CONTACT 4 AWG Hancrimpcontacts25mmmale Contact; female; 25mm2; Han Modular; silver plated; crimped; 100A Han HC Female Contact: Han TC100 female contact 25mm Harting Han Contacts 系列 公插 压接触点 , 额定电流 100A/ 1000 V, 适用于Han GND 系列 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 000 09 09-11-000-6225 11 6225 | Standard Package | 10 |
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 1000 V | Contact Resistance | 3mΩ |
| Current Rating (Max) | 100A | ||
Mechanical
| Weight | 10 g | Packaging | Bulk |
| Wire Gauge | 4 AWG | Mounting Type | crimped |
| Pin or Socket | Socket | Connector Type | female |
| Contact Finish | Silver | Insertion Force | Female |
| Contact Material | Copper Alloy | Package Quantity | 1 |
| Connector - Cable | contact | Termination Style | Crimp |
| Contact Termination | Crimp | Contact Finish Thickness | 118.1µin (3.00µm) |
| Wire Gauge or Range - AWG | 4 | Wire Gauge or Range - mm2 | 25mm2 |
| Contact Material - Plating | silver plated | ||
Product Info
| Spg | 1 | Type | CONNECTORS |
| Gender | Female | Series | Han GND |
| Product Type | Contacts | Accessory Type | Crimp Contact |
| Adapter Series | Han Modular | Measuring Range | Han 100A Crimp, Han HC |
| Number of Units | 1 | For Use With/Related Products | Han GND Series |
Environmental
| Mechanical Life | 500cycles | ||
