点击放大查看
09062486821
| Manufacturer | |
| Description | DIN-POWER F048FW-22,0C1-2 DIN 41612 Connectors 48P FEMALE TYPE F STRT WRAP POSTS 48 way DIN41612 wire-wrap socket Harting 48 路 5.08mm 节距 C2等级, 3 行 z/b/d 直向 DIN 41612 插座, 绕线端接 |
| Category |
Business
| Part # Aliases | 06 09 09-06-248-6821 248 6821 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 6A | ||
Mechanical
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Orientation | 直 | Termination | Wire Wrap |
| Mounting Type | Panel Mount; Through Hole | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold over Nickel | Number of Rows | 3 |
| Termination Rows | 绕线 | Termination Style | Wire Wrap |
| Number of Contacts | 48 | Number of Positions | 48 (Power) |
| Material - Insulation | Thermoplastic, Glass Filled | ||
Product Info
| Type | F | Style | F |
| Gender | Female | CAD Drawing | 3D CAD Model |
| Product Type | Receptacles | Outlet Types and Quantity | Z/b/d |
| Number of Positions Loaded | All | ||
Environmental
| Ratings | C2 | Level, Class | 2 |
Similar Parts

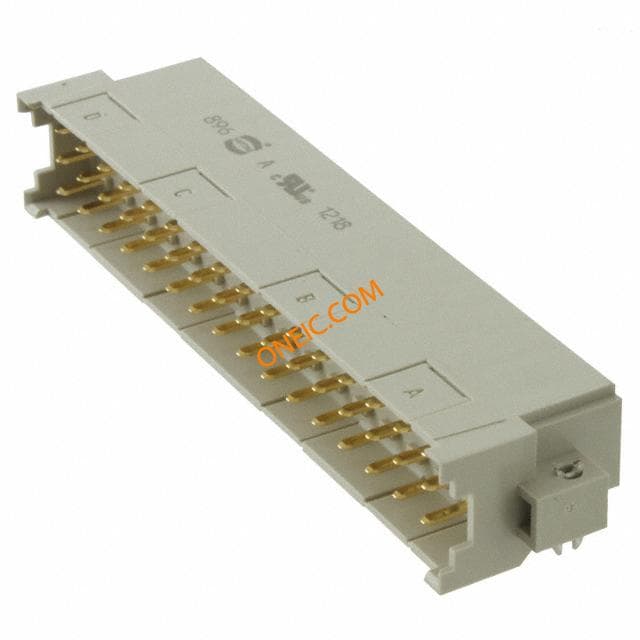

09063486901
HARTING
DIN 41612 Connectors DIN-POWER F048MS-3,0C1-2-CLIP DIN-POWER F048MS-3,0C1-2-CLIP Connector DIN-Power solder 48-way m ConnectorDIN-Powersolder48-waym Harting 09 06 系列 48 路 2.54mm 节距, F型 C2等级, 3 行 z/b/d, 直角 DIN 41612 插头, 焊接端接

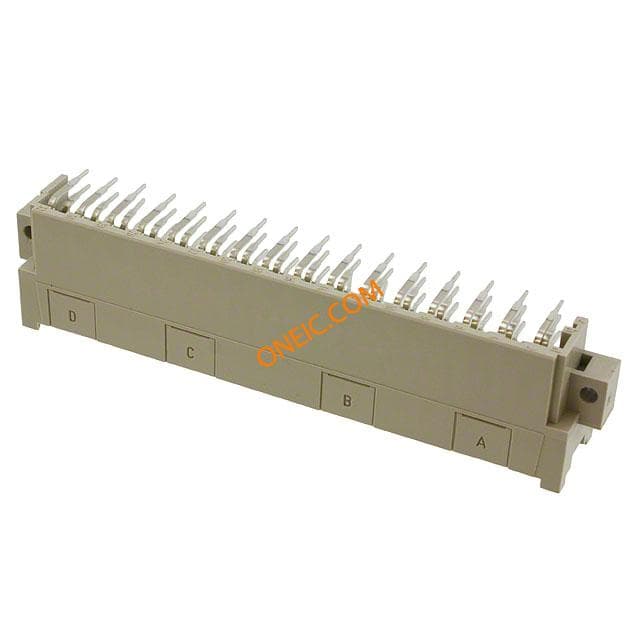

09061486921
HARTING
DIN 41612 Connectors DIN-POWER F048MS-3,0C1-2-V1 DIN-POWER F048MS-3,0C1-2-V1 Connector DIN-Power solder 48-way m ConnectorDIN-Powersolder48-waym Harting 09 06 系列 48 路 2.54 mm, 5.08 mm 节距, F型 C2等级, 3 行 z/b/d, 直角 DIN 41612 插头, 焊接端接

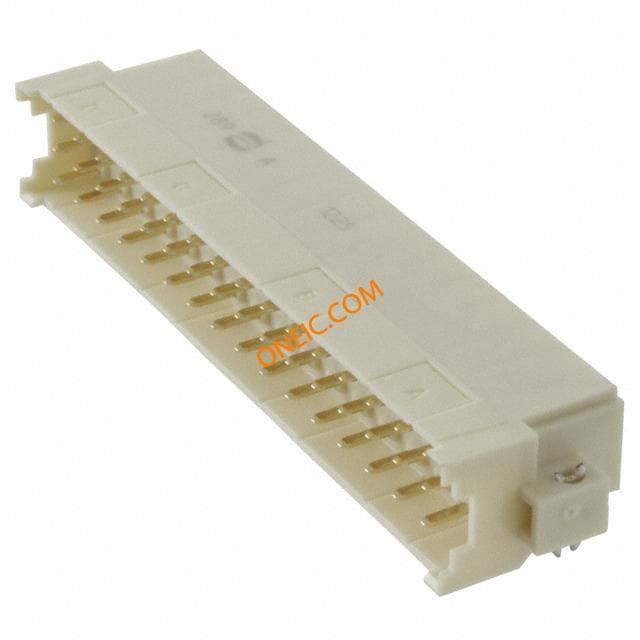

09063486951
HARTING
DIN 41612 Connectors DIN-POWER F048MR-3,0C1-2-CLIP DIN-POWER F048MR-3,0C1-2-CLIP

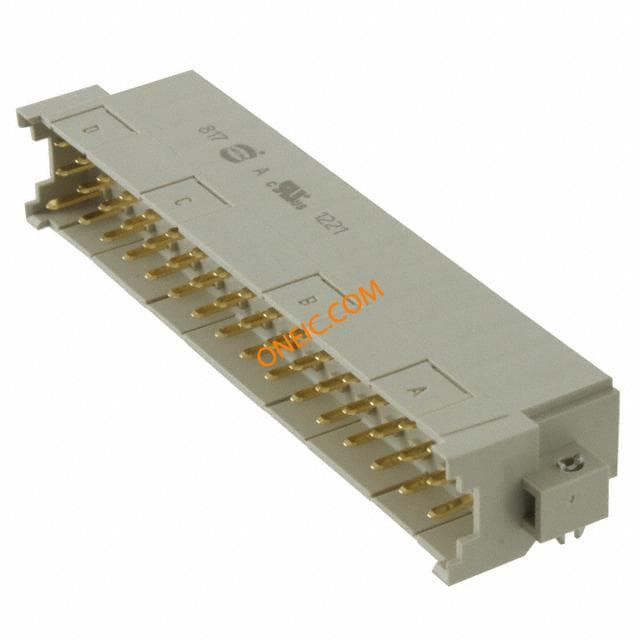

09063486921
HARTING
DIN 41612 Connectors DIN-POWER V1-CLIP F048MS-3,0C1-2 DIN-POWER F048MS-3,0C1-2-V1-CLIP

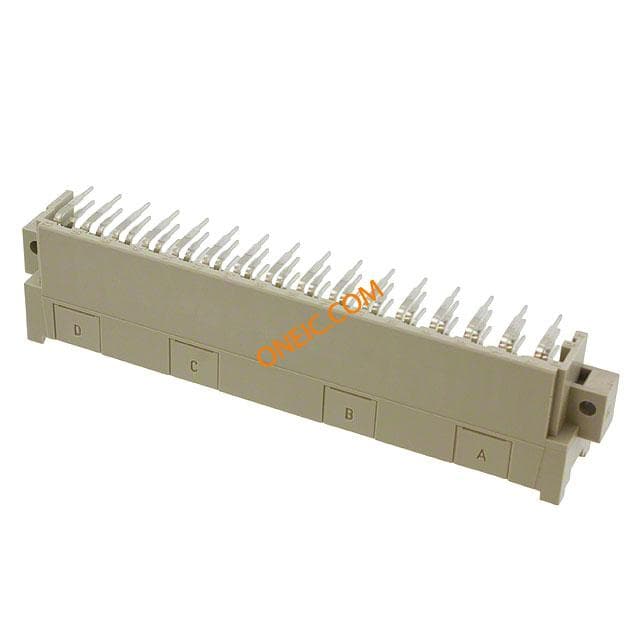

09061482901
Harting Technology Group
Conn Shrouded Header M 48 POS 5.08mm Solder RA Thru-Hole DIN 41612 Connectors F male DIN-POWER F048MS-3,0C1-1 Connector DIN-Power solder 48-way m ConnectorDIN-Powersolder48-waym Harting 09 06 系列 48 路 2.54 mm, 5.08 mm 节距, F型 C1等级, 3 行 z/b/d, 直角 DIN 41612 插头, 焊接端接

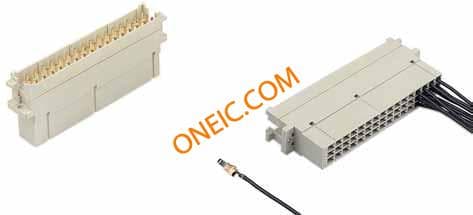

09060482906
Harting Technology Group
Conn DIN 41612 F 48 POS 5.08mm Crimp ST Cable Mount DIN 41612 Connectors 48P 6A FEMALE CBLMNT ORDER CONTACTS SEP. DIN-POWER F48MW-C1-1 Connector DIN-Power crimp 48-way ConnectorDIN-Powercrimp48-way Harting 09 06 系列 48 路 5.08mm 节距, F型 C1等级, 3 行 a/b/c 直向 DIN 连接器 插头, 压接端接

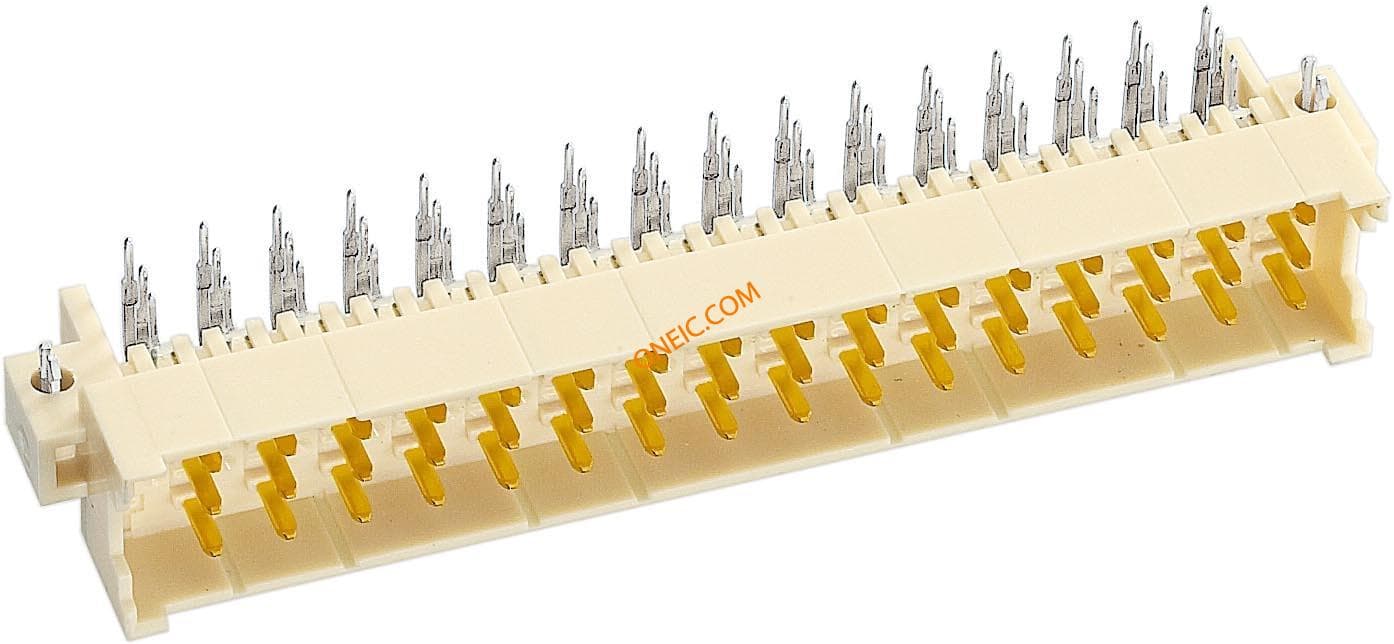

09061482935
Harting Technology Group
F MALE DIN 41612 Connectors DIN PWR F048MS-3 0C1-1-V48 DIN-POWER F048MS-3,0C1-1-V48 Connector DIN-Power solder 48-way m ConnectorDIN-Powersolder48-waym Harting 09 06 系列 48 路 2.54mm 节距, F型, 3 行, 直角 DIN 41612 插头, 焊接端接

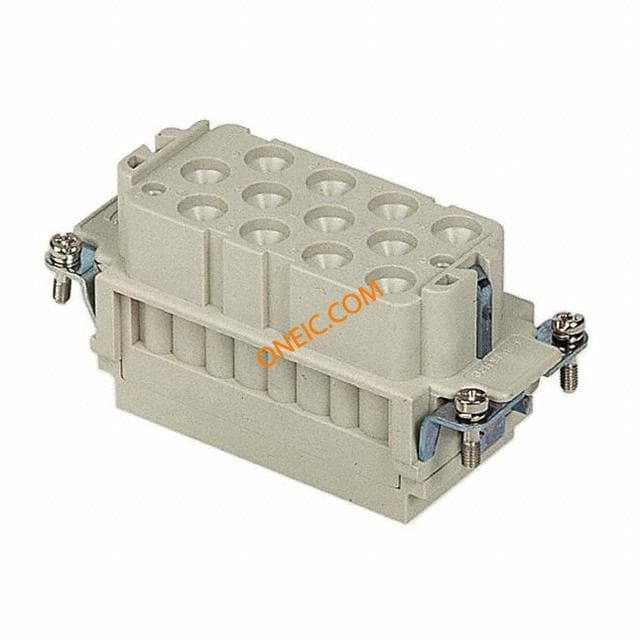

09320123101
Harting Technology Group
Conn Rectangular F 14 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN K 12+2P 16B FEM ORDER CONTACTS SEP HAN HSC 12 POS. FEMALE INSERT Insert; Industrial Power; Standard Material (Insert); Han Com Series Insert,IndustrialPower;StandardMaterial(Insert);HanComSeries Han HSC Female Insert: Han HsC 12 Position Female Insert Harting Han Com 系列 3行 12针 插座 电源连接器

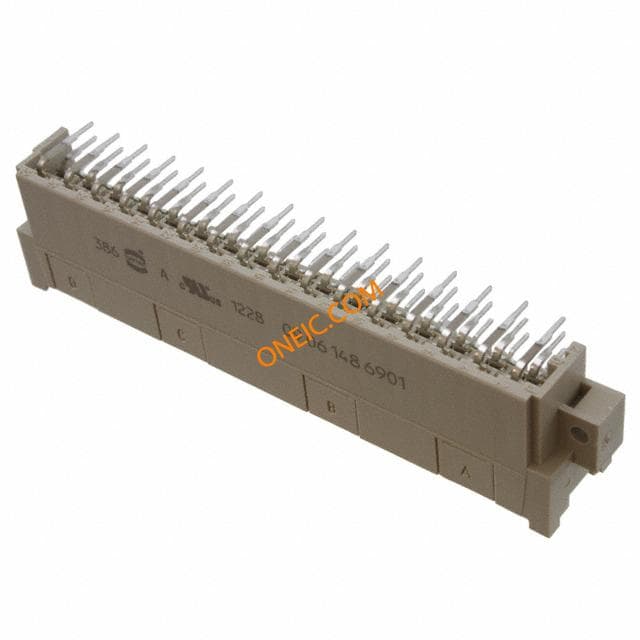

09061486901
