09061487901
| Manufacturer | |

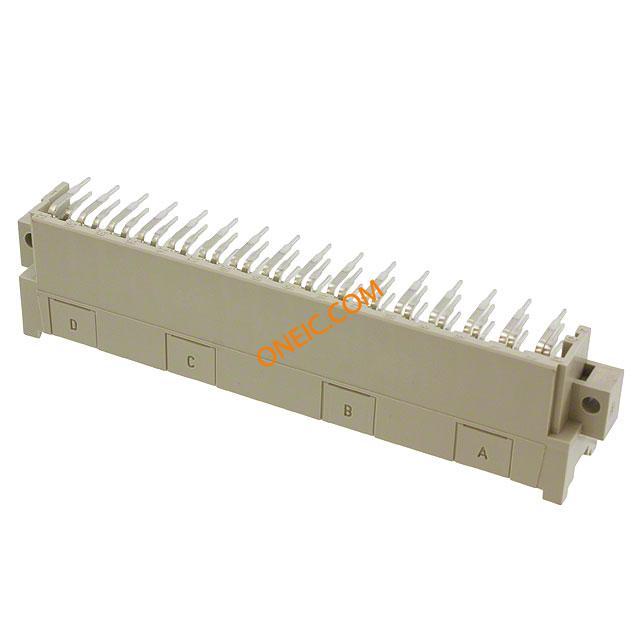

| Description | DIN-POWER F048MS-3,0C1-3 DIN 41612 Connectors DINPWRF048MS-3,0C1-3 |
| Category |
Business
| Part # Aliases | 06 09 09-06-148-7901 148 7901 | Standard Package | 1 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 6 A | ||
Mechanical
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Termination | Solder | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Male Pins | Contact Finish | Gold |
| Number of Rows | 3 | Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Solder |
| Number of Contacts | 48 | Number of Positions | 48 (Power) |
| Material - Insulation | Thermoplastic, Glass Filled | ||
Product Info
| Type | F | Style | F |
| Product Type | Plugs | Number of Positions Loaded | All |
Environmental
| Level, Class | 3 | Operating Temperature | - 55 C to + 125 C |
