09061486901
| Manufacturer | |
| Description | DIN-POWER F048MS-3,0C1-2 DIN 41612 Connectors 48P 6A MALE R/A SLDR 48 way DIN41612 plug Connector;GdsA-DSeries;5mm;87.5mmLx14.8mmWx22.1mmH;48;IEC Socket; DIN 41612,type F; male; PIN:48; d+b+z; THT; angled 90° Harting 48 路 5.08mm 节距, F型 C2等级, 3 行 z/b/d, 直角 DIN 41612 插头, 焊接端接 |
| Category |
Business
| Part # Aliases | 06 09 09-06-148-6901 148 6901 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 6A | ||
Mechanical
| Pitch | 0.200" (5.08mm) | Weight | 0.03 kg |
| Packaging | Bulk | Orientation | angled 90° |
| Termination | Solder | Lead Spacing | len. 3mm |
| Length - Tail | 3 mm | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Male Pins | Contact Finish | Gold over Palladium Nickel |
| Number of Rows | 3 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Package Quantity | 11 |
| Termination Rows | 焊接 | Connector - Cable | socket |
| Termination Style | Solder Pin | Number of Contacts | 48 |
| Number of Positions | 48 (Power) | Material - Insulation | Thermoplastic, Glass Filled |
| Contact Material - Plating | gold plated | Material - Housing & Prism | thermoplastic |
| 1st Connector Mounting Feature | d+b+z | ||
Product Info
| Spg | 11 | Type | F |
| Style | F | Gender | Male |
| Series | 9 | CAD Drawing | 3D CAD Model |
| Number of Units | 1 | Outlet Types and Quantity | Z/b/d |
| Number of Positions Loaded | All | ||
Environmental
| Ratings | C2 | Level, Class | 2 |
| Mechanical Life | 400cycles | Operating Temperature | -55...125°C |
Documents & Media
Similar Parts
09062486833
Harting Technology Group
Conn Backplane F 48 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors FLOW048FS-3,2C1-2 DIN POWER DIN-POWER FLOW048FS-3,2C1-2 Connector DIN-Power Flow solder 48-way f ConnectorDIN-PowerFlowsolder48-wayf Harting 09 06 系列 48 路 3.81 mm, 5.08 mm 节距, F型 C2等级, 3 行 z/b/d 直向 DIN 41612 插座, 焊接端接
09062486836
Harting Technology Group
Conn DIN 41612 F 48 POS 5.08mm Solder RA Thru-Hole DIN 41612 Connectors DIN-POWER F048FS-3,0C1-2 DIN-POWER F048FS-3,0C1-2 Connector DIN-Power solder 48-way f ConnectorDIN-Powersolder48-wayf Harting 09 06 系列 48 路 5.08mm 节距, F型 C2等级, 3 行 z/b/d, 直角 DIN 41612 插座, 焊接端接
09062486826
Harting Technology Group
Conn Backplane F 48 POS 5.08mm Solder RA SMD/Thru-Hole DIN 41612 Connectors 48P TYPE F FEMALE INVERSE 5.08MM DIN-POWER F048FS-3,0C1-2
09060009907
Harting Technology Group
Connector Accessories Male Connector Left Fixing Bracket DIN 41612 Connectors LEFT FIXING BRKT TYPE MH FOR MALE DIN-POWER FIXING BRACKET B LEFT FixingBracket;Fixing;Male;WithoutHousing;RoHSCompliant Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器

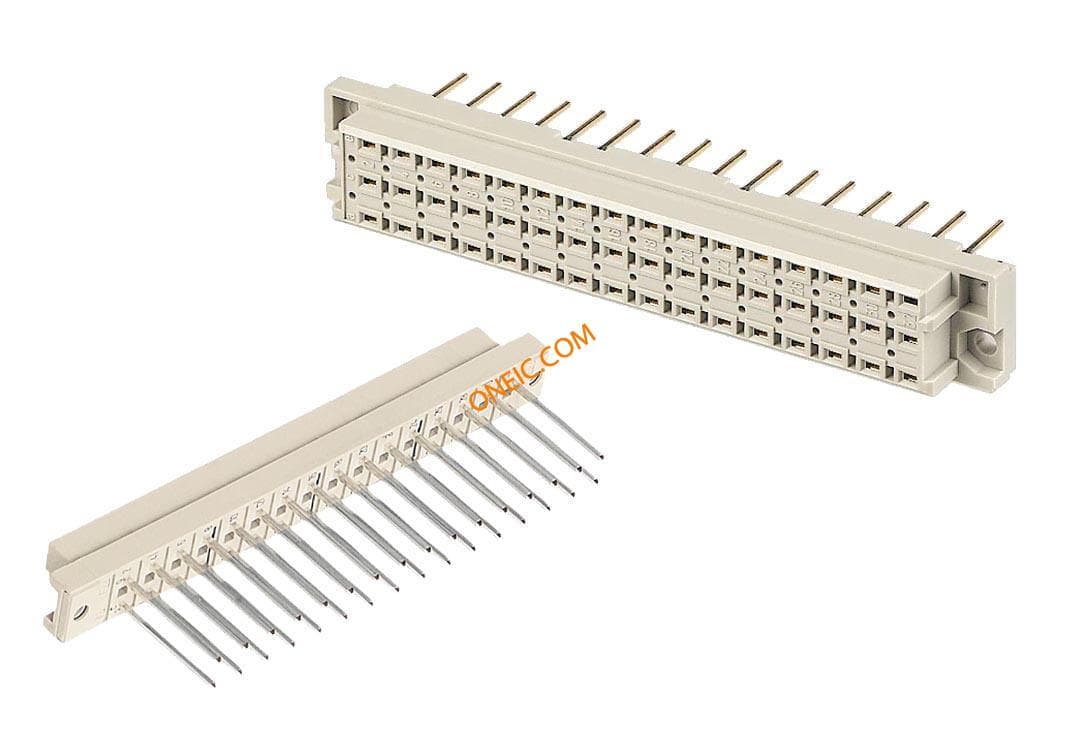

09062486848
Harting Technology Group
Conn DIN 41612 F 48 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors DINPWRF048FS-3,7C1-2 DIN-POWER F048FS-3,7C1-2
09060009908
Harting Technology Group
Connector Accessories Male Connector Right Fixing Bracket DIN 41612 Connectors RIGHT FIXING BRKT TYPE MH FOR MALE DIN-POWER FIXING BRACKET B RIGHT FixingBracket;Fixing;Male;WithoutHousing;RoHSCompliant Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器
09062486835
Harting Technology Group
Conn DIN 41612 F 48 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors 48P 6A FEMALE STRT DIN-POWER F048FS-4,5C1-2 Plug; DIN 41612,type F; female; PIN:48; d+b+z; THT; straight; 6A Harting 48 路 5.08mm 节距 C2等级, 3 行 z/b/d 直向 DIN 41612 插座, 焊接端接
09062486834
Harting Technology Group
Conn DIN 41612 F 48 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors 48P 6A FEMALE STRT DIN-POWER FLOW048FS-4,5C1-2 41612FBODY LOWPROF SK Harting 48 路 5.08mm 节距, 3 行 直向 DIN 41612 插座, 焊接端接

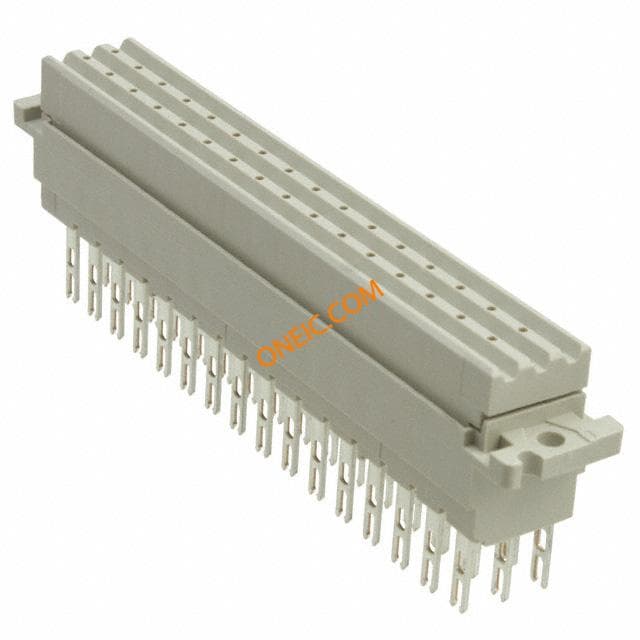

09062486823
Harting Technology Group
Conn DIN 41612 F 48 POS 5.08mm Solder ST Panel Mount DIN 41612 Connectors 48P TYPE F FEMALE SOLDER LUG DIN-POWER F048FL-9,0C1-2 48 way DIN41612 solder lug socket Plug; DIN 41612,type F; female; PIN:48; d+b+z; for cable; straight Harting 48 路 5.08mm 节距, F型 C2等级, 3 行 z/b/d 直向 DIN 41612 插座, 焊接端接
09060009909
Harting
DIN-POWER FIXING BRACKET BL 15MM DIN 41612 Connectors FIXING BRKT LEFT TYPE MH STANDARD Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器
09060009910
Harting
DIN-POWER FIXING BRACKET BR 15MM DIN 41612 Connectors FIXING BRKT RIGHT TYPE MH STANDARD Fixing element; right sale Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器

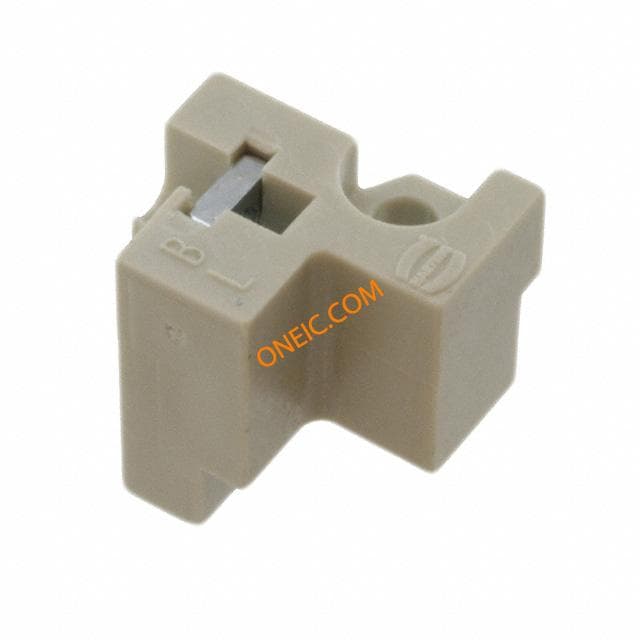

09060009966
Harting
DIN-POWER FIXING BRACKET B LEFT DIN 41612 Connectors DIN PWR FIXING BRKT B LT Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器

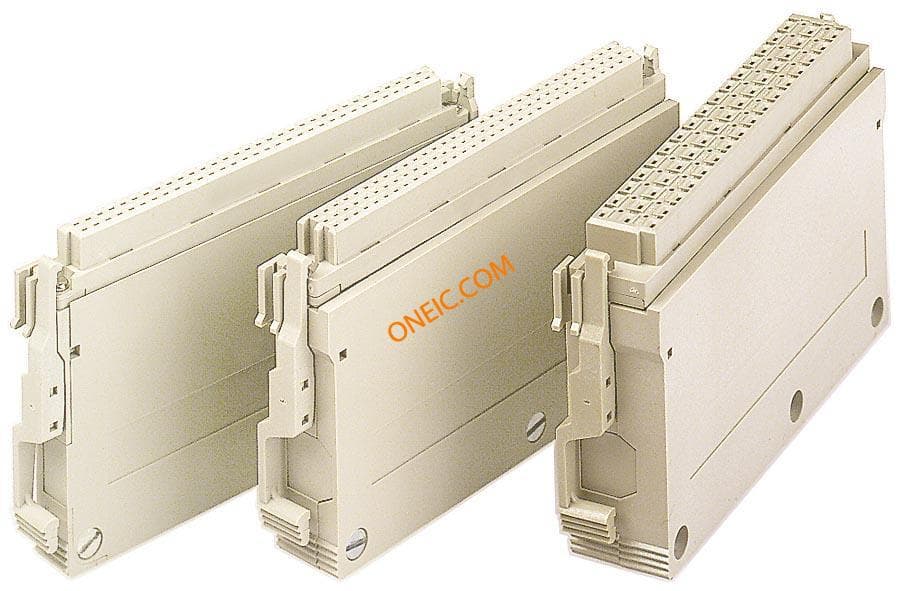

09060009967
Harting
DIN-POWER FIXING BRACKET B RIGHT DIN 41612 Connectors DIN PWR FIXING BRKT B RT Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器

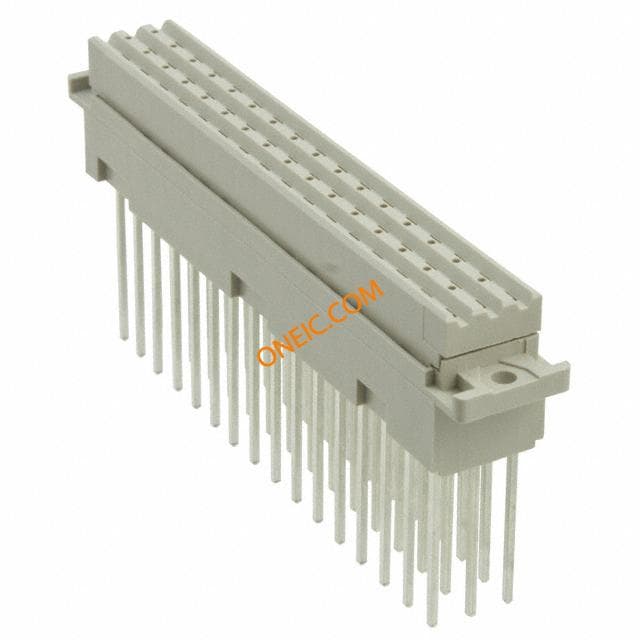

09062486821
